APM Optimisation Script
Problem this snippet solves: With the current Covid-19 lockdown, many workers are now working from home which is putting stress on existing APM VPN devices. This script looks through the config and suggests some changes to be made to reduce CPU usage, based on https://support.f5.com/csp/article/K46161759 Matthieu Dierick has created a YouTube video showing how to use this at https://youtu.be/F0Z1AnM3L54 Let me know if you have any questions or requirements. Source code is held at https://github.com/pwhitef5/apm-vpn-optimisation/tree/master How to use this snippet: Copy the file to the /var/tmp directory as apm-optimisation Give it permissions with `chmod +x /var/tmp/apm-optimisation` Run with `/var/tmp/apm-optimisation`. Output is to stdout Example: [root@apm-1:Active:Standalone] ~ # ./apm-optimisation APM Optimisation Visibility CPU Usage -------------------------------- Current Average Maximum 52% 30% 93% -------------------------------- Compression -------------------------------- Licensed Hardware unlimited None -------------------------------- --- Partition /Common --- Connectivity Profile Compression -------------------------------- Profile Name Status -------------------------------- myConnectivity Disabled myConnectivity2 Disabled -------------------------------- Network Access Profile Compression ----------------------------------------------------------------------------------------------------------- Name | Compression | Split-Tunneling | Client Traffic Classifier | DTLS ----------------------------------------------------------------------------------------------------------- networkAccess | Enabled | Enabled | Disabled | Enabled networkAccess2 | Disabled | Enabled | Disabled | Disabled ----------------------------------------------------------------------------------------------------------- --- Optimisation Suggestions --- - CPU rate is LOW. Go down the Winchester and wait for it all to blow over - Hardware Compression is not included so consider turning off the feature ------- Partition /Common ------- - To turn off compression in the connectivity profile, run the command 'tmsh modify apm profile connectivity /Common/myConnectivity compression disabled' - To turn off compression in the NA profile, run the command 'tmsh modify apm resource network-access /Common/networkAccess compression none' - To turn on Client Traffic Classifier, run the commands below: tmsh create apm resource client-rate-class /Common/rate_class_2M { rate 2000000 } tmsh create apm resource client-rate-class /Common/rate_class_1M { rate 1000000 } tmsh create apm resource client-traffic-classifier /Common/client-traffic-classifier-1 { entries add { entry { client-rate-class rate_class_1M dst-ip any dst-mask any dst-port https src-ip any src-mask any } } } tmsh modify apm resource network-access /Common/networkAccess client-traffic-classifier client-traffic-classifier-1 - Network Access profile /Common/networkAccess is using SNAT automap. Consider using a SNAT pool - To turn on Client Traffic Classifier, run the commands below: tmsh create apm resource client-rate-class /Common/rate_class_2M { rate 2000000 } tmsh create apm resource client-rate-class /Common/rate_class_1M { rate 1000000 } tmsh create apm resource client-traffic-classifier /Common/client-traffic-classifier-1 { entries add { entry { client-rate-class rate_class_1M dst-ip any dst-mask any dst-port https src-ip any src-mask any } } } tmsh modify apm resource network-access /Common/networkAccess2 client-traffic-classifier client-traffic-classifier-1 - To turn on DTLS, create a duplicate virtual server listening on UDP and enabled DTLS in the Network Access List Network Settings ( see https://devcentral.f5.com/s/articles/APM-DTLS-Virtual-Server-iApp ) - Network Access profile /Common/networkAccess2 is using SNAT automap. Consider using a SNAT pool ----------------------------------------------------------------------------------------------------------- Code : #!/bin/bash # Version 5 8/4/2020 P.White # This is a script to check your APM system and give suggestions to reduce CPU usage # Taken from suggestions at https://support.f5.com/csp/article/K46161759 # v2 - small typo fix line 119 create changed to modify # v3 - updated classifier to only include https as it was causing an error # v4 - loops through admin partitions and prints out for each # v5 - added DTLS check and suggestion suggestions="--- Optimisation Suggestions ---\n" getLicensedCompression () { # Show the licensed compression comp=`tmsh -q show sys license detail|grep perf_http_compression|awk '{print $2}'|sed 's/\[\(.*\)\]/\1/g'` if [ x$comp != "x" ];then echo -n "$comp" else echo -n "Error!" fi } getHardwareCompression () { # Show hardware compression hcomp=`tmsh -q show sys license detail|grep "HTTP Hardware Compression"` if [ x$hcomp = "x" ];then # Hardware compression is not enabled echo -n "None" else echo -n "$hcomp" fi } clear echo "APM Optimisation Visibility" # CPU usage cur=`tmsh -q show sys cpu |grep "Utilization"|awk '{print $2}'` avg=`tmsh -q show sys cpu |grep "Utilization"|awk '{print $3}'` max=`tmsh -q show sys cpu |grep "Utilization"|awk '{print $4}'` if [ $avg -gt 90 ];then suggestions+=" - CPU rate is VERY HIGH! Turn off compression, implement split tunneling and consider more processing\n" elif [ $avg -gt 60 ];then suggestions+=" - CPU rate is HIGH! Turn off compression and consider split tunneling for non-internal traffic\n" elif [ $avg -gt 40 ];then suggestions+=" - CPU rate is MEDIUM. Consider turning off compression where required\n" else suggestions+=" - CPU rate is LOW. Go down the Winchester and wait for it all to blow over\n" fi echo echo "CPU Usage" echo "--------------------------------" echo -e "Current\tAverage\tMaximum" echo -e "$cur%\t$avg%\t$max%" echo "--------------------------------" echo # Compression clic=`getLicensedCompression` chw=`getHardwareCompression` if [ $chw = "None" ];then suggestions+=" - Hardware Compression is not included so consider turning off the feature\n" fi echo "Compression" echo "--------------------------------" echo -e "Licensed\tHardware" echo -e "$clic\t$chw" echo "--------------------------------" # loop through adminstrative partitions for partition in `tmsh -q list auth partition one-line|awk '{print $3}'`;do suggestions+="\n------- Partition /$partition -------\n" echo " --- Partition /$partition ---" echo echo "Connectivity Profile Compression" echo "--------------------------------" echo -e "Profile Name\t\tStatus" echo "--------------------------------" for profile in `tmsh -q -c "cd /$partition;list apm profile connectivity one-line"|awk '{print $4}'`;do if [ $profile = "connectivity" ];then continue fi if [ `tmsh -q -c "cd /$partition;list apm profile connectivity $profile one-line"|grep "compress-gzip-level 0"|wc -l` -gt 0 ];then echo -e "$profile\t\tDisabled" else suggestions+=" - To turn off compression in the connectivity profile, run the command 'tmsh modify apm profile connectivity /$partition/$profile compress-gzip-level 0'\n" echo -e "$profile\t\tEnabled" fi done echo "--------------------------------" echo echo "Network Access Profile Compression" echo "-----------------------------------------------------------------------------------------------------------" echo -e " Name\t\t\t| Compression\t| Split-Tunneling\t| Client Traffic Classifier\t| DTLS" echo "-----------------------------------------------------------------------------------------------------------" for profile in `tmsh -q -c "cd /$partition;list apm resource network-access one-line"|awk '{print $4}'`;do # Compression if [ `tmsh -q -c "cd /$partition;list apm resource network-access $profile one-line"|grep "compression gzip"|wc -l` -gt 0 ];then echo -en "$profile\t\t| Enabled" suggestions+=" - To turn off compression in the NA profile, run the command 'tmsh modify apm resource network-access /$partition/$profile compression none'\n" else echo -en "$profile\t\t| Disabled" fi if [ `tmsh -q -c "cd /$partition;list apm resource network-access $profile one-line"|grep "split-tunneling true"|wc -l` -gt 0 ];then echo -en "\t| Enabled" else echo -en "\t| Disabled" suggestions+=" - To turn on split-tunneling, run the command 'tmsh modify apm resource network-access /$partition/$profile split-tunneling true'\n" suggestions+=" - To configure split-tunneling exclude traffic by DNS name, run the command 'tmsh modify apm resource network-access /$partition/$profile address-space-exclude-dns-name add { office.com microsoftonline.com google.com gmail.com facebook.com }'\n" suggestions+=" - To configure split-tunneling exclude traffic by IP address, run the command 'tmsh modify apm resource network-access /$partition/$profile address-space-include-subnet add { { subnet 10.0.0.0/8 } { subnet 172.16.0.0/16 } { subnet 192.168.0.0/16 } }'\n" fi if [ `tmsh -q -c "cd /$partition;list apm resource network-access $profile one-line"|grep "client-traffic-classifier "|wc -l` -gt 0 ];then echo -en "\t\t| Enabled" else echo -en "\t\t| Disabled" suggestions+=" - To turn on Client Traffic Classifier, run the commands below:\n" suggestions+="tmsh create apm resource client-rate-class /$partition/rate_class_2M { rate 2000000 }\n" suggestions+="tmsh create apm resource client-rate-class /$partition/rate_class_1M { rate 1000000 }\n" suggestions+="tmsh create apm resource client-traffic-classifier /$partition/client-traffic-classifier-1 { entries add { entry { client-rate-class rate_class_1M dst-ip any dst-mask any dst-port https src-ip any src-mask any } } }\n" suggestions+="tmsh modify apm resource network-access /$partition/$profile client-traffic-classifier client-traffic-classifier-1\n" fi if [ `tmsh -q -c "cd /$partition;list apm resource network-access $profile one-line"|grep "dtls true"|wc -l` -gt 0 ];then echo -en "\t\t\t| Enabled" else echo -en "\t\t\t| Disabled" suggestions+=" - To turn on DTLS, create a duplicate virtual server listening on UDP and enabled DTLS in the Network Access List Network Settings ( see https://devcentral.f5.com/s/articles/APM-DTLS-Virtual-Server-iApp )\n" fi # Check for SNAT automap if [ `tmsh -q -c "cd /$partition;list apm resource network-access $profile one-line all-properties"|grep "snat automap"|wc -l` -gt 0 ];then suggestions+=" - Network Access profile /$partition/$profile is using SNAT automap. Consider using a SNAT pool\n" fi echo "" done echo "-----------------------------------------------------------------------------------------------------------" # Check VSs for mirroring for vs in `tmsh list ltm virtual one-line|awk '{print $3}'`;do if [ `tmsh -q -c "cd /$partition;list ltm virtual $vs mirror"|grep "mirror enabled"|wc -l` -gt 0 ];then echo echo "WARNING! Virtual Server /$partition/$vs has mirroring enabled\n" echo suggestions+="Consider disabling Connection Mirroring for virtual server /$partition/$vs with the command 'tmsh modify ltm virtual /$partition/$vs mirror disabled'\n" fi done done echo echo -e "$suggestions" echo "-----------------------------------------------------------------------------------------------------------" Tested this on version: 13.02.5KViews6likes5CommentsAPM Kerberos Auth or fallback to another authentication method
Problem this snippet solves: This iRule can be used when it is required to offer both Kerberos authentication and for example SAML or another authentication method in a mixed environment for devices that are domain joined and devices that are not domain joined. This iRule uses javascript and HTML5 Web Workers to determine if the browser can successfully authenticate by using Kerberos or will need to fallback to another authentication method. I've been testing this iRule with Internet Explorer, Edge, Firefox and Chrome. All these browsers seem to be working fine. Only Chrome seems to do things a bit differently and is showing a login prompt for a split second, but it's working. How to use this snippet: The screenshot below shows an example of an Access Policy that uses either Kerberos or SAML authentication. The first agent in the policy is an 'Empty Agent' which will read the session.custom.domainjoined variable to determine which authentication method to use. The session.custom.domainjoined variable is set by the kerberos_auth_or_fallback_auth iRule. Tested this on version: 13.0 Link to iRule https://github.com/nvansluis/f5.kerberos_auth_or_fallback_auth721Views1like0CommentsAPM Customization: Password Change Validation

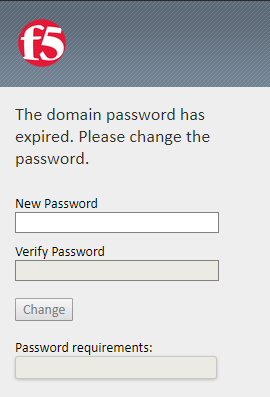

Problem this snippet solves: When an user is prompted to change the password, the user will be instructed to choose a password that matches your password policy. See the screenshots below. This updated version uses a progress bar instead of showing the requirements directly on the page. This should give some more protection against shoulder surfing. Please note that this code snippet will only customize the look-and-feel of the APM portal. It will *not* enforce a password security policy. The password policy should be enforced on the backend authentication server (active directory). Screenshot 1 - A password requirement progress bar is shown. Screenshot 2 - While typing the progress bar will grow towards 100% if the required character types are being used. Screenshot 3 - If you wonder why your new password doesn't meet the requirements, you can move your mouse over the progress bar to find out why. Screenshot 4 - When you meet the requirements, you must retype the password for validation. The progress bar will become green when both passwords match. Move your mouse over the progress bar to get more info. Screenshot 5 - All set, let's change the password. How to use this snippet: Use the F5 APM Advanced Customization Editor and reference this script from Common > footer.inc For example: Tested this on version: 13.0 Link to iRule https://github.com/nvansluis/f5.password_change_validation1.1KViews1like3CommentsTransparent Kerberos Authentication and APM fallback authentication
Problem this snippet solves: This iRule can be used when it is required to offer both Kerberos authentication (transparent, non-APM) and for example SAML or another APM authentication method in a mixed environment for devices that are domain joined and devices that are not domain joined. This iRule uses javascript and HTML5 Web Workers to determine if the browser can successfully authenticate by using Kerberos or will need to fallback to another authentication method. I've been testing this iRule with Internet Explorer, Edge, Firefox and Chrome. All these browsers seem to be working fine. Only Chrome seems to do things a bit differently and is showing a login prompt for a split second, but it's working. How to use this snippet: Create a Virtual Server that delivers a webserver that uses Kerberos Authentication. Create APM Access Policy that will perform the fallback authentication. Add this iRule to the Virtual Server that holds the APM access policy to perform the fallback authentication. Tested this on version: 13.0 Location of iRule https://github.com/nvansluis/f5.transparent_kerberos_auth_or_apm_authentication813Views0likes2CommentsBypass Azure Login Page by adding a login hint in the SAML Request
Problem this snippet solves: Enhance the login experience between F5 (SAML SP) and Azure (SAML IDP) by injecting the "email address" as a login hint on behalf of the user. This enhances the user experience because it allows to bypass the Azure Login Page and avoids the user to type two times his login/email address. Example of use Your application need to be accessed by both "domain users" and "federated users". Your application is protected by the F5 APM with a "Login Page" that asks for the user "email address". Based on the "email address" value you determine the domain: if the user is a "domain user", you authenticate him on the local directory (AD Auth, LDAP Auth or ...) if the user is a "federated user" (such as xxx@gmail.com), you send him to the Azure IDP that will manage all federated access This snippet is particularly interesting for the "federated user" scenario because: without this code, a "federated user" will need to type his "login" twice. First time on "F5 Login Page" and the second time on "Azure Login Page" with this code, a "federated user" will need to type his "login" only on the F5 Login Page How to use this snippet: Go to "Access > Federation > SAML Service Provider > External IDP Connectors" and edit the "External IdP Connectors" object that match with the Azure IDP app. On the "Single Sign On Service Settings" add at the end of the "Single Sign On Service URL" the following string "?login_hint=" as shown in the picture below. The string "?login_hint=" is added here only to be able to uniquely identify it later by the iRule and replaced it. 3. Finally, apply the iRule below on the VS that has the Access Policy enabled and for which the SAML SP role is attributed and is binded to the Azure IDP application. The iRule will simply catch the "Single Sign On Service URL" and replace it with "?login_hint=xxxx@gmail.com". Code : when CLIENT_ACCEPTED { ACCESS::restrict_irule_events disable } when HTTP_RESPONSE_RELEASE { if { [string tolower [HTTP::header value "Location"]] contains "/saml2/?login_hint="} { set user_login [ACCESS::session data get "session.logon.last.mail"] #log local0. "Before adding the hint [HTTP::header value "Location"]" set locationWithoutHint "?login_hint=" set locationWithHint "?login_hint=$user_login" HTTP::header replace Location [string map -nocase "${locationWithoutHint} ${locationWithHint}" [HTTP::header Location]] #log local0. "After adding the hint [HTTP::header value "Location"]" } } Tested this on version: No Version Found4.8KViews1like5CommentsAPM (& LTM) Session & Cookie Information - Chrome Extension
Problem this snippet solves: If you've ever troubleshooted APM Portal Access issues, you know how annoying it can be to find the decoded internal url. Note: This extension has been updated as more of an APM and LTM extension as opposed to just an APM one. This chrome extension seeks to make that quick and easy by showing the decoded information. It will also display the cookies for that site (including the ever-useful MRHSession and LastMRH_Session cookies) and allows you to delete cookies directly from the extension (useful for testing session timeout if you delete the MRHSession cookie). Version History 1.1 - Initial version Includes APM portal access decoded url information 1.2 - 2016.04.01 Added list of cookies associated with the current site (shows cookie name, domain and value) 1.3 - 2016.04.25 Added ability to delete cookies from the extension for the site (Known Issue: if you have multiple cookies with the same name that match the page, deleting one will delete all of them) Added decoded BIG-IP persistence cookie value in parenthesis to the list for quicker reference 1.4 - 2016.06.30 Rebuilt the popup page using AngularJS Introduced (but still disabled) options page and client-side functionality (will need iRules development as well) 1.5 - 2016.09.07 Enabled the options page again, and finished code to allow the extension to add a header to requests on specific domains (user specified) 1.5.1 - 2016.09.18 Updated the icon, and removed APM and replaced with debugging icon since this has morphed to APM and LTM usefulness 1.6 - 2016.12.19 Now enables the extension when it determines a persistence cookie (based on value format) Added a link that will popup APM session details (when management url specified in options page) (Note: must be logged into the management GUI already or else it won't redirect properly). Used alongside my APM Tampermonkey script you can see the session variables as well as the session detail 1.7 - 2017.09.03 Added local tracking of sites that appear to use F5 BigIP How to use this snippet: As Chrome doesn't really like unpublished extensions, and it's not in the Chrome App Store (yet), you'll have to install the extension in Developer Mode. Instructions Navigate to chrome://extensions Ensure that the Developer mode checkbox is enabled Sub-Method 1: Load unpacked extension (preferred method) Download all the code from the Github repository Click the Load unpacked extension button and select the src folder Sub-Method 2: Load the crx file (may not always be current) Download the crx from the Github repository From the file system, click and drag the .crx file onto the extension page to install it Code : https://github.com/jangins101/F5-APM-Session-Information Tested this on version: 11.5770Views0likes0CommentsAPM Full Step Up Authentication

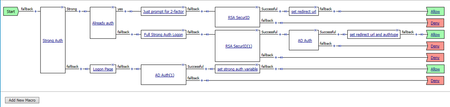

Problem this snippet solves: By default, APM is not able to handle several authentication during a session. Once you are logged in, it’s finished, you can’t ask for authentication again. Since v12.1.0, we can see a new feature in EA called “Step-up Authentication” and the introduction of subroutines that is currently limited to ldap authentication or a confirm box. The irule and configuration below allow the administrator to define 2 levels of authentication based on URIs. The concept can be extended to have multiple authentication levels. This concept can be extended to define several Level of authentication. You can also change the element that trigger the additionnal authentication process. How to use this snippet: Installation irule To make it works, you need to install the irule on the Virtual Server that publish your application with APM authentication. datagroup You need to create a datagroup of string type. This dg must contains http path that need an additional authentication step. The dg is named loa3_uri in the irule example. access profile If you already have an existing access profile, you will need to modify it and include some additionnal configuration in your VPE. If you have no access profile, you can starts building your own based on the description we provide below. Scenarios 1) User try to reach strong uri after first authentication process In this scenario, the user first authenticate using a standard authentication mecanism. Once authenticated, if the user request content that is behing strong uris, the user restart an authentication process in the "Strong Auth" and "Already Auth" branch of the VPE. 2) User try to reach strong uri during the first authentication process If the user try to access a strong uri on its first attempt, he will need to complete the full authentication process. Then, he can access every part of the web application without any additional prompt. Special considerations Client certificate Authentication You may need to use Client certificate authentication as a primary factor or second factor. We highly recommend to use "SSl on-demand authentication" if you need it as primary factor. Client Certificate is not supported as a second factor, you need to use SSl on-demand authentication. WebSSO When first authentication has already been allowed and the user try to access a protected uri, the system will invite the user to complete the new authentication (second factor). This process will restart a webSSO action on the backend. Basic, NTLM and Kerberos webSSO have been tested with success. Configuring the Visual Policy Editor The printscreen below is a minimal Visual Policy Editor used to make Step up Authentication works properly : Strong Auth The strong Auth block is an "Empty Action" with two branch. The branch named "Strong" contains the following condition : expr { [mcget {session.server.landinguri}] starts_with "/strong" || [mcget {session.custom.last.strong}] == 1 } We check that the uri starts with strong (used in scenario 1) or if a custom variable is set to 1 (second scenario) Already Auth This is an empty action with two branch. The branch named "yes" contains the following expression : expr { [mcget {session.custom.last.authresult}] contains "true" } 2-factor Ending session.custom.last.authtype variable must be set to 1 session.policy.result.redirect.url must be changed. The session.server.landinguri contains the true origin uri. To set this variable, you must use the tcl script below : proc urldecode str { variable map variable alphanumeric a-zA-Z0-9 for {set i 0} {$i <= 256} {incr i} { set c [format %c $i] if {![string match \[$alphanumeric\] $c]} { set map($c) %[format %.2x $i] } } array set map { " " + \n %0d%0a } set str [string map [list + { } "\\" "\\\\"] $str] regsub -all -- {%([A-Fa-f0-9][A-Fa-f0-9])} $str {\\u00\1} str return [subst -novar -nocommand $str] } set decoded_uri [urldecode [string range [mcget {session.server.landinguri}] [expr { [string last = [mcget {session.server.landinguri}]] + 1 }] end]] return $decoded_uri Full strong Ending session.custom.last.authtype variable must be set to 1 Standard Ending session.custom.last.authtype variable must be set to 0 Session variables The following variables can be used in the 2-factor section of the Visual Policy Editor : session.custom.last.username session.custom.last.password Features 2-step authentication Retrieve username and password from first authentication Encrypt Session1 cookie to avoid session Hijacking External links Github : https://github.com/e-XpertSolutions/f5 Code : when RULE_INIT { # to be changed prior to any publishing set passphrase "hEuoYjmFUpB4PcpO3bUdQtLP4ic7jjm" } when HTTP_REQUEST { if { [HTTP::cookie exists MRHSession] and [ACCESS::session exists -state_allow -sid [HTTP::cookie MRHSession]] } { set strong_auth [ACCESS::session data get session.custom.last.authtype] if { [class match [HTTP::path] starts_with loa3_uri] and $strong_auth == 0 } { HTTP::cookie encrypt "MRHSession" $passphrase HTTP::respond 302 noserver "Location" "/strong?return_url=[URI::encode [HTTP::uri]]" "Cache-Control" "no-cache, must-revalidate" Set-Cookie "MRHSession=deleted;expires=Thu, 01-Jan-1970 00:00:10 GMT;path=/" Set-Cookie "LastMRH_Session=deleted;expires=Thu, 01-Jan-1970 00:00:10 GMT;path=/" Set-Cookie "Session1=[HTTP::cookie MRHSession];path=/" } } } when ACCESS_SESSION_STARTED { # decrypt Session1 cookie value set decrypted [HTTP::cookie decrypt "Session1" $passphrase] if { [HTTP::cookie exists Session1] and [ACCESS::session exists -state_allow -sid $decrypted] } { ## section : retrieve session variables from the first session ACCESS::session data set session.custom.last.username [ACCESS::session data get session.logon.last.username -sid $decrypted] ACCESS::session data set session.custom.last.password [ACCESS::session data get session.logon.last.password -sid $decrypted] ## End section ACCESS::session data set session.custom.last.authresult "true" # remove the first created session during standard authentication to avoid multiple active sessions ACCESS::session remove -sid $decrypted } elseif { [class match [HTTP::path] starts_with loa3_uri] } { ACCESS::session data set session.custom.last.strong 1 } } Tested this on version: 11.51.3KViews0likes7CommentsProvision IOS profile for Exchange ActiveSync with client certificate authentication
Problem this snippet solves: If you need to use client certificate authentication for ActiveSync services on IOS, you need to deploy custom profiles through a Mobile Device Management. MDM is maybe a little bit too much to achieve only this feature. The irule below provide necessary materials to provision a certificate and an exchange profile on IOS. Tested successfully on IOS 9. We use SCEP protocol for certificate enrollment. How to use this snippet: You need to define a Virtual Server and an access profile to publish ActiveSync. Then, you need to assign the irule on the Virtual Server. The certificate is retrieved using SCEP protocol on a Microsoft ADCS 2012 R2. The SCEP url should be changed in the Exchange payload. We configured APM to protect the access to this service and retrieve attributes from Active Directory but you can change the irule code to retrieve information and protect the service in a different manner. When a user reach /enroll uri with Safari browser, the provisioning process starts. /!\ I provide an IOS payload as example, but you need to modify it to fit your environment and save it as an ifile. Settings that need to be changed in the xml payload : <string>HOST.DOMAIN.COM</string> : Activesync FQDN <string>DOMAIN-Issuer-CA</string> : Issuing CA Name (if exists otherwise related code should be removed) <data>CERTIFICATE</data> : X.509 certificate in Base64 for Issuing CA <string>DOMAIN-Root-CA</string> : Root CA Name <data>CERTIFICATE</data> : X.509 certificate in Base64 for the Root CA <string>DOMAIN</string> : Organization name to be present in the user certificate <string>http://scep.domain.com/scep</string> : SCEP url External links Github : github.com/e-XpertSolutions/f5 Code : 68654 Tested this on version: 11.5794Views0likes1CommentAPM/Analytics - Log click on webtop resources [serverside]
Problem this snippet solves: When providing VPN SSL portal to the client, you publish several applications like Portal access, Remote Desktop, Webtop links, SAML Resources, Citrix/Vmware VDI, etc. APM log access to the webtop, once connected, there is no more visibility on who click on which icon. We provide Visibility and Analytics capabilities through a simple irule. How to use this snippet: Installation You just need to put this irule in the Virtual Server configuration that handle your access profile. Logging information Clicks are logged in the local0 (ltm logs). You can see below examples : virtual=/Common/test, apm=1239853, user=testuser, resource_type=portal, resourcename=owa virtual=/Common/test, apm=1239853, user=testuser, resource_type=remote_desktop, resourcename=ActiveDirectory Features You can currently log the following application types : Portal access Remote Desktop access The irule provide the additional features : Decode Portal access uri logging of username, apm session and resource name Credits Inspired from an original irule in a reply from Kevin Stewart : Logging for Portal Access External links Github : github.com/e-XpertSolutions/f5 Code : when ACCESS_ACL_ALLOWED { switch -glob [HTTP::uri] { "*resourcetype=remote_desktop*" { # # Basic logging. Remote or local logging settings can be configured # # log local0. "virtual=[virtual], apm=[string range [ACCESS::session sid] [expr [string length [ACCESS::session sid]] - 10] end], user=[ACCESS::session data get session.logon.last.username], resourcetype=remote_desktop, [findstr [HTTP::uri] "resourcename=" 0 "\%"]" # # ACCESS logging before v13.x # log -noname accesscontrol.local1.notice "$static::ACCESS_LOG_PREFIX /Common/ap-ad-auth:Common:$session: virtual=[virtual], apm=[string range [ACCESS::session sid] [expr [string length [ACCESS::session sid]] - 10] end], user=[ACCESS::session data get session.logon.last.username], resourcetype=remote_desktop, [findstr [HTTP::uri] "resourcename=" 0 "\%"]" # # ACCESS::log is available in v13.x. Log saved in Access report too. # # ACCESS::log accesscontrol.notice "virtual=[virtual], apm=[string range [ACCESS::session sid] [expr [string length [ACCESS::session sid]] - 10] end], user=[ACCESS::session data get session.logon.last.username], resourcetype=remote_desktop, [findstr [HTTP::uri] "resourcename=" 0 "\%"]" } "*f5-w-*" { catch { set resource [binary format H* [findstr [HTTP::uri] "/f5-w-" 6 "\$\$"]] if { [table lookup -subtable PORTALACCESS "[ACCESS::session sid]:[ACCESS::session data get session.logon.last.username]:$resource"] eq "" } { table set -subtable PORTALACCESS "[ACCESS::session sid]:[ACCESS::session data get session.logon.last.username]:$resource" [clock format [clock seconds] -format %Y%m%d-%H%M%S] 3600 # # Basic logging. Remote or local logging settings can be configured # # log local0. "virtual=[virtual], apm=[string range [ACCESS::session sid] [expr [string length [ACCESS::session sid]] - 10] end], user=[ACCESS::session data get session.logon.last.username], resource_type=portal, resourcename=$resource" # # ACCESS logging before v13.x # log -noname accesscontrol.local1.notice "$static::ACCESS_LOG_PREFIX /Common/ap-ad-auth:Common:$session: virtual=[virtual], apm=[string range [ACCESS::session sid] [expr [string length [ACCESS::session sid]] - 10] end], user=[ACCESS::session data get session.logon.last.username], resource_type=portal, resourcename=$resource" # # ACCESS::log is available in v13.x. Log saved in Access report too. # # ACCESS::log accesscontrol.notice "virtual=[virtual], apm=[string range [ACCESS::session sid] [expr [string length [ACCESS::session sid]] - 10] end], user=[ACCESS::session data get session.logon.last.username], resource_type=portal, resourcename=$resource" } } } } } Tested this on version: 11.5457Views0likes4Comments
