APM Full Step Up Authentication

Problem this snippet solves:

By default, APM is not able to handle several authentication during a session. Once you are logged in, it’s finished, you can’t ask for authentication again.

Since v12.1.0, we can see a new feature in EA called “Step-up Authentication” and the introduction of subroutines that is currently limited to ldap authentication or a confirm box.

The irule and configuration below allow the administrator to define 2 levels of authentication based on URIs. The concept can be extended to have multiple authentication levels.

This concept can be extended to define several Level of authentication. You can also change the element that trigger the additionnal authentication process.

How to use this snippet:

Installation

irule

To make it works, you need to install the irule on the Virtual Server that publish your application with APM authentication.

datagroup

You need to create a datagroup of string type. This dg must contains http path that need an additional authentication step. The dg is named loa3_uri in the irule example.

access profile

If you already have an existing access profile, you will need to modify it and include some additionnal configuration in your VPE. If you have no access profile, you can starts building your own based on the description we provide below.

Scenarios

1) User try to reach strong uri after first authentication process

In this scenario, the user first authenticate using a standard authentication mecanism. Once authenticated, if the user request content that is behing strong uris, the user restart an authentication process in the "Strong Auth" and "Already Auth" branch of the VPE.

2) User try to reach strong uri during the first authentication process

If the user try to access a strong uri on its first attempt, he will need to complete the full authentication process. Then, he can access every part of the web application without any additional prompt.

Special considerations

Client certificate Authentication

You may need to use Client certificate authentication as a primary factor or second factor. We highly recommend to use "SSl on-demand authentication" if you need it as primary factor. Client Certificate is not supported as a second factor, you need to use SSl on-demand authentication.

WebSSO

When first authentication has already been allowed and the user try to access a protected uri, the system will invite the user to complete the new authentication (second factor). This process will restart a webSSO action on the backend. Basic, NTLM and Kerberos webSSO have been tested with success.

Configuring the Visual Policy Editor

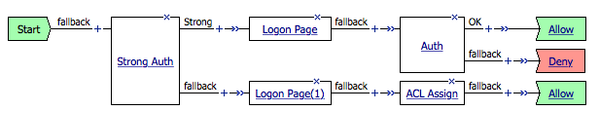

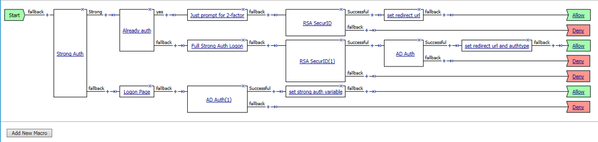

The printscreen below is a minimal Visual Policy Editor used to make Step up Authentication works properly :

Strong Auth

The strong Auth block is an "Empty Action" with two branch.

The branch named "Strong" contains the following condition :

expr { [mcget {session.server.landinguri}] starts_with "/strong" || [mcget {session.custom.last.strong}] == 1 }

We check that the uri starts with strong (used in scenario 1) or if a custom variable is set to 1 (second scenario)

Already Auth

This is an empty action with two branch. The branch named "yes" contains the following expression :

expr { [mcget {session.custom.last.authresult}] contains "true" }

2-factor Ending

session.custom.last.authtype

variable must be set to 1

session.policy.result.redirect.url

must be changed. The

session.server.landinguri

contains the true origin uri.

To set this variable, you must use the tcl script below :

        proc urldecode str {
            variable map
            variable alphanumeric a-zA-Z0-9
            for {set i 0} {$i <= 256} {incr i} {        set c [format %c $i]
                if {![string match \[$alphanumeric\] $c]} {
                    set map($c) %[format %.2x $i]
                }
            }
            array set map { " " + \n %0d%0a }
            set str [string map [list + { } "\\" "\\\\"] $str]
            regsub -all -- {%([A-Fa-f0-9][A-Fa-f0-9])} $str {\\u00\1} str
            return [subst -novar -nocommand $str]
        }
        set decoded_uri [urldecode [string range [mcget {session.server.landinguri}] [expr { [string last = [mcget {session.server.landinguri}]] + 1 }] end]]
        return $decoded_uri

Full strong Ending

session.custom.last.authtype

variable must be set to 1

Standard Ending

session.custom.last.authtype

variable must be set to 0

Session variables

The following variables can be used in the 2-factor section of the Visual Policy Editor :

• session.custom.last.username
• session.custom.last.password

Features

• 2-step authentication
• Retrieve username and password from first authentication
• Encrypt Session1 cookie to avoid session Hijacking

External links

Github : https://github.com/e-XpertSolutions/f5

Code :

when RULE_INIT {
# to be changed prior to any publishing
set passphrase "hEuoYjmFUpB4PcpO3bUdQtLP4ic7jjm"
}

when HTTP_REQUEST  {
if { [HTTP::cookie exists MRHSession] and [ACCESS::session exists -state_allow -sid [HTTP::cookie MRHSession]] } {
set strong_auth [ACCESS::session data get session.custom.last.authtype]
if { [class match [HTTP::path] starts_with loa3_uri] and $strong_auth == 0 } {
HTTP::cookie encrypt "MRHSession" $passphrase
HTTP::respond 302 noserver "Location" "/strong?return_url=[URI::encode [HTTP::uri]]" "Cache-Control" "no-cache, must-revalidate" Set-Cookie "MRHSession=deleted;expires=Thu, 01-Jan-1970 00:00:10 GMT;path=/" Set-Cookie "LastMRH_Session=deleted;expires=Thu, 01-Jan-1970 00:00:10 GMT;path=/" Set-Cookie "Session1=[HTTP::cookie MRHSession];path=/"
}
}
}

when ACCESS_SESSION_STARTED {

# decrypt Session1 cookie value
set decrypted [HTTP::cookie decrypt "Session1" $passphrase]

if { [HTTP::cookie exists Session1] and [ACCESS::session exists -state_allow -sid $decrypted] } {

## section : retrieve session variables from the first session

ACCESS::session data set session.custom.last.username [ACCESS::session data get session.logon.last.username -sid $decrypted]
ACCESS::session data set session.custom.last.password [ACCESS::session data get session.logon.last.password -sid $decrypted]

## End section

ACCESS::session data set session.custom.last.authresult "true"

# remove the first created session during standard authentication to avoid multiple active sessions
ACCESS::session remove -sid $decrypted

} elseif { [class match [HTTP::path] starts_with loa3_uri] } {
ACCESS::session data set session.custom.last.strong 1
}
}

Tested this on version:

11.5
