Infrastructure Scalability Pattern: Partition by Function or Type

A deeper dive on how to apply scalability patterns at the infrastructure layer.

So it’s all well and good to say that you can apply scalability patterns to infrastructure and provide a high-level overview of the theory but it’s always much nicer to provide more detail so someone can actually execute on such a strategy. Thus, today we’re going to dig a bit deeper into applying a scalability pattern – vertical partitioning, to be exact – to an application infrastructure as a means to scale out an application in a way that’s efficient and supports growth and that leverages infrastructure, i.e. the operational domain.

This is the reason for the focus on “devops”; this is certainly an architectural exercise that requires an understanding of both operations and the applications it is supporting, because in order to achieve a truly scalable partitioning-based architecture it’s going to have to take into consideration the functional aspects of the application. There is a less efficient but still inherently more scalable implementation that relies on content-type and generation, and we’ll briefly examine that, but the more efficient method of scalable requires some application awareness on the part of not only the infrastructure but the implementers as well.

OPTION ONE: PARTITION by TYPE

This vertical partitioning pattern requires no changes to the application and very little knowledge of its functional aspects or performance characteristics. A simple vertical partitioning pattern leverages the difference in delivery characteristics across content types as the basis for partitioning at the infrastructure layer.

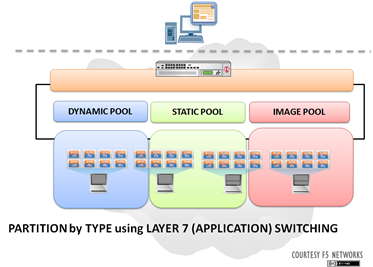

In this configuration the Application Delivery Controller (ADC) becomes the “endpoint” as far as the client is concerned. The ADC virtualizes the application and mediates all requests through it. This gives it the opportunity to apply all sorts of policies – security, acceleration, etc… – including application-layer switching. Application-layer switching allows the ADC to inspect every request and, based on its Content-Type HTTP header, direct it to an appropriate pool of resources.

Generally this type of logic is encoded in the ADC either by configuring a mapping of content-types to the appropriate pool of resources, or by leveraging the ADC’s innate network-side scripting capability.
