DeviceID with APM and API Server

This article covers the use case to use APM and an external API Server to store DeviceID+.



As you learnt in the previous articles in this series, DeviceID+ is a way to "identify" a user. And of course, it is a great solution to combine with F5 APM (Access Policy Manager) - https://www.f5.com/products/security/access-policy-manager



The F5 Shape DeviceID+ solution does not store the IDs anywhere. It is up to you to store/use/consume them on your own. To do so, I propose to use an external API Server to store the DeviceID / Username peer.



Steps:



• Built an API server based on loopback.io stack.
• You can download the project (docker-compose) here : https://github.com/MattDierick/DeviceID-api-server/blob/main/README.md
• Build an APM Pre Request Policy with HTTP Connector to query the API server (available also on my Github)
• Created the Postman collection (available also on my Github)



First of all, watch the demo video to understand the use case and the outcomes: https://www.youtube.com/watch?v=PVYwh76nGVE







The API Server:

The API server has a Swagger UI installed so you can "watch" the API (go to /explorer)











Structure of the API

Below is the structure of the API payload. As you can see, we store the username with the associated DeviceIDs



{
    "username": "dierick",
    "deviceid": [
        "Ac31A2AAAAAA12uwoekcLffhgfjgjghj",
        "AUq7Xti2Eowm6yVog4CYvt6nRrookqgW"
        ]
}





The REST calls used by APM



1. GET DeviceID per username



GET /api/deviceids/findOne?filter={"where":{"username":"dierick"}}



2. POST a new DeviceID



POST /api/deviceids HTTP/1.1
    {
      "username": "dierick",
      "deviceid": [
        "Ac31A2AAAAAA12uwoekcLffhgfjgjghj",
        "AUq7Xti2Eowm6yVog4CYvt6nRrookqgW"
        ]
    }



3. UPDATE DeviceID per username



POST /api/deviceids/upsertWithWhere?where={"username": "dierick"} HTTP/1.1
   {
      "deviceid": [
        "Rtdsflkj534565465kenfter"
      ]
   }





The iRule to collect the DeviceID from the Shape cookie



when ACCESS_SESSION_STARTED {
  log local0. "Access Session Started"
  if [HTTP::cookie exists _imp_apg_r_] {
    set deviceid [URI::decode [HTTP::cookie _imp_apg_r_]]
    log local0. "URL Decoded cookie is $deviceid"
    set deviceida [lindex [regexp -inline -- (?:"diA":")(.*?)(?:") $deviceid] 1]
    log local0. "diA = $deviceida"
    set deviceidb [lindex [regexp -inline -- (?:"diB":")(.*?)(?:") $deviceid] 1]
    log local0. "diB = $deviceidb"
    log local0. "IP is [IP::client_addr]"
    log local0. "Path os [HTTP::path]"
    ACCESS::session data set session.logon.deviceid $deviceid
    ACCESS::session data set session.logon.deviceid.A $deviceida
    ACCESS::session data set session.logon.deviceid.B $deviceidb
  } else {
  log local0. "No cookie"
  }
}





The APM Per Request Policy

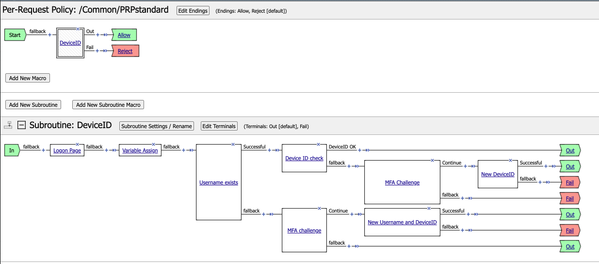

Below an example using the APM Per Request Policy. A Per Request Policy is required instead of a Per Session Policy in order to use the HTTP Connector.

HTTP Connector is a REST API client. Create the different CALLS, and assign each call in the right branch (new DeviceID, update DeviceID ...)
