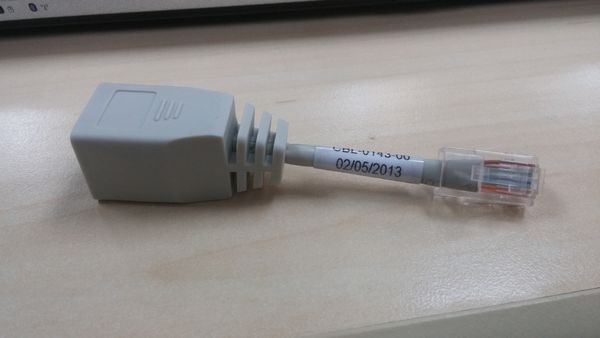

NimbostratusWhat RJ45M to RJ45F for?
How can I use this cable?
Is this usable?
8 Replies
- The_Bhattman
It sure is. But I have not found a really good use for it yet
-=Bhattman=-
- nitass
Employee
i found this.
Connect the RJ45F to RJ45M rolled serial adapter to the console port if you are connecting the system to a serial console server with a standard CAT5 cable, and then connect the CAT5 cable to the adapter. The adapter provides the appropriate pinout connection to your equipment.Manual Chapter: Platform Installation
http://support.f5.com/kb/en-us/products/big-ip_ltm/manuals/product/b4000-platform/2.html
The_Bhattman_16Strange it never worked that way for me.
kridsanaCirrocumulus
me too :(
- nitass_89166
Noctilucent
i found this.
Connect the RJ45F to RJ45M rolled serial adapter to the console port if you are connecting the system to a serial console server with a standard CAT5 cable, and then connect the CAT5 cable to the adapter. The adapter provides the appropriate pinout connection to your equipment.Manual Chapter: Platform Installation
http://support.f5.com/kb/en-us/products/big-ip_ltm/manuals/product/b4000-platform/2.html- The_Bhattman_16Strange it never worked that way for me.
- kridsaname too :(
F5_Digger_13600Cirrus
You need to use this cable if the console connection to F5 appliance is via Console server. So the connectivity looks like this.
Console Server (Cat 5 cable) --- RJ45F to RJ45M converter --- F5 Console Port.
