WebServer behind F5 LTM VE does not have internet access

Here are some things that are generally required to be able to route outbound from behind an LTM:

1. The web servers must be configured to use the LTM's internal self-IP as their default gateway. You've done this.

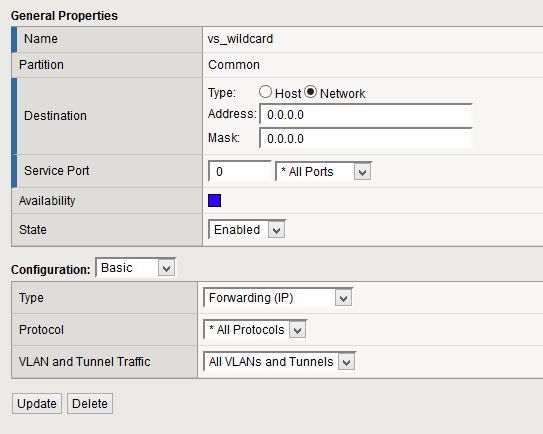

2. There must be a virtual server on the inside of the LTM to listen for this traffic. The typical configuration is to use a forwarding virtual server with a wildcard IP, mask, and port.

   Ex. 0.0.0.0/0:0


3. The LTM must have a route out to the world. Unlike a tradition virtual server that uses a pool, a forwarding virtual server relies on defined routes to pass traffic.

4. Depending on you configuration, you may also need a SNAT profile applied to the VIP. If the external VLAN's self-IP is a routable Internet address, then you should apply a SNAT. Otherwise the traffic will source from the internal subnet. If your LTM sits behind a NAT (perhaps a NATting firewall), and your external subnet is not Internal routable, then you probably do not need SNAT (but it rarely ever hurts).

Hi Kevin, appreciate for the advise, i already create a virtual server as you said but is still unable to access internet.

On the route tab, i only set the gateway of my vmware NAT out to the internet, and the LTM able to go internet without issue.

I tested adding a SNAT list where translate web server ip to LTM internal self ip, my web server able to access internet without creating any virtual server. Is this a good practice?

I tested adding a SNAT list where translate web server ip to LTM internal self ip, my web server able to access internet without creating any virtual server. Is this a good practice?

Do you still have the wildcard forwarding VIP?

I did not create any wildcard forwarding the VIP, just adding the SNAT list and my server able to access internet.
