NimbostratusWeb Server load balancing by F5 and ASA
Dear All,

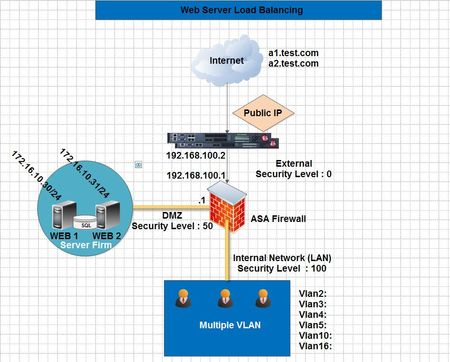

In this Case, I will make load balancing the two web server. How should I do?
My Requirement is I need load balance to two web server from Load balancer. I think ASA sho...
Amine_Kadimi
MVP
MVPHi, It's up to you to decide if you want NAT in the ASA or not, it will work in both scenarios.
Assuming that you have configured the suitable ASA security policies to permit the traffic:
- With NAT: each real server will have a NAT address configured on the ASA, your pool in F5 will contain two members pointing to the NAT addresses.
- Without NAT: your pool will contain two members pointing to the real server IPs. You also need to have a route to the DMZ in F5 unless your default GW is the ASA.
Hope that helps.
