Verify Certificate is installed

Hello everyone!

I'm currently trying to set up a Machine Cert Auth in my APM VPE with the sole purpose of verifying that the computer has installed a company computer certificate.

I'm struggling to get it to work and I'm unsure which components I actually need to get it to work. I have reviewed all manual chapters I can find and browsed through DC but still not managed to get it to work.

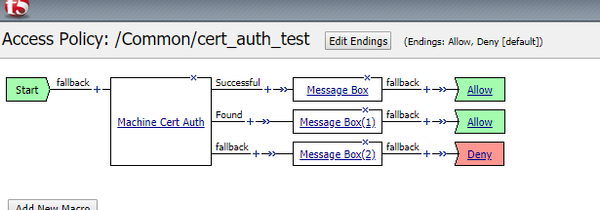

I have the following simple policy:

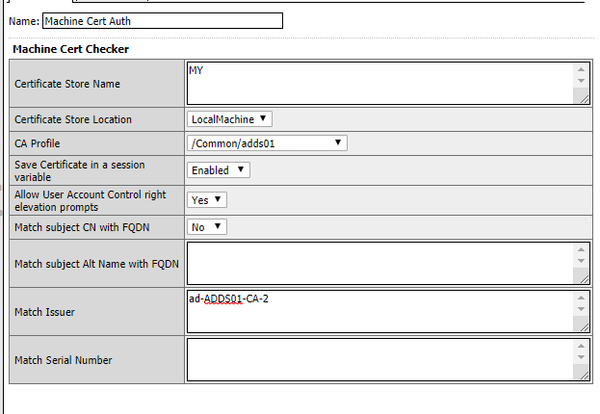

With the following Machine Cert Auth Config:

Here I have tried numerous of different combinations. The one I'm presently using is this:

CN=ad-ADDS01-CA-2, DC=ad, DC=jonsson, DC=biz

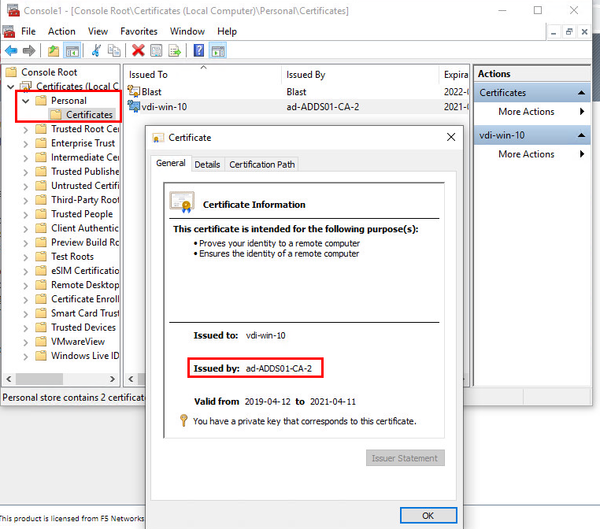

I have installed the following computer cert on the computer trying to connect:

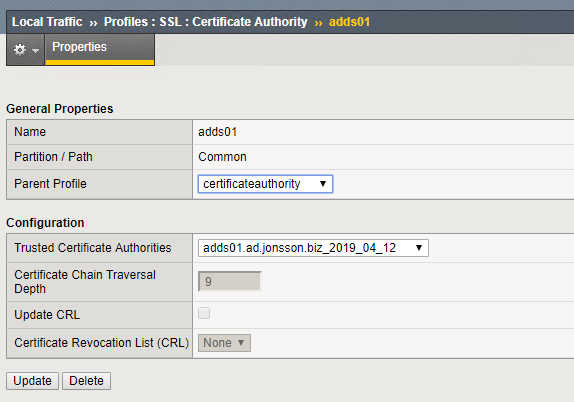

I have configured a Certificate Authority Profile with the following settings:

That is the root CA which has signed the Computer certificate.

Here is the entire chain:

The certificate is installed in the Local Machine part and I have all of the components installed for the APM to check my certs.

Yet I’m still seeing this in the log:

Apr 12 11:57:21 bigipcore02 err apmd[7363]: 0149015f:3: MachineCert Agent: Init failed in '/Common/cert_auth_test_act_machinecert_auth_ag' reason 'Loading CA file failed'

And this when debug is turned on:

Apr 12 12:32:42 bigipcore02 debug apmd[7363]: 01490266:7: (null):Common:00000000: ./AccessPolicyProcessor/SessionState.h: 'clearTempSessionAgentState()': 118: Agent did not initiated the scheduled agent

It feels that I've done everything correct according to the examples and manuals I have found.

What am I missing? =/
