Tcpdump for tcp packet capture question

Hi all



Recently , I am perform a packet capture with tcpdump at F5 for the application .



Base on the tcpdump , I saw the TCP handshake are completed and then follow with client send sync connection to server only . I didn't see the server reply anything to client base on packet.



However , the messages transaction are completed and working properly.



I just wonder how can the message transaction are completed and success when I only saw client send sync connection to server only .



The tcpdump command run are tcpdump -s0 -ni 0.0 -w var/tmp/client/pcap

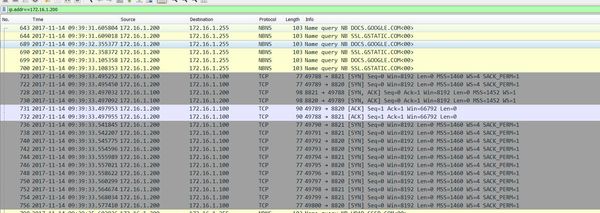

Can anyone enlightened me what shall the tcpdump command shall execute to see the entire traffic ? please see attached result which I use wireshark to filter client ip : 172.16.1.200



application delivery
BIG-IP
LTM
  • Lee_Sutcliffe's avatar
    Lee_Sutcliffe
    Icon for Nacreous rankNacreous
    Nov 13, 2017

    There's nothing wrong with your tcpdump syntax, you have used the

    -n 0.0
    switch to listen on all interfaces.

    If you right click in Wirehshark on the first SYN and select 'Follow TCP Stream' do you see any TCP FIN messages?

    Are you sure traffic is returning via the F5? You can also add a

    -e
    switch to list which layer 2 VLAN each packet is seen on.
