SSLO configured but unable to reach service

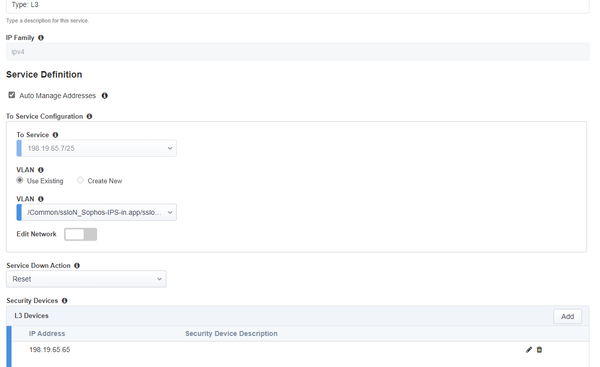

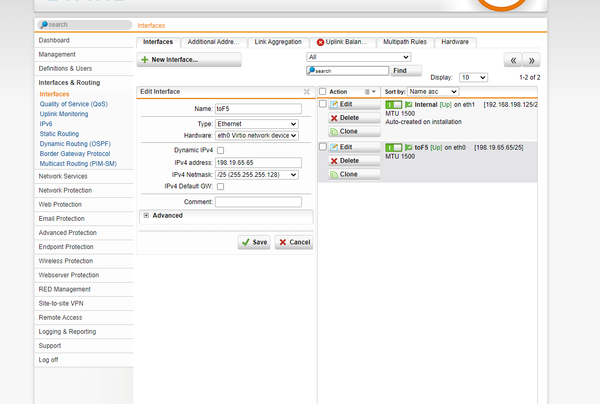

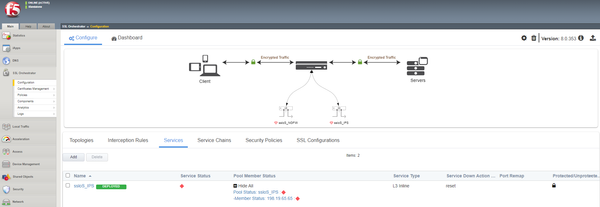

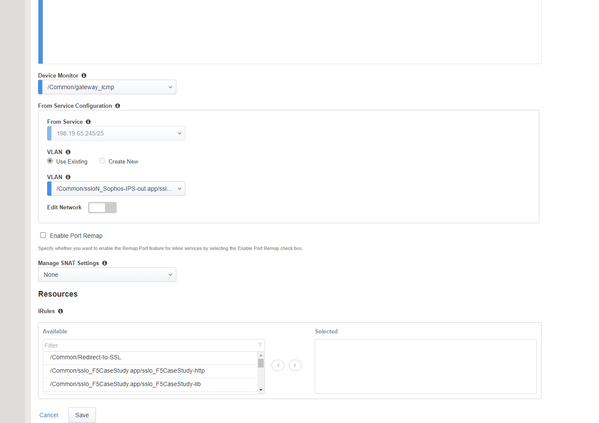

Hi Everyone, I am very new in f5 and I am trying to implement an SSLO I was able to configure and deploy it but I am having trouble getting it connected to my security service I indicated (Generic Layer3 inline). I am unable to Ping both sides even if they are in the same network/subnet. Please see the screenshot for reference . by the way this is just a Lab environment I just really want to know how to implement it.

LTM
security
SSL Orchestrator
  • Nikoolayy1's avatar
    Nikoolayy1
    Icon for MVP rankMVP
    May 12, 2021

    See port lockfown:



    https://support.f5.com/csp/article/K17333









    Also do tcpdump to see if the F5 sends traffic and if there are no replies then check something outside the F5 device as the issue is not with F5:



    https://support.f5.com/csp/article/K411



    https://support.f5.com/csp/article/K13637





    If you see that the F5 is reseting the conection with TCP RST check:



    https://support.f5.com/csp/article/K13223
