SSL server profile with external website

Bastien - I think you can simply use the default serverssl profile. Try that.

I wonder in the statistics do you see the connections to the pool member go up when you try and connect? This will check that the traffic gets to the pool member. To see if traffic goes back to the client you will have to run tcpdump on the ltm. Try a simple cmd to see if you're getting return traffic, tcpdump -nni 0.0 host x.x.x.x

N

Not sure why, but I don't see your original post content. However if you are trying to configure a Virtual Server to load-balance connections to a Pool Member in a network which is not directly attached, you need to enable SNAT. Is SNAT enabled on the Virtual Server?

smp - I don't see the post either now (although I did before). I meant to mention SNAT also, as I suspected that the tcpdump wouldn't see any return traffic. Thanks.

I see it now.

Nathan was right. The Client SSL Profile encrypts the client-side of the connection, and the Server SSL Profile encrypts the server-side of the connection. So if the connection to the Pool Member (the server-side) will be encrypted, you will need to apply a Server SSL Profile on the VIP. My comment about SNAT also still applies.

I made a test with a simple VIP with HTTP, no ssl profile, and it still doesn't work. I tried to configure AutoMap and a SNAT pool which contain my public IP, non luck.

There's a number of different ways one could go trying to figure out what is wrong here...but I'm going to agree with Nathan again - the quickest way to figure out what is going on is by looking at the wire. So at this point I'd also suggest running this TCPDUMP command:

tcpdump -nni 0.0 host x.x.x.x

where x.x.x.x is the IP address of your Pool Member. Run that command while you are attempting to make a connection to the VIP.

Odd, I don't even see traffic for the health monitor (gateway_icmp) for the test node (simply www.google.ca).

When going to the VIP, I can see my client connection, but nothing after that.

It's tough to give you any useful input unless we can focus on specific behavior - we just don't have enough familiarity with your environment to understand all the potential possibilities.

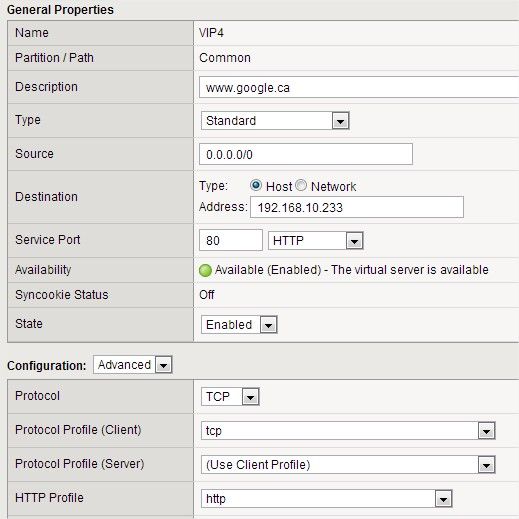

Can you post the LTM config of the virtual server and the pool? You can anonymize the addresses if you feel it necessary.

Automap and Source Address Translation are enabled.

When doing

tcpdump -nni 0.0 host 74.125.131.94
