snmp trap for bandwidth utilization

hello



we have f5 ltm-ve licensed for 1G bandwidth



I didn't find the snmp trap for this alert:

https://support.f5.com/csp/article/K15831



is there snmp oid for this alert message ?

application delivery
BIG-IP
LTM
  • Lidev's avatar
    Lidev
    Icon for Nacreous rankNacreous
    Jul 11, 2019

    Hello, i don't think this oid exist, however you can monitor you throughput statistics with the following OIDs :

    Client In 	sysStatClientBytesIn (.1.3.6.1.4.1.3375.2.1.1.2.1.3.0)
Client Out 	sysStatClientBytesOut (.1.3.6.1.4.1.3375.2.1.1.2.1.5.0)
Server In 	sysStatServerBytesIn (.1.3.6.1.4.1.3375.2.1.1.2.1.10.0)
Server Out 	sysStatServerBytesOut (.1.3.6.1.4.1.3375.2.1.1.2.1.12.0)
  • Abed_AL-R's avatar
    Abed_AL-R
    Icon for Cirrostratus rankCirrostratus
    Jul 14, 2019

    thanks for your answer

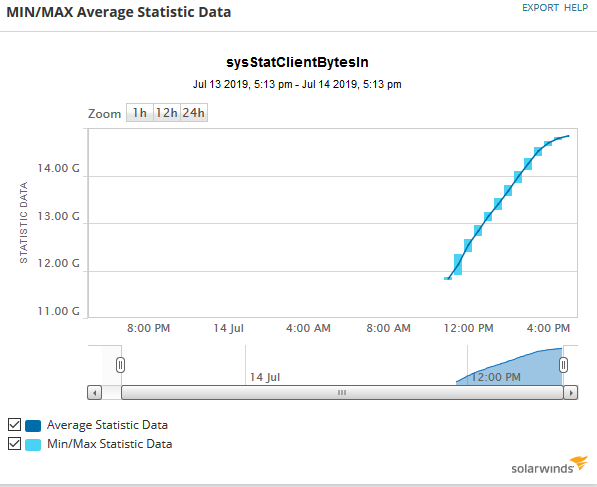

    the thing with this oid is that this is a counter , if you monitor via solarwind the graph will go only up and up ..
