Forum Discussion

Nick_Myers's avatar
Nick_Myers
Icon for Nimbostratus rankNimbostratus
Jul 16, 2019

Show all IP addresses in Analytics

Hi,



Is there a way to show all client connecting IP addresses to a virtual server? This is an internal server and I need to be able to see how many IP addresses per site connect in an average day.



I have configured a TCP analytics profile and have set the collected entities to Virtual Server and Remote Host IP Address. This has been attached to the Virtual server I need to monitor and I am getting stats from this.



The problem is that when I view the profile in the Analytics module it always groups them as Aggregated so I cannot see a true list.



Is there any way to stop them aggregating in this view or a way that I can export the list?



Thanks

application delivery
BIG-IP
LTM
  • Bobow's avatar
    Bobow
    Icon for Cirrus rankCirrus
    Jul 17, 2019

    Hi Nick,



    It is possible to see all client IP address to VS, you can see in : Statistics  ››  Analytics : HTTP : Transactions (time period : last hour/last day/last week etc).



    What BIGIP OS version do you use?

    Could you capture and share in here which you mean "it always groups them as Aggregate" ?

  • Nick_Myers's avatar
    Nick_Myers
    Icon for Nimbostratus rankNimbostratus
    Jul 17, 2019

    Hi,



    I am running BIG-IP v14.1.0.5 (Build 0.0.5).



    Unfortunately this is not a HTTP VS. Its running on all ports.

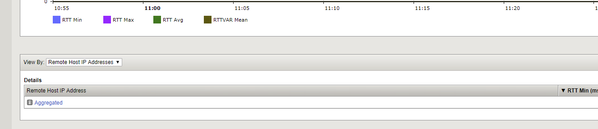

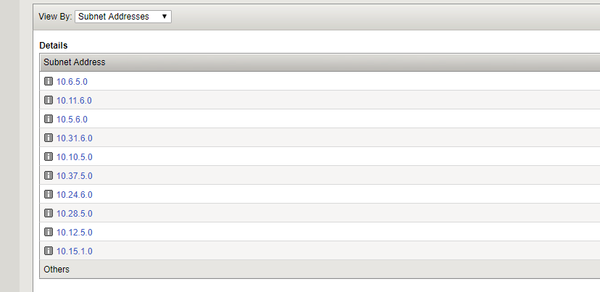

    I have attached a couple of images. The most detail I can get when I drill down are subnet addresses.



    Thanks for the help so far.
