NimbostratusSeveral IP Forwarding with same destination on same vlan with differents partitions
Hi,
On BIG-IP LTM 11.5.3 HF3 : I have 4 partitions on the same vlan and I would like to configure on each partition an ip forwarding with different source (subnet in the vlan) but with same destination (0.0.0.0/0) Unfortunately I have an error during the creation of the 2nd ip forwarding : "01070726:3: Virtual Server //FW_ALL in partition cannot reference Virtual Address //0.0.0.0% in partition "
Is it possible ? If yes, how can I do ?
Thanks in advance.
3 Replies
- Kevin_Stewart
Employee
Can you elaborate? So you have multiple (self-IP) subnets defined for a single VLAN? And you're trying to create multiple forwarding VIPs that source a different subnet on that VLAN? Just for kicks have you tried this from the Common partition?
- Kevin_Stewart
Are you specifying the route domain in the source? Your source and destination should contain the route domain ID.

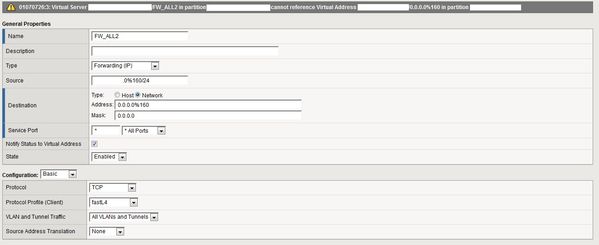

Tribute2U_25726Yes I did it, but still the error :
