setup issue on BIG IP Trial edition

HI,

I have downloaded BIGIP-13.1.1-0.0.4.ALL-scsi.ova trial and deployed it using VMWare Player. Here are the steps I took.

1) On the VM network adapters I have set the subnet adress as follows.





2) Below is how my vlan, selfip setup.





3) I then imported a linux VM (SliTaz) and configured its network adapter to VMNet2 internal from VMPlayer interface. This is to be used as a node for my internal vlan.

4) I then went through node, pool and vitual server setup. Here is my setup.

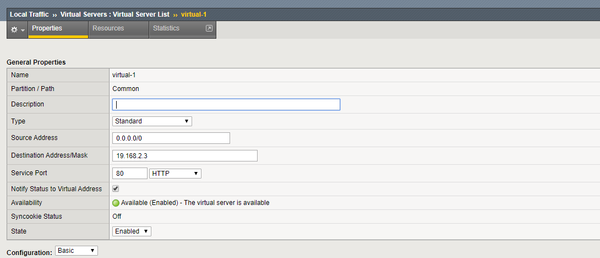

My question is regarding the Virtual IP provided in the above step. I setup it up as 192.168.2.3. Is this correct?



I tried accessing the it from my laptop and here is where I see an issue.

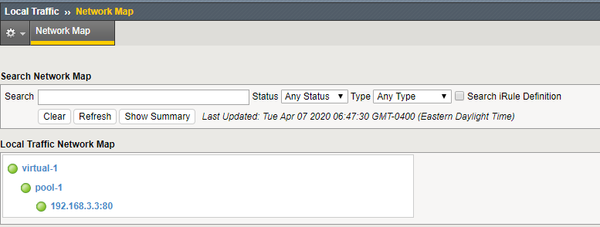

I tried accessing the internal from my laptop and everything works as shown.



Why am I not able to access the VIP (192.168.2.3) ? I am thinking something is wrong in my setup. Could you please guide me where I am not configuring this properly.



Thanks







application delivery
BIG-IP

2 Replies

  • f5learn1's avatar
    f5learn1
    Icon for Nimbostratus rankNimbostratus
    Apr 08, 2020

    Hi,

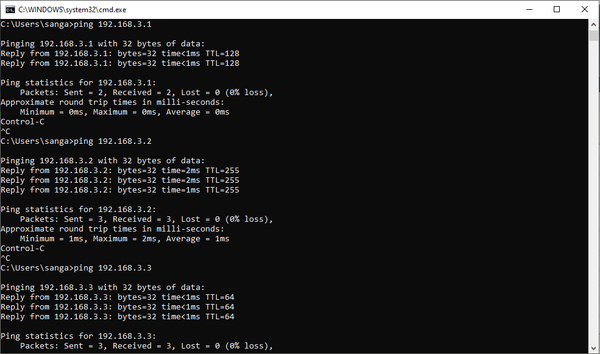

    That was a typo I had when I took the screenshot. May be I was accessing it too quick. After your message I went ahead and tried the ping to 192.168.2.3 and it worked fine.



    The other thing I had to do was set the Source Address translation setting on VIP to AutoMAP as shown below.



    Without the above setting in place when I try to access VIP 192.168.2.3 from my laptop I was getting "Connection Reset"



    Once the above setting is set to Auto Map the VIP responded and I could see the response from the backend pool member.



    Thank you for your response.
