NimbostratusServers not reachable from BIG-IP, following keith barker CBT nuggets lab
Hi Everyone, i am following Keith barker CBT nuggets videos and lab. as shown in the lab i have deployed three servers but i am not able to ping any of them from BIG-IP.
>> Servers are reachable from my PC

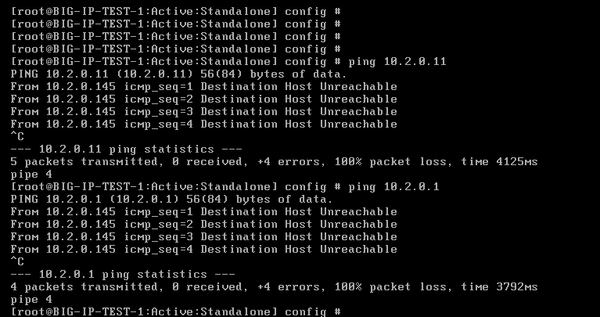

>> no server are pingable from BIG-IP
>> can't ping any ip of BIG-IP other than mgmt ip from my PC.
C:\Users\ds>ping 10.2.0.11
Pinging 10.2.0.11 with 32 bytes of data:
Reply from 10.2.0.11: bytes=32 time=2ms TTL=64
Reply from 10.2.0.11: bytes=32 time<1ms TTL=64
Reply from 10.2.0.11: bytes=32 time<1ms TTL=64
Reply from 10.2.0.11: bytes=32 time<1ms TTL=64
Ping statistics for 10.2.0.11:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 2ms, Average = 0ms
C:\Users\ds>ping 10.2.0.145
Pinging 10.2.0.145 with 32 bytes of data:
Request timed out.
Ping statistics for 10.2.0.145:
Packets: Sent = 1, Received = 0, Lost = 1 (100% loss),
The first thing that comes to mind is that your BIG-IP VLANs and interfaces are not "singing from the same sheet of music" as the network adapters.
- Check the VLANs on your BIG-IP system to determine which interface(s) each uses - tmsh list net vlan interfaces
- Check the MAC addresses for each BIG-IP interface - tmsh list net interface mac-address
- Map the interface MAC addresses to their respective Network Adapter on the VM

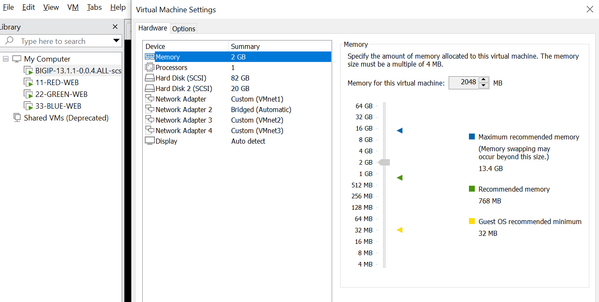

- Finally, make sure each Network Adapter on the VM is assigned to the correct network.
