Servers not reachable from BIG-IP, following keith barker CBT nuggets lab

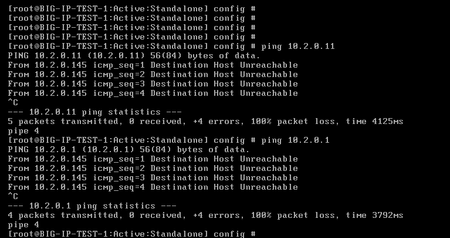

Hi Everyone, i am following Keith barker CBT nuggets videos and lab. as shown in the lab i have deployed three servers but i am not able to ping any of them from BIG-IP.   >> Servers are reachab...
application delivery
BIG-IP
cloud
LTM
crodriguez's avatar
crodriguez
Ret. Employee
Dec 06, 2020

The first thing that comes to mind is that your BIG-IP VLANs and interfaces are not "singing from the same sheet of music" as the network adapters.

  1. Check the VLANs on your BIG-IP system to determine which interface(s) each uses - tmsh list net vlan interfaces
  2. Check the MAC addresses for each BIG-IP interface - tmsh list net interface mac-address
  3. Map the interface MAC addresses to their respective Network Adapter on the VM
  4. Finally, make sure each Network Adapter on the VM is assigned to the correct network.
