r-series LAG

Hi eveyone, When creating a LAG in r-series 10k, what is the best practice, selecting ports from same pipeline or it is better to mix the ports from different pipelines?
cloud
deployment
Aswin_mk's avatar
Aswin_mk
Icon for MVP rankMVP
Oct 27, 2025

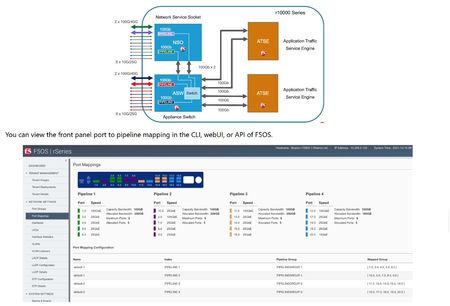

It is best to mix ports from different pipelines when creating a Link Aggregation Group (LAG) on an F5 rSeries appliance for better resilience, as it prevents a single failure (e.g., a pipeline failure) from taking down all member links.
