Provisioning AWAF

Philip,

Had a demo of AWAF a few weeks ago. I can confirm that the provisioned module is still ASM.

Hope this helps,

N

Hi Philip,

Please see the below link K14810: Overview of BIG-IP VE license and throughput limits

under Licensing and provisioning restrictions, there is table explaining the option modules we could adopt in single VE.

As I look into the table we could include AWAF and ASM option is mentioned as "Y"

Thanks, Hari

As per link I could see:

Base VE as ASM then AWAF will be Optional "O"

Base VE as AWAF then ASM will be included "Y"

Contacting F5 support could confirm this I guess more..with reference to K14810

Hi Philip,

Had a meeting with F5 system engineers and channel managers last month. And just as nathan said, AWAF will come as an add-on to ASM. So provisioning it will require an add-on license.

HTH eben.

Hi Philip,

Had a meeting with F5 system engineers and channel managers last month. And just as nathan said, AWAF will come as an add-on to ASM. So provisioning it will require an add-on license.

HTH eben.

I actually went back to the licensing bits since the table states "Base VE as AWAF". I managed to find one named "WAF". So I deployed a completely new BIG-IP and used that license instead. Now I still cannot select AWAF and based on Nathans reply and my previous suspicion, I should provision the ASM module.

With only ASM provisioned, it still does not seem that I have provisioned "AWAF" since I'm not limited in terms of load balancing options. I should only be able to select this:

Load balancing methods supported:

• Round Robin
• Ratio (member)
• Ratio (node)
• Least Connections (member)
• Least Connections (node)
• Weighted Least Connection (member)
• Weighted Least Connection (node)
• Ratio Least Connection (member)
• Ratio Least Connection (node)

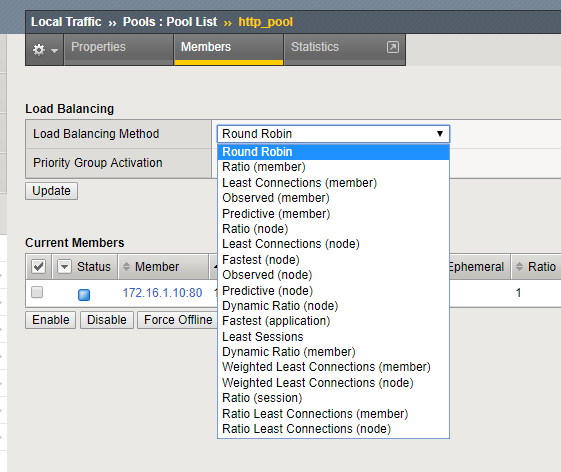

I got the following options:

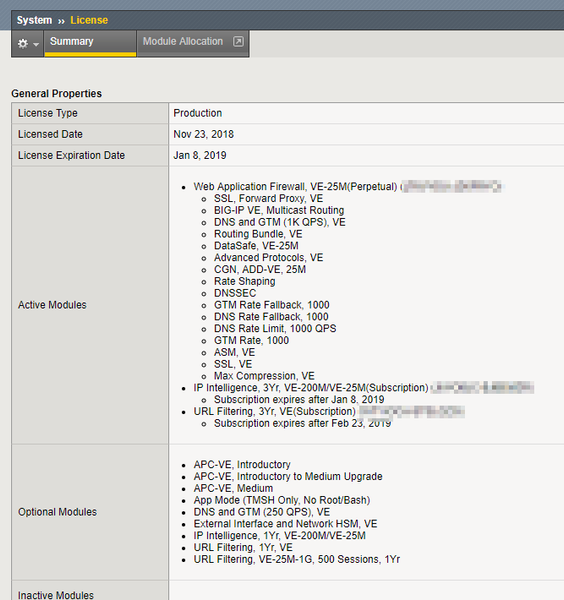

Here is the new license:

So this does not have anything related to LTM. This does not make any sense haha

A BIG-IP licensed just for ASM had limitations on what LTM functions you could use. My understanding is that with AWAF you get 95% of the LTM functionality. There was one key feature you didn't get without LTM too, but I can't recall. Essentially a customer can move from LTM+ASM to AWAF only without any impact.

But the strange thing is that I should be not allowed to use Observed LB method amongst some other but they still appear in both BIG-IPs. One running a Web Application Firewall license with only ASM provisioned and a BIG-IP LTM license running only ASM.

Hey Philip, not sure I follow, what do you mean by "i should not be allowed to use Observerd LB method"? Do you mean with AWAF? I understand AWAF is now pretty much on parity as LTM+ASM so, rather than license/provision LTM+AWAF you can just license/provision AWAF and get all the LTM goodness too.

Yeah, that is exactly what I mean. I got the impression that AWAF has many features from the LTM but not all of them and the load-balancing bits are quick way of detecting that. I found the following article, specifying that additional load balancing methods have been added:

Load Balancing: No limit on IP pool members number

Load balancing methods supported:

• Round Robin
• Ratio (member)
• Ratio (node)
• Least Connections (member)
• Least Connections (node)
• Weighted Least Connection (member)
• Weighted Least Connection (node)
• Ratio Least Connection (member)
• Ratio Least Connection (node)

Persistency:

• Cookie Persistency
• Source Address
• Host
• Destination Address

Release Note: BIG-IP 13.1.0 New Features and Installation

I have not seen an article where they have added Observed, Fastest or Predictive so naturally they should not be available in AWAF. I have tried both ASM provisioned BIG-IP with an AWAF license and an ASM priovisioned BIG-IP formed out from an LTM license with best bundle upgrade and additional AWAF license.

When checking persistence I have all options available as well. So it feels pretty odd and like I'm using a regular LTM box.

Both BIG-IP systems are running 13.1.1.2 and release notes in 13.1.1.2 does not specify anything different. So it feels like I'm running a full LTM with only AWAF/ASM provisioned and it does not seem right according to the documentation.
