Forum Discussion
yogipd
Nimbostratus
NimbostratusPrint GTM pool and loadbalacing method for all pools in GTM
Hello,
we are having more than 800 WIP in GTM and I need to print the WIP, and Loadbalacing method for pool members.
example
GTM WIP: aaa.wip.com (roundrobin), Pool: Prefered( Global avilability)
I need the out put something like this:
aaa.wip.com- Global availability
I tried the following from articles but doesn't seem to be working
show pool all | grep "pool-lb mode\|Pool:"
tmsh list gtm pool all load-balancing-mode
Hi yogipd
I guess you are missing a after pool keyword, use the command like this
check if small a or capital A after pool keyowrd will work.
tmsh
list gtm pool a all load-balancing-mode
tmsh show gtm wideip a all detail | grep 'WideIp\|Destination'
The following command will find pools with a return to DNS option and print the name of the pools.
tmsh -c 'cd /; list gtm pool recursive all-properties one-line' | awk '/return-to-dns/{print $4}'

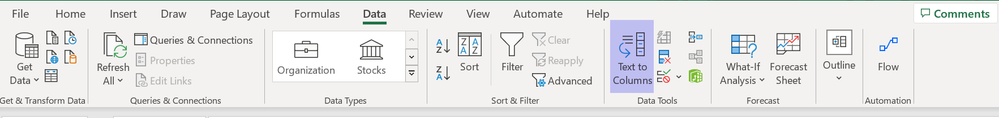

My Other GTM master Commands which i use frequently and keep customizing them based on the requirement and then pul them in excel sheet and then use DATA TAB, and there is one option text to columns
And use Delimited radio button and run the Wizard to convert F5 Command output text command output to mulitple colums for easy readability.
My Other GTM master Commands you can try to get more results of your choice
bash mode
netstat -na |grep 4353
tmsh list /gtm server all
tmsh list gtm wideip a one-line
tmsh list gtm wideip aaaa one-line
tmsh show gtm wideip a detail
tmsh show gtm wideip a pools
show gtm wideip a alltmsh show gtm listener
tmsh show gtm listener all-propertiestmsh show gtm pool a detail
tmsh show gtm pool a detail field-fmt
show gtm pool a members detail
show gtm pool a members fireld-fmt
show gtm pool a members field-fmt servershow gtm server all detail
show gtm server detail virtual-servers
show gtm server detail virtual-servers field-fmt
list gtm server addresses virtual-serversshow gtm server detail
show gtm server detail alllist net self all-properties
list gtm listener all-properties
list gtm listener vlansshow sys ip-address all-properties
tmsh show gtm wideip A all detail | grep 'WideIp\|Destination'
tmsh show gtm all detail | grep -e -i Gtm::Server -e "Server"
show gtm wideip a all detail | grep -e -i -n NAME_OF_YOUR_GTM_SERVE
show gtm wideip a all detail | grep -i -e Gtm::Pool::A grep -i -e 'Pool\|Destination'
show gtm wideip a all detail | grep -i -e Gtm::Pool::A grep 'Pool\|Destination'
show gtm wideip a all detail | grep -i -e Gtm::Pool::A | grep -i -e 'Pool\|Destination' grep -i -e 'Pool\|Destination'
show gtm wideip a all detail | grep -i -e 'wideip\|Destination' grep -i -e Gtm::Pool::A grep -i -e 'Pool\|Destination'
only one pipe
show gtm wideip a all detail | grep -i -e 'wideip\|Destination' grep -i -e Gtm::Pool::A grep -i -e 'Pool\|Destination'
show gtm wideip a all detail | grep -i -e 'wideip\|Destination' grep -i -e 'Pool\|Destination' grep -i -e NAME_OF_YOUR_GTM_SERVER
show gtm wideip a all detail | grep -i -e 'wideip\|Destination' grep -i -e 'Pool\|Destination' grep -i -e NAME_OF_YOUR_GTM_SERVER
show gtm wideip a all detail | grep -i -e '^gtm' grep -i -e 'wideip\|Destination' grep -i -e 'Pool\|Destination' grep -i -e 'NAME_OF_YOUR_GTM_SERVER$'
show gtm wideip a all detail | grep -i -e '^gtm' grep -i -e 'wideip\|Destination' grep -i -e 'Pool\|Destination' | grep -i -e '^NAME_OF_YOUR_GTM_SERVER$' = No results
show gtm wideip a all detail | grep -i -e '^gtm' grep -i -e 'wideip\|Destination' grep -i -e 'Pool\|Destination' grep -i -e '\^NAME_OF_YOUR_GTM_SERVER$'
show gtm wideip a all detail | grep -i -e '^gtm' grep -i -e 'wideip\|Destination' grep -i -e '\^NAME_OF_YOUR_GTM_SERVER$'
show gtm wideip a all detail | grep -i -e '^gtm' grep -i -e '^NAME_OF_YOUR_GTM_SERVER$'
show gtm wideip a all detail | grep -i -e '^NAME_OF_YOUR_GTM_SERVER$'
show gtm wideip a all detail | grep -i -e 'wideip\|Destination' grep -i -e 'Pool\|Destination' grep -i -e '\NAME_OF_YOUR_GTM_SERVER'
show gtm wideip a all detail | grep -i -e 'wideip\|Destination' grep -i -e 'Pool\|Destination' grep -e -i Gtm::Server -e "Server" grep -i -e '\NAME_OF_YOUR_GTM_SERVER'
show gtm wideip a all detail | grep -i -e 'wideip\|Destination' grep -i -e 'Pool\|Destination' grep -e -i Gtm::Server -e "Server"
show gtm wideip a all detail | grep -i -e 'wideip\|Destination' grep -i -e 'Pool\|Destination' grep -e -i Gtm::Server -e "Server" grep -i -e '$NAME_OF_YOUR_GTM_SERVER'
show gtm wideip a all detail | grep -i -e 'wideip\|Destination' grep -i -e 'Pool\|Destination' grep -e -i Gtm::Server -e "Server" grep -i -e '$*NAME_OF_YOUR_GTM_SERVER' -C 2
show gtm wideip a all detail | grep -i -e '$*NAME_OF_YOUR_GTM_SERVER' -C 1
show gtm wideip a all detail | grep -i -e '$*15*' -C 1
show gtm wideip a all detail | grep -i -e '$*gtm*' -C 3 grep -i -e '$*NAME_OF_YOUR_GTM_SERVER'
show gtm wideip a all detail | grep -i -e '$*gtm*' grep -e -i NAME_OF_YOUR_GTM_SERVERHTH
F5 Design Engineer
