Only those taken in the / var / log / apm can I send to syslog?

Hello,



I can now use the Big-IP 11.5.3, and operate the APM.



As customer's request, only logs taken in / var / log / apm want to send to syslog.



I was now haedu specify the IP address and Port to log >> configuration >> remote logging,

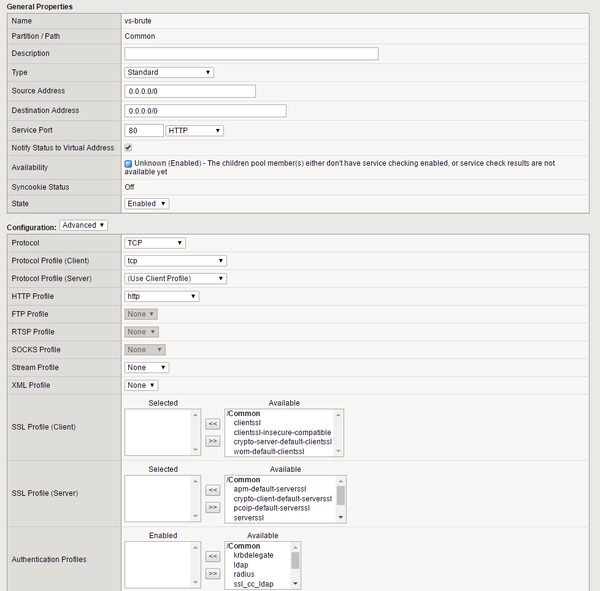

pool also add is registered with VS.



And I made an iRule,



when CLIENT_ACCEPTED { set ClientIP [IP::client_addr] }



when ACCESS_POLICY_AGENT_EVENT { switch [ACCESS::policy agent_id] { "IP_Assign" { set hsl [HSL::open -proto UDP -pool syslog_pool1] set id [ACCESS::session data get session.logon.last.username] set Assign [ACCESS::session data get session.custom.id] log local0. "F5 Network clientIP= '$ClientIP' User= '$id' Assign_IP = '$Assign' Assign ACL Assign Split" HSL::send $hsl "F5 Network clientIP= '$ClientIP' User= '$id' Assign_IP = '$Assign' Assign ACL Assign Split" } } }





But there is a problem.

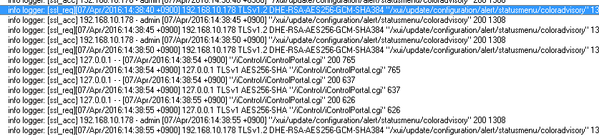

Continuously stamped with a health check and logs are similar,





The logs are taken to the menu, such as when you move various BIG-IP UI.



How can I do this?



I wish only the APM log jjikhyeot.



For example, like shown in the Access Policy >> Reports.
