AltostratusNot able to access GUI and SSH to F5 VM
Hi, I am currently running VM 11.5.3 on a trial version. I configured the HA pair and everything worked fine I was able to access GUI and did the SSH. Now I am trying to run the same VMs with the same configs after 3 days but now I am not able to access GUI and SSH to the device. I ran the VM and their I can see one device is active and other is standby, I checked the config and the IP addresses are same that i have assigned initially. I did the ifconfig (as i am using MAC) and their I verified vmnet1 and vmnet8 are properly configured according to my IPs. I checked the Network adapter and all are connected in host only mode.
Let me know if you have anything else that i can check.
Hi Ian, Don't know what happened but it started to work now. Yesterday when i did the ping from host to VE it was giving me request timed out and today i am able to ping and access the GUI as well. It might be some type of bug i don't know. But thanks for your support
IanBEmployee
- Make sure you can ping the management address from the virtual machine itself (using the vmware console)
- Run "tcpdump -n -i eth0" (eth0=management port) on the BigIP, and see whether it can see any arp or icmp packets from your host when you try to ping it form the host.
Amanpreet_SinghCirrostratus
Which mode is selected for vmnet1 and vmnet8 ? Try using 'host-only'. Add the static IPs. Disable the DHCP from Vmware preferences.
Frank_NHi Ian,

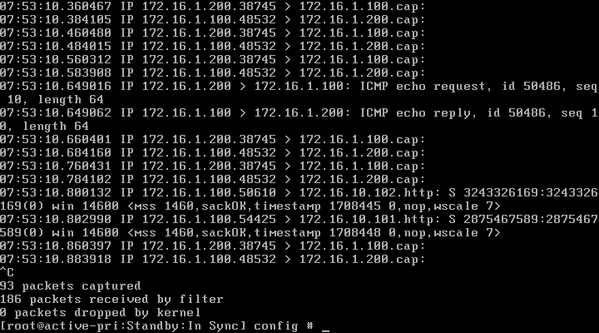

I did tcpdump on my Primary console while i was doing ping from secondary. The output that I got is attached below. My primary mgmt ip is 172.16.1.100 and secondary mgmt ip address is 172.16.1.200. I can ping from console to the mgmt IP. From the output it seems like both the mgmt ip are sending packets to each other. Also I ran the following command (tmsh list net arp all) to see the list of arp entries and I can see only HA VLAN entry in it which is 112.112.112.2.Amanpreet, I am using host only mode for both devices. DHCP is disabled and I have configured static IP addresses.
- IanBWhat IP address have you configured on your host ? What does tcpdump see if you try to ping the host from the VE, or the VE from the host ?
- Frank_N
Primary:
Mgmt: 172.16.1.100 255.255.255.0 GW : 172.16.1.1
Secondary:
Mgmt: 172.16.1.200 255.255.255.0 GW : 172.16.1.1
I saw the following screen shot when i did the ping from secondary VM to primary VM
https://devcentral.f5.com/Portals/0/Users/235/75/247275/Snapshot.png
- IanBCommunication between the two virtuals looks to be working. My question was what happens if you ping the host from the VE, or the VE from the host ?
- Frank_N
When i did the ping from host to VE i get request time out:
User$ ping 172.16.1.200 PING 172.16.1.200 (172.16.1.200): 56 data bytes Request timeout for icmp_seq 0 Request timeout for icmp_seq 1 Request timeout for icmp_seq 2 Request timeout for icmp_seq 3 Request timeout for icmp_seq 4 Request timeout for icmp_seq 5
and from VE to host:
I got %100 packet loss
- IanBI was actually asking for the tcpdump output from eth0 on the BigIP at the same time as the ping from the host
- Frank_N
Hi Ian, Don't know what happened but it started to work now. Yesterday when i did the ping from host to VE it was giving me request timed out and today i am able to ping and access the GUI as well. It might be some type of bug i don't know. But thanks for your support
- IanBThanks for the update. I suspect the problem lies with vmware, rather than BigIP, as your two VEs had no problem talking to each other.
