Nodes status show blue status

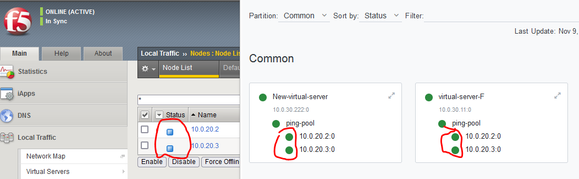

Hi Please see the below. The left red circle labeled is nodes list. the right one is from Local Traffic-----> Network Map.

For the same virtual server, why the left one is not enabled status? Thanks



  • Mohamed_Ahmed_Kansoh's avatar
    Mohamed_Ahmed_Kansoh
    3 years ago

    Hi davidy2001 ,
         The nodes are shown with blue squares because you do not assign a health monitor for them.
    so to show there status and make them available , you need to assign a health monitor.
    > Steps
    - open one of your nodes.

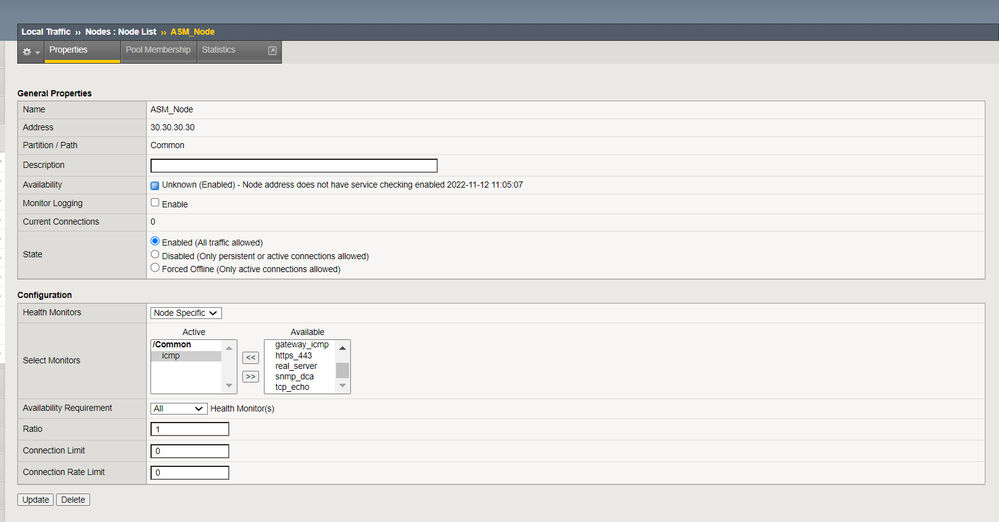

    - Configure it as below snap shot :

    and Click update.

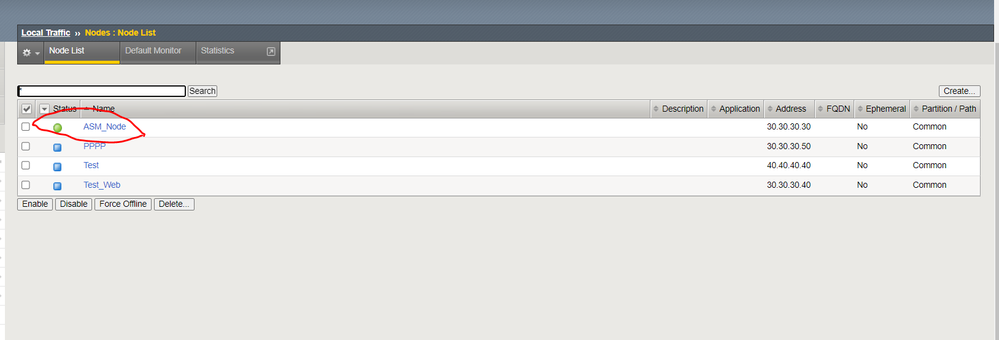

    - open the Nodes list again you will see it becomes available like below snap shot :

    > I recommend that , Do not assign much health monitors on your device , the pool members health monitors is sufficient , make your virtual server or application available.
    - much monitors make a headache to you device , and cost CPU processing as well , you need to reduce  your monitors.

    Hope this helps you.
    Regards

3 Replies

  • Mohamed_Ahmed_Kansoh's avatar
    Mohamed_Ahmed_Kansoh
    Icon for MVP rankMVP
    3 years ago

    Hi davidy2001 ,
         The nodes are shown with blue squares because you do not assign a health monitor for them.
    so to show there status and make them available , you need to assign a health monitor.
    > Steps
    - open one of your nodes.
    - Configure it as below snap shot :

    and Click update.
    - open the Nodes list again you will see it becomes available like below snap shot :

    > I recommend that , Do not assign much health monitors on your device , the pool members health monitors is sufficient , make your virtual server or application available.
    - much monitors make a headache to you device , and cost CPU processing as well , you need to reduce  your monitors.

    Hope this helps you.
    Regards
