Nodes can't access outbound connection

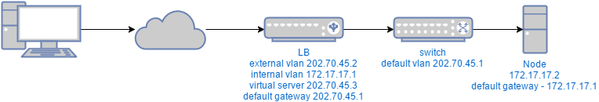

Nodes can't access internet connection. We are using F5 BIG-IP 3600 load balancer. External network has public ip address. Inbound connection is ok(client to node). But nodes can't access internet. Default gateway of node is LB's internal vlan (self IP). We are using virtual server as load balancing. I have attached network diagram.



Regards,



application delivery
BIG-IP
devops

1 Reply

  • IheartF5_45022's avatar
    IheartF5_45022
    Icon for Nacreous rankNacreous
    Jan 20, 2017

    You need to have a fowarding virtual server configured on your internal vlan - do you have that?



    You also need a TMM default route to the internet via your external VLAN.
