Need a HELP with my IRULE

Hi Folks ,



I am working on one requirement and need a little help with my Irule .





When CLIENT makes a req with https://example.com/abcserver and hit to F5 , the F5 should send a response as https://example.com/abcserver/rest/services . I am able to achieve this part through re-direction ( But i am not sure if this is the correct way of doing this ) .





After that the F5 should do a GET request to backend server as below :



GET xyz or GET xyz/rest/services to the backend server





I have written this irule , re-direction is working BUT not able to GET the content .



if {([string tolower [HTTP::host]] equals "example.com") && [HTTP::uri] starts_with "/abcserver" } {



 HTTP::redirect "https://example.com/abcserver/rest/services"



 }



if {([string tolower [HTTP::host]] equals "example.com") && [HTTP::uri] starts_with "/abcserver" } {



 HTTP::uri [string map [list "/abcserver" ""] xyz/[HTTP::uri]]



     node 1.1.1.1 6443



}



I think my this irule ends up in too many re-direction . I am NOT able to understand how to achieve the GET part through irule once re-direction is DONE.





IS this the right way of doing this through re-direction .



Any help in this regard is greatly appreciated .



Thanks .

application delivery
BIG-IP
irule
iRules
  • Deepak_Nair's avatar
    Deepak_Nair
    Icon for Cirrus rankCirrus
    Feb 18, 2021

    Ok , i tweak by irule and able to load the page , BUT response to CLIENT is not what is expected . i have removed the redirect statement under the irule .



    This is how my irule looks now .



    when HTTP_REQUEST {





    if {([string tolower [HTTP::host]] equals "example.com") && [HTTP::uri] starts_with "/abcserver" } {



      HTTP::uri "/xyz/rest/services"

          node 1.1.1.1 6443





    }



    }



    The CLIENT is expected to see in the browser https://example.com/abcserver/rest/services



    when request is made with https://example.com/abcserver



    i am not able to achieve this . Any help in this regard greatly appreciated .



    Thanks

  • jaikumar_f5's avatar
    jaikumar_f5
    Icon for Noctilucent rankNoctilucent
    Feb 20, 2021

    I see you are using starts_with, which will match all time. Try equals.

    if {([string tolower [HTTP::host]] equals "example.com") && [HTTP::uri] equals "/abcserver" } {
HTTP::redirect "https://example.com/abcserver/rest/services"
}
if {([string tolower [HTTP::host]] equals "example.com") && [HTTP::uri] equals "/abcserver/rest/services" } {

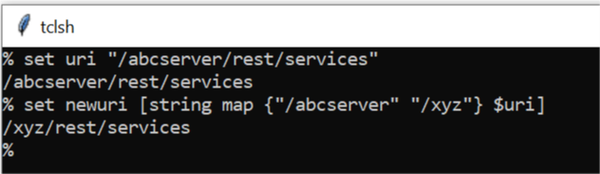

HTTP::uri [string map {"/abcserver" "/xyz"} [HTTP::uri]]
node 1.1.1.1 6443
}

    So once its redirected, the request is going to come in with /abcserver/rest/services, then on the second condition you can make that check & modify your GET request.
