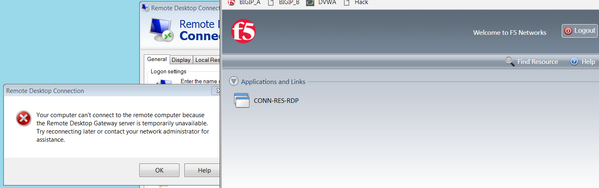

Native RDP sessions used in Full Webtop does not work (BIG-IP 13.1.0.6 Build 0.0.3)

Does your MS RDS setup also contain a connection broker and web access services? I also notice that you didn’t configure Auto Map or SNAT, is that correct?

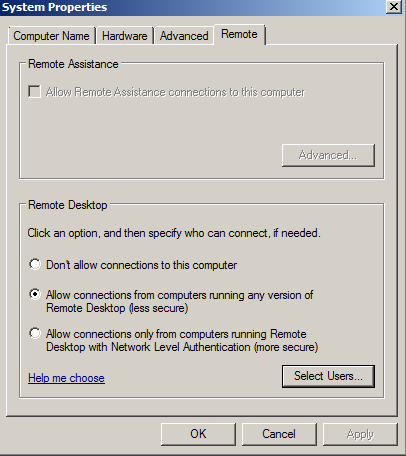

The server role "remote desktop services" is not deployed. It is just remote desktop with following settings:

With those settings I am able to connect with rdp on the server directly.

The server is using the f5 self ip as default gateway. Communication between f5 and backend server is working.

Try removing the RDG Policy assign agent. I think you don’t need this in your deployment.

Hi,

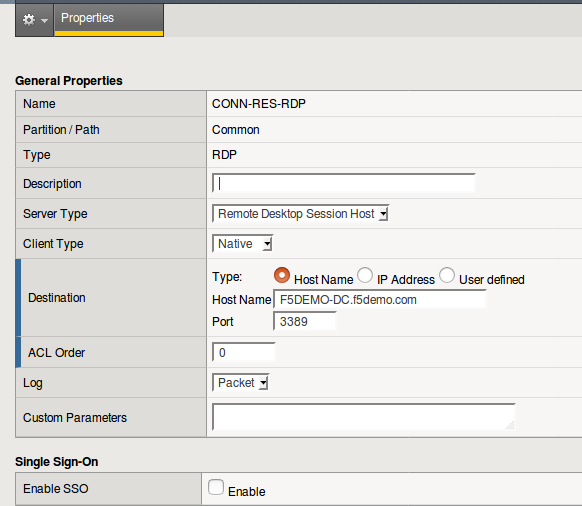

Did you configure SSO in rdp resource?

I already had some issue with SSO and native mode.

All the configuration I saw in your screenshot may work!

• RDP-RAP access profile is required
• you can let NTLM auth in the RDP profile but it is useless with native mode, only for direct connection from rdp file in mstsc

The only other issue can be mstsc version! The minimum mstsc version is 8.0 (not the default version in windows 7)

Native RDP requires you have a Microsoft client running RDP 8.1. https://support.microsoft.com/en-au/help/2923545/update-for-rdp-8-1-is-available-for-windows-7-sp1 The Windows 7 RDP 8.1 update has some other dependencies as well which you will discover when you go to install it.

Update: A separate RDP-RAP policy is only required if your destination is dynamic. This means in the RDP profile you specify the destination as "User Defined"

The key piece here is when APM creates the RDP file for the Remote Access Webtop link, it digitally signs this with the SSL certificate of the virtual server running the APM policy. For Microsoft RDP client to accept this signed file you MUST be using a valid SSL certificate. Inside the file it will include a token which is valid for about 20 seconds. Microsoft RDP will open the session using the APM as the gateway and present this token for authentication to APM.

Now if you want SSO you need select it inside the RDP profile you created. This is completely independent and distinctly separate to ANY OTHER SSO configuration inside APM. The variables you specify here can be left as defaults but you need to include a SSO variable assignment object in the VPE before it hits the Webtop so these variables are populated for RDP configuration to use.

Note that NTLM is not required or needed for any of this to work. The username and password from the login to the Webtop is sufficient as long as it matches the credentials for the RDP host, your desktop should appear. When you first click the remote desktop link it will download the RDP file, it is here you tell your browser to always open these files with the right application. Next time it will open the link on download and connect immediately.

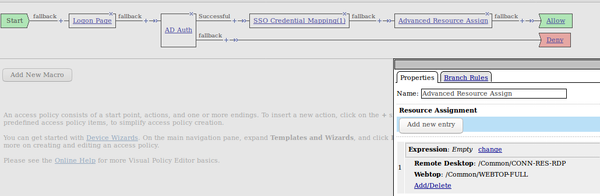

Hi, at first thank you for your help, but it won't run. I insalled a win10 client and I got the same messsage. I tried the remote desktop app and the mstsc client: The VP is broken down to:

I disabled the SSO credentials mapping and SSO settings in the remote desktop connectivity profile, but the same messages.

The certificate is valid. The browser trusts the website.

I got with each attempt the error:

/Common/ACC-PROF-WEBTOP:Common:00000000: VDI profile on /Common/VS-RDP-WEBTOP-443 does not have associated NTLM Auth profile or ECA profile is missing

But I have to use a vdi profile, and I am using the default one.

The tcpdump tells me that the virtual server reseted my connection. This is the section where I try to access the server via rdp

> 16:44:44.414358 IP 10.128.10.10.50147 > 10.128.10.100.443: Flags [S], seq 2246235942, win 64240, options [mss 1460,nop,wscale 8,nop,nop,sackOK], length 0 in slot1/tmm0 lis= flowtype=0 flowid=0 peerid=0 conflags=0 inslot=0 inport=0 haunit=0 priority=0 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.414422 IP 10.128.10.100.443 > 10.128.10.10.50147: Flags [S.], seq 721181350, ack 2246235943, win 4380, options [mss 1460,sackOK,eol], length 0 out slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=1 priority=3 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.417240 IP 10.128.10.10.50147 > 10.128.10.100.443: Flags [.], ack 1, win 64240, length 0 in slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=0 priority=0 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.419570 IP 10.128.10.10.50147 > 10.128.10.100.443: Flags [P.], seq 1:180, ack 1, win 64240, length 179 in slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=0 priority=0 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.419870 IP 10.128.10.100.443 > 10.128.10.10.50147: Flags [.], ack 180, win 4559, length 0 out slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=1 priority=3 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.422987 IP 10.128.10.100.443 > 10.128.10.10.50147: Flags [P.], seq 1:1993, ack 180, win 4559, length 1992 out slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=1 priority=3 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.429565 IP 10.128.10.10.50147 > 10.128.10.100.443: Flags [.], ack 1993, win 64240, length 0 in slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=0 priority=0 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.429583 IP 10.128.10.10.50147 > 10.128.10.100.443: Flags [P.], seq 180:306, ack 1993, win 64240, length 126 in slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=0 priority=0 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.429632 IP 10.128.10.100.443 > 10.128.10.10.50147: Flags [.], ack 306, win 4685, length 0 out slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=1 priority=3 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.430614 IP 10.128.10.100.443 > 10.128.10.10.50147: Flags [P.], seq 1993:1999, ack 306, win 4685, length 6 out slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=1 priority=3 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.430629 IP 10.128.10.100.443 > 10.128.10.10.50147: Flags [P.], seq 1999:2044, ack 306, win 4685, length 45 out slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=1 priority=3 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.433217 IP 10.128.10.10.50147 > 10.128.10.100.443: Flags [.], ack 2044, win 64189, length 0 in slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=0 priority=0 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.435396 IP 10.128.10.10.50147 > 10.128.10.100.443: Flags [P.], seq 306:638, ack 2044, win 64189, length 332 in slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=0 priority=0 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.435420 IP 10.128.10.10.50147 > 10.128.10.100.443: Flags [P.], seq 638:671, ack 2044, win 64189, length 33 in slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=0 priority=0 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.435452 IP 10.128.10.100.443 > 10.128.10.10.50147: Flags [.], ack 638, win 5017, length 0 out slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=1 priority=3 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.435458 IP 10.128.10.100.443 > 10.128.10.10.50147: Flags [.], ack 671, win 5050, length 0 out slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=224 inslot=0 inport=0 haunit=1 priority=3 peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0
> 16:44:44.436649 IP 10.128.10.100.443 > 10.128.10.10.50147: Flags [R.], seq 2044, ack 671, win 0, length 0 out slot1/tmm0 lis=/Common/VS-RDP-WEBTOP-443 flowtype=64 flowid=5600012D6D00 peerid=0 conflags=800224 inslot=0 inport=0 haunit=1 priority=3 rst_cause="[0x28a318e:6247] iRule execution (reject command)" peerremote=00000000:00000000:00000000:00000000 peerlocal=00000000:00000000:00000000:00000000 remoteport=0 localport=0 proto=0 vlan=0

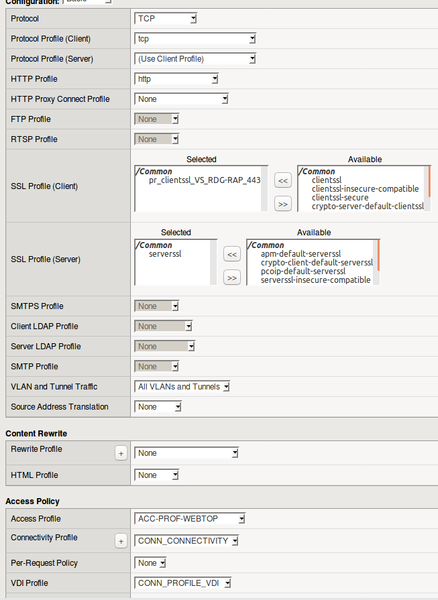

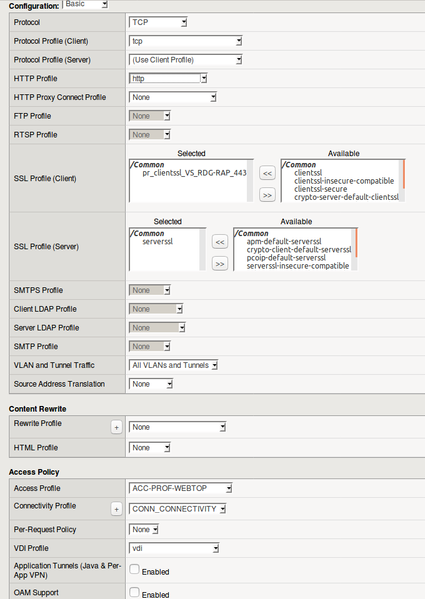

I don't have any irule in use. The virtual server settings again:

Did you configure bigip host file for your resource or does the bigip use dns?

Hi folks,

if I try to configure those settings on a f5 ltm+apm deployment with Partitions and Route Domains I got the error message again.

I configured every step which is working in the default partition within a partition which uses route domains. Any concerns to this configuration? Are "Route Domains" in the rdp connectitiy profile supported? How does it work if I use the host name?

Thank you & Kind regards
