Load balancing only to one node

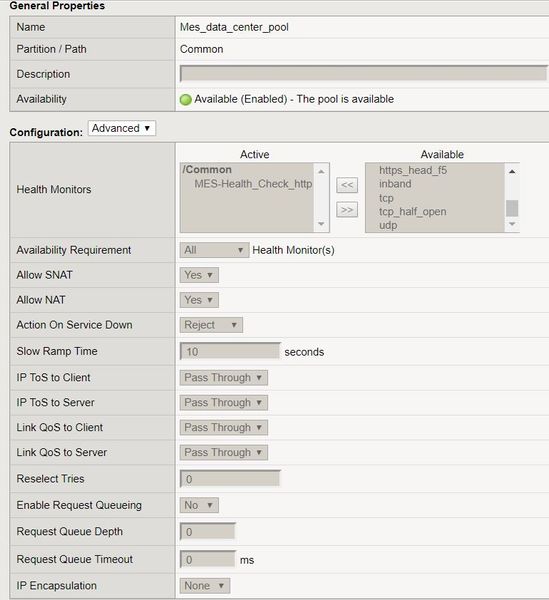

Hello, On the below screenshot, we have 4 app servers are online for the F5, but aways, all the connections go to one of the nodes, thi isn't wanted because 4 servers should be balanced somehow and that's the meaning of F5 load balancer. Can you please suggest any setting necessary? Our main connections (80%) are from the clients with stateless webservices requests and some stateful connections (20%) via the Internet Explore.



Thanks & regards, Leon





application delivery
BIG-IP
BIG-IQ
devops
  • Kai_Wilke's avatar
    Kai_Wilke
    Icon for MVP rankMVP
    Apr 05, 2019

    Please explai your Virtual Server persistence settings as well as pool settings.



    Cheers, Kai



  • leonlu_382273's avatar
    leonlu_382273
    Icon for Nimbostratus rankNimbostratus
    Apr 05, 2019

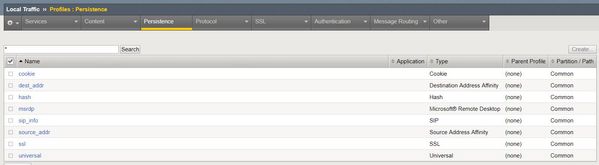

    Hello all, Our network specialist changed persistency profile from “cookie” to “source address” and load-balancing method from “round-robin” to “least connection”. And now it looks good.



    Thanks all for the support. leon
