Kerberos SSO failed for Microsoft Remote Desktop Services

I’m trying to setup Kerberos SSO for Remote Desktop using smartcard and the SSO is not working. After authenticated via F5 against LDAP server and validated, I see icons populated from MS Remote Desktop Web Access, however when I clicked on the icons, it prompted for AD username/password. I know the Kerberos is working because I can see it’s obtained Kerberos tickets in the logs. S4U ======> OK! So I know the Kerberos is working but not able to provide SSO.



F5 APM v13



Microsoft Windows 2016; MS RDS Web Access



For Remote Desktop profile, I enabled both Single Sign-on and Standalone Client Settings.



Any idea?



application delivery
BIG-IP Access Policy Manager (APM)
  • AMiles_377865's avatar
    AMiles_377865
    Icon for Cirrocumulus rankCirrocumulus
    Mar 07, 2019

    Hi James,



    Did you assign your action box to map sso credentials in the vpe?



    • jdewing's avatar
      jdewing
      Icon for Cirrus rankCirrus
      Mar 07, 2019

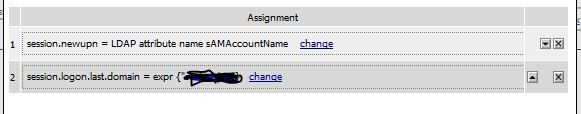

      Yes, I have variable box to mapped to SAMAccount.





      I'm not using the password field since it's a smart card authentication that validated against LDAP server including CERT auth.
