Internal VLAN IP Not Pinging

Hello All,



I need help for my below said issue. Below is my Interface mapping with my F5 and VMware Workstation



Network Adapter -- Bridged -- 192.168.0.XX --- 192.168.0.145 ( Self IP ) ( External Vlan )



Network Adapter 2 --- Vmnet 18 -- 10.2.0.0 --- 10.2.0.145 ( Self IP ) ( Internal Vlan )



Network Adapter 3 --- Vmnet 19 -- 10.1.0.0 ---- Management



Network Adapter 4 --- Vmnet 17 -- 10.3.0.1 ---- HA.



Problem is I am not able to ping Internal VLAN IP from F5 tmsh. And Eventually when I configured Pool while adding Internal Vlan IP it is not Red in Pool availability status.

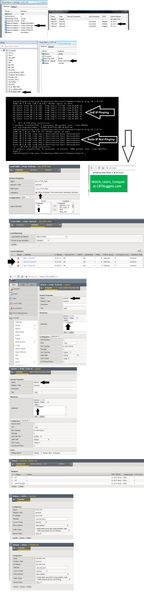

At attached image I uploaded all the settings I have done in VMWare Workstation and F5. Could you please suggest what is the issue could that I am not getting ping reply for node ip from F5 ?
