Forum Discussion

RecontuerSG_258's avatar
RecontuerSG_258
Historic F5 Account
May 04, 2017

iHealth shows 1600 appliance has 8 interfaces whereas 1600 should have only 4?

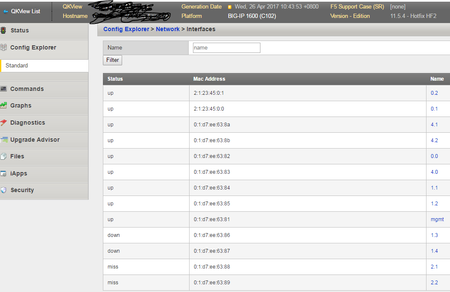

Hi all,   I was analyzing some qkview file to suggest a tech-refresh for existing LTM 1600. According to the datasheet, 1600 has 4x 10/100/1000 interfaces and a separate management port.   Int...
application delivery
BIG-IP
Samir_Jha_52506's avatar
Samir_Jha_52506
Icon for Noctilucent rankNoctilucent
May 04, 2017

Yes, LTM 1600 has 4 interface(1.1,1.2,1.3,1.4). which you can see in

show net interface all
. F5 use hidden interface for internal communication. In above output it seems virtual interface has also created.

For all Interface details

 (tmos) show net interface -hidden all-properties
