how to deploy F5 BIG-IP 4200 V HA Pair for Web Application

By the way, here's some general notes around installations;

Preparation & Design - Device

•   Confirm support is in place
•   Management NIC, TMM Interface and VLAN design and general numbering, tagging, trunking etc.
•   TMOS Software selection
•   Hostname
•   Management service details (DNS, NTP etc.)
•   Authentication methods, remote server details
•   Configuration backup schedule and method
•   Failover and mirroring methods and interfaces
•   Security policies
•   IP Addressing
•   Routing requirements for management and TMM interfaces
Services/Applications
•   Other global settings
•   NATting
•   Service implementations;
o   SSL Certificate requirements and parameters
o   SSL Profile security requirements and parameters
o   Compression requirements and parameters
o   Caching requirements and parameters

Device Configuration

•   Hypervisor stuff if VE – like what???
•   Management network interface IP address and route via LCD or serial
•   Licensing
•   Provisioning
•   Management IP, default account passwords, timezone, Hostname etc.
•   Disk partitions, TMOS upgrades and hotfix installations
•   Administrative Partitions
•   Local user accounts, remote authentication and user roles
•   local host file
•   DNS, NTP, SNMP, SMTP, Logging, log rotation etc.
•   Management tasks such as configuration backups and management routes, service failure actions and time zone
•   Security (password policy, banners, timeouts, source address persistence)
•   Physical Interfaces and Trunks
•   VLANs, STP (not on the 2000s, 2200s, 4000s, or 4200v platforms) , LLDP
•   Route Domains
•   Self IPs, ARP and NDP
•   LTM Routing
•   Failover and Configsync etc.
•   Global settings such as PMTUD, Auto Last Hop and L2 cache aging time

Services/Applications

•   Nodes
•   Health Monitors
•   Pools
•   S/NATs
•   SSL Certificate installation
•   Profiles;
o   Persistence
o   Protocol
o   SSL
o   HTTP
o   HTTP Compression
o   Web Acceleration
•   iRules, Data Groups, iFiles
•   Virtual Servers

We are managing the server through different interface. So you are suggesting to go for one-arm without using SNAT means change servers gateway to F5 floating IP & configured default route on F5 pointing DMZ interface IP. All will be in same subnet.



Is it the best way to deploy it? Is it the recommended method by F5? We don't have any issue to change server IP's, mask & gateway. We are in the design phase. We don't want any issue or limitation after implementation.



I know I am keep repeating the same question again & again but I wanna make sure that things go smooth so sorry for that



Your kind help highly appropriate



Many thanks indeed.



Awaiting for your prompt response

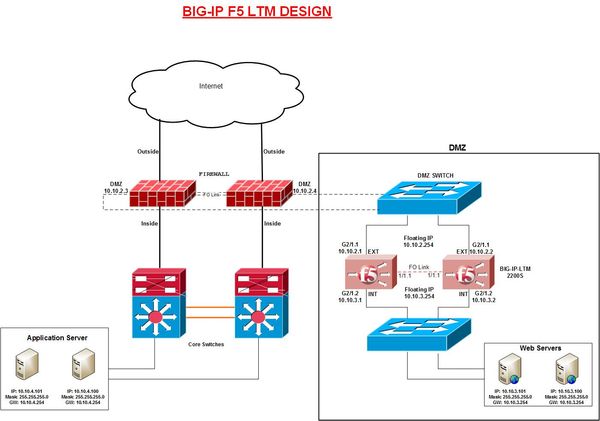

Could you pls have a look enclosed attached diagram & advise





Could you pls have a look enclosed attached diagram & advise





That's exactly it although you are restricting yourself to using the F5s only with traffic flows that involve that DMZ.



Don't forget that you can also load balance between the Web and Application servers.
