NimbostratusFirst time trying to configure F5 on WMware Workstation. Cannot https from my computer to the ip address I assigned it.

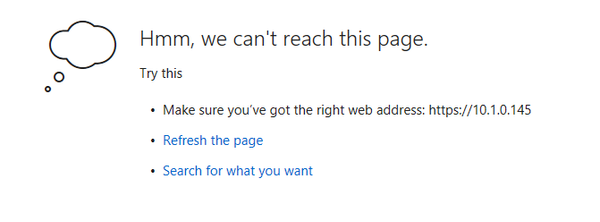

Hello, I am trying to finish the F5 configuration on my VMware Workstation, but when I try connect via browser it cannot reach it.

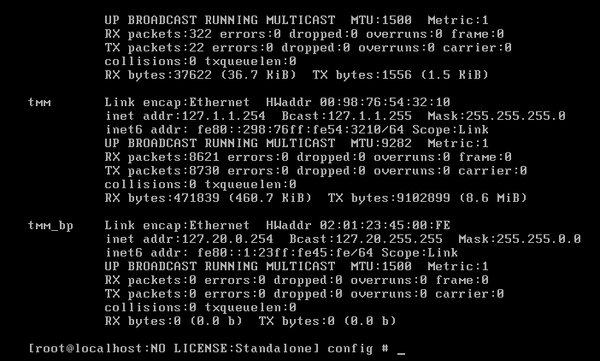

This is the output when I do ifconfig on the F5 VM:
Any suggestions on what should I check would be appreciated!
cjuniorNacreous
Hello,
You could run "ifconfig eth0" and check if MAC address, plus the subnet to the first "network adapter" on VMware BIG-IP machine settings, matches each other. Plus, check if your pc are connect to the same network as the BIG-IP.
Regards.- cjunior
As you MAC address matches to BIG-IP, are you able to ping BIG-IP address "10.1.0.145" ?
The VMnet1 network was marked as "host-only", and it was set on "10.1.0.0/24" subnet? You can check this on menu "Edit > Virtual Network Editor".
Regards.
Merce_322488No, I am not able to ping either.

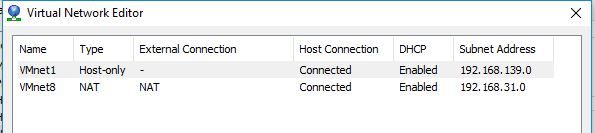

The VMnet1 i set to:
My intention was to connect via https to the BIG-IP, and then change it to the same subnet from there.
What would you change so I can ping or connect via https to 10.1.0.145?
Thank you very much for your assistance.
- cjunior
Your VMnet1 isn't on 10.1.0.0/24. So, you need to put this subnet on VMnet1 or change the BIG-IP management ip address to 192.168.139.0/24 subnet.
Regards.
- Merce_322488
I was able to connect. Thank you for your assistance cjunior!
