F5 Reverse Proxy setup

Hi,

i have started using F5 newly and not comfortable with iRules yet.

Need help for a reverse proxy setup.

have 2 domain urls:

https://exampel.com/Biz/v2-xy/soapbridge/PT/*

https://exampel.com/Biz/v2/api/XY/SI.Data.RPC/SI.Data.RPC/*

these should go to one pool. And

http://site1.com/AD/V1/

http://site1.com/HR/V1/

should go to another pool.

Can some expert here help in writing a iRule to achieve this.

security
  • Mohamed_Ahmed_Kansoh's avatar
    Mohamed_Ahmed_Kansoh
    Nov 21, 2022

    Hi kashif_shahzad ,
    please try this :

    when HTTP_REQUEST {
 if {[HTTP::host] eq "exampel.com"}{
  pool pool_1
 } elseif {[HTTP::host] eq "site1.com"}{
     pool pool_2
}
}

    > Make sure with pools names within irule as it must be identical with pool name itself , usually I copy pool name and paste it within irule to make sure the names are identical.

    > We can do your request by anothe approache , Do you know about Local traffic policy , it is a very useful tool in f5 and can replace iRule in many implementations but not all as irule used in more complex approaches.
    > if you need me to implement your request by Local traffic policy instead of irules , I’d love to do that definitly.

    I hope this helps you.
    regards

  • Mohamed_Ahmed_Kansoh's avatar
    Mohamed_Ahmed_Kansoh
    Icon for MVP rankMVP
    Nov 21, 2022

    Hi kashif_shahzad ,
    please try this :

    when HTTP_REQUEST {
 if {[HTTP::host] eq "exampel.com"}{
  pool pool_1
 } elseif {[HTTP::host] eq "site1.com"}{
     pool pool_2
}
}

    > Make sure with pools names within irule as it must be identical with pool name itself , usually I copy pool name and paste it within irule to make sure the names are identical.

    > We can do your request by anothe approache , Do you know about Local traffic policy , it is a very useful tool in f5 and can replace iRule in many implementations but not all as irule used in more complex approaches.
    > if you need me to implement your request by Local traffic policy instead of irules , I’d love to do that definitly.

    I hope this helps you.
    regards

    • kashif_shahzad's avatar
      kashif_shahzad
      Icon for Nimbostratus rankNimbostratus
      Nov 22, 2022

      Hi Mohamed,

      thanks a lot for your quick response.

      If we use host in the Irule it will open all the undersites from internet.

      if {[HTTP::host] eq "exampel.com"}

      I was thinking a more specific logic to just open those url,s that come with these subdirectories in the url:

      https://exampel.com/Biz/v2-xy/soapbridge/PT/*

      means only  url's that has host exampel.com plus /BIZ/v2-xy/soapbridge/PT/xxxxx ,

      /BIZ/v2-xy/soapbridge/PT/yyyyyy and so on.

      i have tried policies but was unable to get the desired results. may be i was missing something.





      • Mohamed_Ahmed_Kansoh's avatar
        Mohamed_Ahmed_Kansoh
        Icon for MVP rankMVP
        Nov 22, 2022

        Hi kashif_shahzad ,
        yes it simple because it forwards traffic based on host name in urls regardless what exists in the rest of requests , it is only looking for Requests hostnames

        Regards

  • PSFletchTheTek's avatar
    PSFletchTheTek
    Icon for MVP rankMVP
    Nov 22, 2022

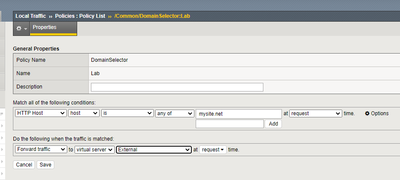

    Its really simple using the Local Traffic Policy as already mentioned.

    You can also make it to another virtual server.

    Which is something called VIP targetting VIP, basically a layer 7 NAT.
    It comes in very useful for use cases when you have only 1 IP, but need to host multiple domains/subdomains.
