F5 Code Upgrade Problem-- Showing The Configuration not yet loaded message

Hello,



While doing Code Upgrade for an HA F5 , when I boot with New Code it shows " The Configuration not yet loaded, if this message persists, it may indicate a configuration problem" . 1st started with Standby node after License reactivation and it shows said message.



If I rollback to Old Code,  Device Comes back normally.

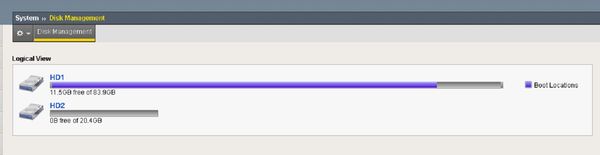

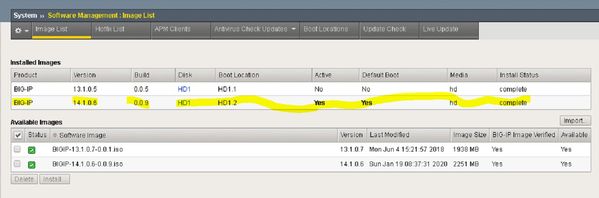

What could be the problem , attached couple of screenshot related to the problem ?



Whats the available size required for version 14.1.0.6 ? Just note that existing code is 13.1.0 and was trying to upgrade to 14.1.0

application delivery
BIG-IP
LTM

8 Replies

  • Simon_Blakely's avatar
    Simon_Blakely
    Icon for Employee rankEmployee
    Jan 19, 2020

    Boot into the upgraded partition.

    Log in via ssh

    From the bash prompt, run

    # tmsh load sys config verify

    This should show the config element that is causing the config load error.

    • Subrun's avatar
      Subrun
      Icon for Cirrostratus rankCirrostratus
      Mar 01, 2020

      It shows output similar to below when I boot with Unsuccessful Load



      [admin@F5_Box_1:Offline:Disconnected] ~ # tmsh load sys config verify

      Validating system configuration...

       /defaults/asm_base.conf

       /defaults/config_base.conf

       /defaults/ipfix_ie_base.conf

       /defaults/ipfix_ie_f5base.conf

       /defaults/low_profile_base.conf

       /defaults/low_security_base.conf

       /defaults/policy_base.conf

       /defaults/wam_base.conf

       /defaults/analytics_base.conf

       /defaults/apm_base.conf

       /defaults/apm_oauth_base.conf

       /defaults/apm_saml_base.conf

       /defaults/app_template_base.conf

       /defaults/classification_base.conf

       /var/libdata/dpi/conf/classification_update.conf

       /defaults/ips_base.conf

       /var/libdata/ips/ips_update.conf

       /defaults/daemon.conf

       /defaults/pem_base.conf

       /defaults/profile_base.conf

       /defaults/sandbox_base.conf

       /defaults/security_base.conf

       /defaults/urldb_base.conf

       /usr/share/monitors/base_monitors.conf

       /defaults/cipher.conf

       /defaults/ilx_base.conf

      Validating configuration...

      Loading schema version: 13.1.0.5

       /config/bigip_base.conf

       /config/bigip_user.conf

       /config/bigip.conf



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:10:48 AST):



      logger[13348]: Re-starting tmm



      2020 Mar 1 10:10:48 F5_Box_1.emera.root.local logger[13348]: Re-starting tmm



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:10:48 AST):



      logger[13357]: Re-starting tmm1



      2020 Mar 1 10:10:48 F5_Box_1.emera.root.local logger[13357]: Re-starting tmm1

       /config/bigip_script.conf

      Loading schema version: 14.1.0.6



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:10:48 AST):



      logger[13366]: Re-starting tmm2



      2020 Mar 1 10:10:48 F5_Box_1.emera.root.local logger[13366]: Re-starting tmm2



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:10:48 AST):



      logger[13375]: Re-starting tmm3



      2020 Mar 1 10:10:48 F5_Box_1.emera.root.local logger[13375]: Re-starting tmm3



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:10:48 AST):



      logger[13384]: Re-starting tmm4



      2020 Mar 1 10:10:48 F5_Box_1.emera.root.local logger[13384]: Re-starting tmm4



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:10:48 AST):



      logger[13393]: Re-starting tmm5



      2020 Mar 1 10:10:48 F5_Box_1.emera.root.local logger[13393]: Re-starting tmm5



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:10:48 AST):



      logger[13402]: Re-starting tmm6



      2020 Mar 1 10:10:48 F5_Box_1.emera.root.local logger[13402]: Re-starting tmm6



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:10:48 AST):



      logger[13411]: Re-starting tmm7



      2020 Mar 1 10:10:48 F5_Box_1.emera.root.local logger[13411]: Re-starting tmm7

      01070311:3: Ciphers list '!EXPORT:!DH:RSA+RC4:RSA+AES:RSA+DES:RSA+3DES:ECDHE+AES:ECDHE+3DES:@SPEED' for profile /Common/serverssl-insecure-compatible denies all clients

      Unexpected Error: Validating configuration process failed.

      [admin@F5_Box_1:INOPERATIVE:Disconnected] ~ #

      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:11:08 AST):



      logger[14393]: Re-starting tmm



      2020 Mar 1 10:11:08 F5_Box_1.emera.root.local logger[14393]: Re-starting tmm



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:11:09 AST):



      logger[14402]: Re-starting tmm1



      2020 Mar 1 10:11:09 F5_Box_1.emera.root.local logger[14402]: Re-starting tmm1



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:11:09 AST):



      logger[14411]: Re-starting tmm2



      2020 Mar 1 10:11:09 F5_Box_1.emera.root.local logger[14411]: Re-starting tmm2



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:11:09 AST):



      logger[14420]: Re-starting tmm3



      2020 Mar 1 10:11:09 F5_Box_1.emera.root.local logger[14420]: Re-starting tmm3



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:11:09 AST):



      logger[14429]: Re-starting tmm4



      2020 Mar 1 10:11:09 F5_Box_1.emera.root.local logger[14429]: Re-starting tmm4



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:11:09 AST):



      logger[14438]: Re-starting tmm5



      2020 Mar 1 10:11:09 F5_Box_1.emera.root.local logger[14438]: Re-starting tmm5



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:11:09 AST):



      logger[14447]: Re-starting tmm6



      2020 Mar 1 10:11:09 F5_Box_1.emera.root.local logger[14447]: Re-starting tmm6



      Broadcast message from systemd-journald@F5_Box_1.emera.root.local (Sun 2020-03-01 10:11:09 AST):



      logger[14456]: Re-starting tmm7



      2020 Mar 1 10:11:09 F5_Box_1.emera.root.local logger[14456]: Re-starting tmm7



      • Subrun's avatar
        Subrun
        Icon for Cirrostratus rankCirrostratus
        Mar 01, 2020

        Is it because of following error ? Just note that This SSL Profile is no where we called explicitely.



        01070311:3: Ciphers list '!EXPORT:!DH:RSA+RC4:RSA+AES:RSA+DES:RSA+3DES:ECDHE+AES:ECDHE+3DES:@SPEED' for profile /Common/serverssl-insecure-compatible denies all clients

        Unexpected Error: Validating configuration process failed.



  • Subrun's avatar
    Subrun
    Icon for Cirrostratus rankCirrostratus
    Jan 27, 2020

    Hello,



    I actually rollbacked and to try that command I need maintenance window. However I ran same during Pre Upgrade and actually had one error. But I did overlook that as I do not have any active VIP running for that reference. Does this stop me to load the New Code ? And I am actually copying config from Old Volume to New Volume.



    [User@F5_Peer :Active:In Sync] ~ # tmsh load /sys config verify

    Validating system configuration...

    /defaults/asm_base.conf

    /defaults/config_base.conf

    /defaults/ipfix_ie_base.conf

    /defaults/ipfix_ie_f5base.conf

    /defaults/low_profile_base.conf

    /defaults/low_security_base.conf

    /defaults/policy_base.conf

    /defaults/wam_base.conf

    /defaults/analytics_base.conf

    /defaults/apm_base.conf

    /defaults/apm_oauth_base.conf

    /defaults/apm_saml_base.conf

    /defaults/app_template_base.conf

    /defaults/classification_base.conf

    /var/libdata/dpi/conf/classification_update.conf

    /defaults/ips_base.conf

    /var/libdata/ips/ips_update.conf

    /defaults/daemon.conf

    /defaults/pem_base.conf

    /defaults/profile_base.conf

    /defaults/sandbox_base.conf

    /defaults/security_base.conf

    /defaults/urldb_base.conf

    /usr/share/monitors/base_monitors.conf

    /defaults/cipher.conf

    /defaults/ilx_base.conf

    Validating configuration...

    /config/bigip_base.conf

    /config/bigip_user.conf

    /config/bigip.conf

    /config/bigip_script.conf

    01070734:3:Configuration error: Can't associate firewall policy (/Common/Host.Domain.com.app/Host.Domain.com_firewall) folder does not exist

    Unexpected Error: Validating configuration process failed.

  • Fallout1984's avatar
    Fallout1984
    Icon for Cirrocumulus rankCirrocumulus
    Jan 29, 2020

    I would open a support case and ask that an engineer be available to assist during your scheduled maintenance window. I've had a similar issue happen and it ended up taking some time to resolve with the tech's assistance.

  • jaikumar_f5's avatar
    jaikumar_f5
    Icon for Noctilucent rankNoctilucent
    Jan 30, 2020

    Can you try with partition all verify... It looks like you have partitions across and the config fails to load others and it stops verify.
