Deploy APM per-request policy and Application Traffic Insight(former Device ID+)

Hi F5 Community,

I tried to deploy Application Traffic Insight to APM Zero Trust environment using the JavaScript Tag. But I couldn't find "login.inc" file in per-request policy customization screen on GUI.

<Question>

Is there any JavaScript Tag insert method in per-request policy?

<Test environment>

-BIG-IP : v16.1.1

-Module : only APM

-Application Traffic Insight deployment method: JavaScript Tag

-Zero Trust config name: IAP-single-proxy

<Test procedure>

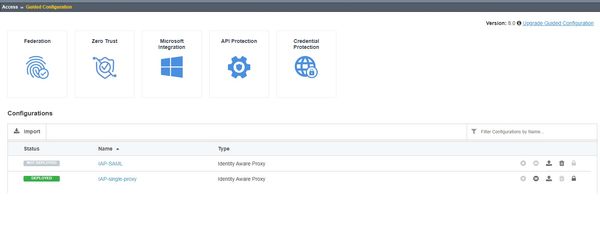

1. Deploy a Zero Trust configuration using Guided Configuration



2.modify "logon.inc" page in per-request policy to add JavaScript Tag

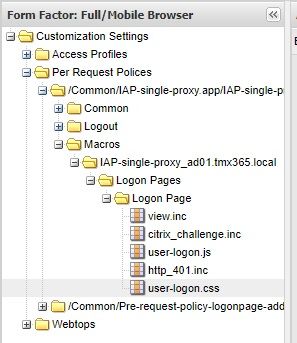

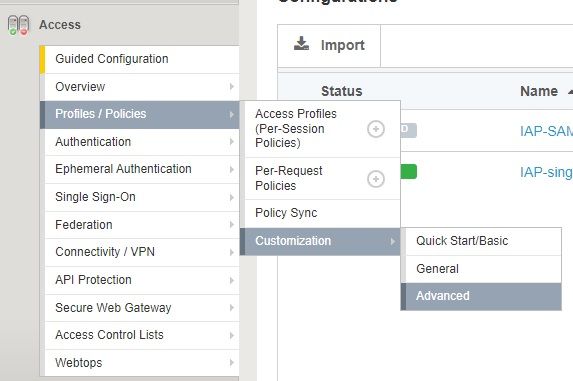

But, I couldn't find "logon.inc" page in per-request policices customization menu and APM local directory.

# find / -name 'logon.inc'
/var/sam/www/client/customization-source/Common/standard/logon/default_logon/de/logon.inc
/var/sam/www/client/customization-source/Common/standard/logon/default_logon/zh-tw/logon.inc
--- snip ---
/opt/.sdm/var/config/rest/iapps/f5-iappslx-access-exchange/nodejs/logon.inc

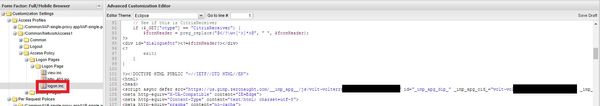

I found out "logon.inc" in "per-SESSION policy" and I could insert a JavaScript Tag and get a correct test result.



Thanks,

Kenji Omori
