NimbostratusCan I create backup default route?
I have two internet line in front of big ip ltm.

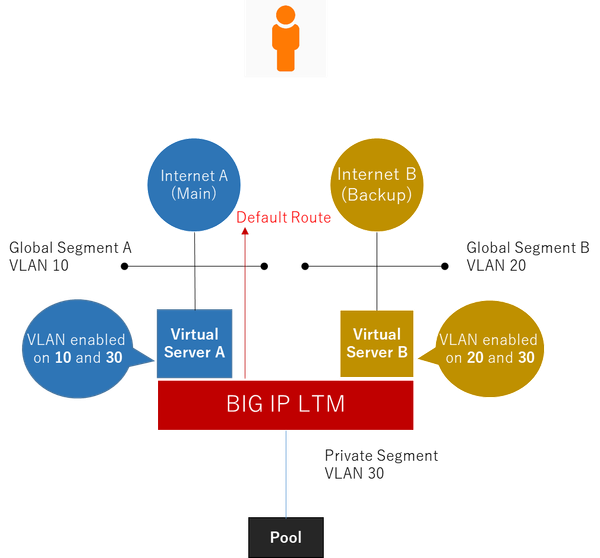

This is a sample network diagram.
Can I add two default route to BIG IP LTM?
If there is no standard way, how can it be implementated?
My image is like a Cisco command.
ip route 0.0.0.0 0.0.0.0 x.x.x.x
ip route 0.0.0.0 0.0.0.0 y.y.y.y 10
BIG-IP system has the ability to configure multiple default gateways.
Refer Article : https://support.f5.com/csp/article/K15582
SamirMVP
BIG-IP system has the ability to configure multiple default gateways.
Refer Article : https://support.f5.com/csp/article/K15582
tatsuThank you for your reply.
In this case, it seems to that the route is loadballanced.
How do I configure active-standy ?
- tatsu
Ah...

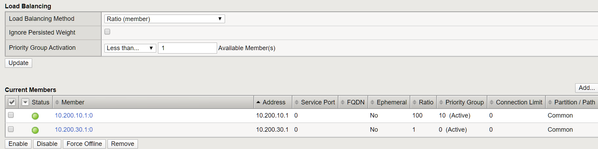

When I use priority group, I can use active-standby pool, rigiht?
Like this.
10.200.10.1 --> ratio 100 / priority group 010.200.20.1 -->ratio 1 / priority group 10Mistake.
10.200.10.1 --> priority group 10
10.200.30.1 --> priority group 0
10.200.10.1 is active gateway, normaly used.
If 10.200.10.1 is down, gateway change to 10.200.30.1.
- Samir
Hope your issue has solved.. thanks for updating DC team
