Can I create backup default route?

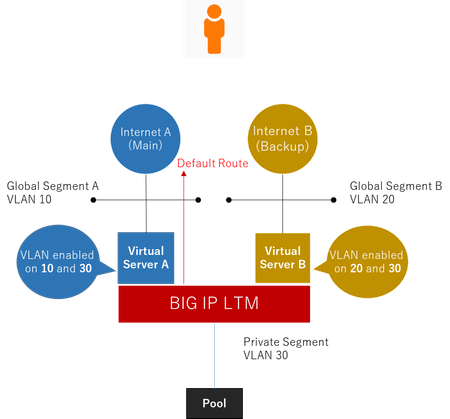

I have two internet line in front of big ip ltm. This is a sample network diagram. ​ Can I add two default route to BIG IP LTM? If there is no standard way, how can it be implementated? ​ ...
BIG-IP
cloud
LTM
  • Samir's avatar
    Samir
    Feb 06, 2020

    BIG-IP system has the ability to configure multiple default gateways.

    ​

    Refer Article : https://support.f5.com/csp/article/K15582

tatsu's avatar
tatsu
Icon for Nimbostratus rankNimbostratus
Feb 06, 2020

Ah...

When I use priority group, I can use active-standby pool, rigiht?

​

Like this.

10.200.10.1 --> ratio 100 / priority group 0

10.200.20.1 -->ratio 1 / priority group 10

Mistake.

10.200.10.1 --> priority group 10

10.200.30.1 --> priority group 0







10.200.10.1 is active gateway, normaly used.

If 10.200.10.1 is down, gateway change to 10.200.30.1.

​
