Forum Discussion

Stefan_Klotz's avatar
Stefan_Klotz
Icon for Cumulonimbus rankCumulonimbus
Jan 09, 2023

BIG-IQ statistics in dashboard missing/interrupted

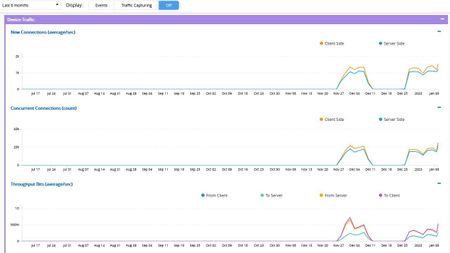

Dear all, any idea, why statistics data is missing/interrupted for a few days like in the following screenshot?   Or how I can verify any issues? In which logs can I found any hints? The mi...
application delivery
BIQ-IQ
statistics
  • Stefan_Klotz's avatar
    Stefan_Klotz
    May 11, 2023

    We could solve the issue in the meanwhile together with official F5-support.

    It's related to ID1044337:

    This can occur intermittently during statistics collection from BIG-IP to BIG-IQ and can happen when the retention processor causes a loss of some retention records (book-keeper-start entries are lost while book-keeper-end entries are retained).”

    From the BIG-IQ command line:

    1) Make a backup of the book-keeper-end index:

    curl -sk http://localhost:9200/_reindex?pretty -H "content-type: application/json" -d '{"source":{"index":"book-keeper-end"},"dest":{"index":"bu-book-keeper-end"}}'

    2) Delete the book-keeper-end index:

    curl -skX DELETE http://localhost:9200/book-keeper-end

    Note:  The book-keeper-end index will be rebuilt automatically and will cause no loss of statistic data.



    It took some time (I don't know how long exactly), but on the next day I could see statistics data back to one year again.

    Regards Stefan 🙂

Stefan_Klotz's avatar
Stefan_Klotz
Icon for Cumulonimbus rankCumulonimbus

Sorry for late reply.

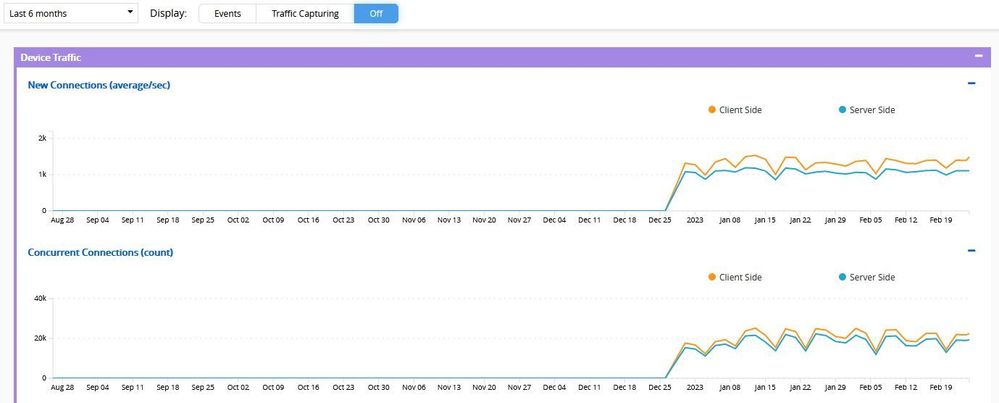

I don't found any indications in any of the mentioned logs. Since end of December logging for all of our BIG-IPs seems to run stable again as you can see in the following screenshot:

To be more precise and the reason why I'm asking is, that I wonder if and how recording these statistics data depends on the free disc space of the BIG-IQ itself (not the DCDs). Background: until end of last year the "/shared" partition of the BIG-IQ was full, as there were too much ucs-files from all of our BIG-IPs. After christmas, one BIG-IP cluster was removed, which released some GB (because all corresponding ucs-files where deleted as well). Additionally I increased this partition to 100GB beginning of January. And as you can see in the above screenshot, statistics data is available again since around that date!

Are there any dependencies or how can I verify, why there are no statistics data before christmas 2022?

I don't expect any issue with the BIG-IPs or the network. It seems for me like a local issue with the BIG-IQ.

Are there any additional information/documentation about the availability of the statistics data?

Thank you!



Regards Stefan 🙂

Stefan_Klotz's avatar
Stefan_Klotz
Icon for Cumulonimbus rankCumulonimbus
Mar 06, 2023

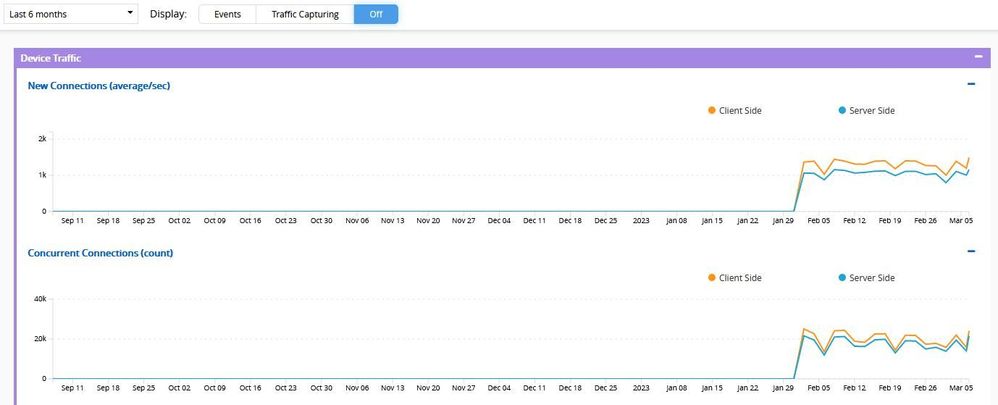

It seems only around the last 30 days are stored? I changed nothing and now also the statistics from January are gone 😞

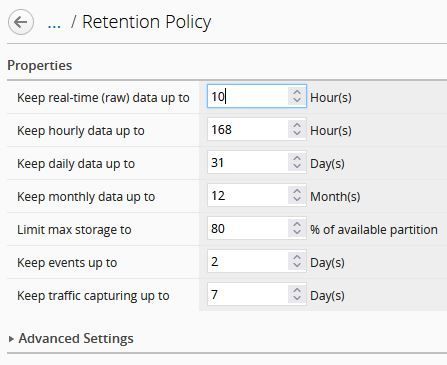

I found the following settings, which I assume are default:

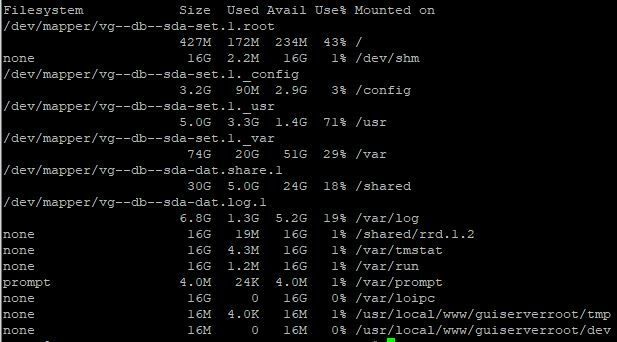

But the "max storage Limit" is not reached:


Any other ideas, why statistics data are not stored up to one year? Or how can I further investigate this issue?
Thank you!

Regards Stefan 🙂
