Forum Discussion

Michal_Kaiser's avatar
Michal_Kaiser
Icon for Nimbostratus rankNimbostratus
Apr 12, 2021

BIG-IP LTM

Hi, I am trying to run a small lab in Vmware for my school project where I have an F5 big-ip load LTM with 30-day trial and one client connected to the external interface, and one server connected to...
application delivery
BIG-IP
LTM
vmware
Daniel_Wolf's avatar
Daniel_Wolf
Icon for MVP rankMVP
Apr 20, 2021

Hi Michal,



hope your school project is still alive and you didn't abandon it, because you didn't get an answer here for 8 days. Did you configure Self IPs on the subnet?

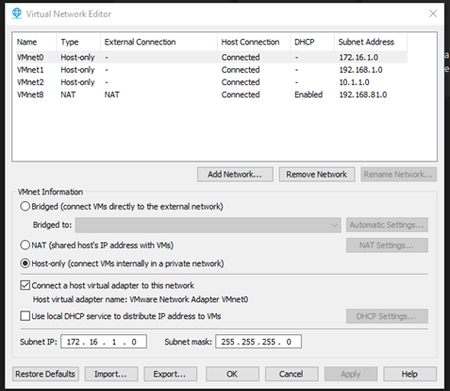

Your config in VMware looks correct. In order for the F5 to communicate with the server you will have to configure a Self IP address in the INTERNAL VLAN.

Take a look at this manual chapter.



If you get stuck, get back to me. I guess we can have a shared screen and I can help you.



KR

Daniel
