Big-IP LTM VE load balance configuration

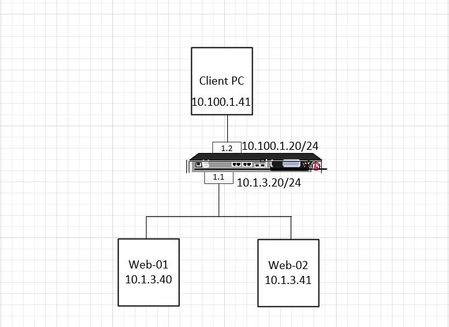

Hi Everyone,   I've setup a LTM VE on my VMware Workstation. I got 2 Windows webservers and 2 Windows VM Clients. Below is my setup on LTM VE GUI:   Network: Interface 1.1 (untagged)-> ...
application delivery
BIG-IP
big-ip ltm ve
  • KevinA_246454's avatar
    KevinA_246454
    Aug 08, 2018

    Hi Txn



    The best place to start from my point of view is the is the vlab package it contains lot of hands on labs you can do that covers a vast majority of the f5 ltm features.



    You can find the vlab package on the f5 downloads site.



KevinA_246454's avatar
KevinA_246454
Icon for Cirrostratus rankCirrostratus

Can you ping the virtual server from the client by default the virtual server will respond to ICMP ?



Is the internal vlan self ip address/floating the default gateway for the servers ? if no configure auto map on the virtual server and then test



txn_94940's avatar
txn_94940
Icon for Nimbostratus rankNimbostratus
Aug 07, 2018

Yes, I can ping the virtual server (10.100.1.50) from my Client(10.100.1.41). Yes, by default virtual server is responding to ICMP.



No, the webservers are using their network default gateway (10.1.3.1). How do I can configure auto map on the virtual server and test? Sorry for the newbie questions and please bare with me.
