Forum Discussion
NimbostratusBIG-IP 14.1 shows only one disk partition
In BIG-IP 14.1, if I go to /mgmt/sys/disk-info endpoint I can only see 1 Disk partition (this partition is /appdata), where there should be at least a couple of them listed. I have tested the same thing in BIG-IP 14.0 and 13.1, but all the Disk Partitions are displayed as they should in that version. Is this an expected behaviour of the new version?
Are you referring to
or something else? Can you provide the tmsh equivalent command?/mgmt/tm/analytics/disk-info
MihaS_387165No, I am not referring to this. Since I could not find the tmsh command for this, I will give you an example. The picture with one partition is on BIG-IP version 14.1 while the one with multiple disk partitions was taken on version 13.1.
- MihaS_387165

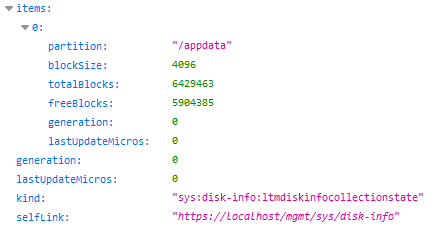

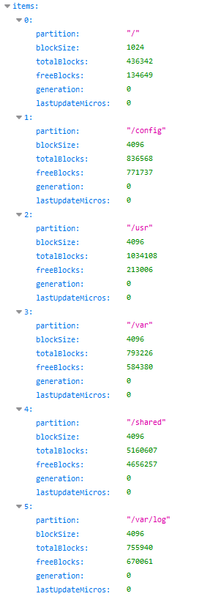

The upper image was taken on BIG-IP version 14.1, while the following image was taken on a working 13.1 version.
I assume you are after the
equivalent. Try using thetmsh show sys disk directory
iControl REST endpoint: e.g.,/mgmt/tm/sys/disk/directory/statscurl -sku : https:///mgmt/tm/sys/disk/directory/stats
alesk_387057I have the same problem(listing partitions) on version 14.1, on 14.0 I can get all partitions from []( ,on) 14.1 I get only /appdata while on older versions(14.0,13,... I can see all partitions.
Any suggestion ?
As described above, for obtaining the disk information per directory, use the
endpoint./mgmt/tm/sys/disk/directory/stats
