apm question

Okay, so "4f553d616f62746f74703b" is what is returned in the RADIUS auth, and what populates the session.radius.last.attr.class session variable. I still don't get how you derive the aobtotp radius group id from that value.

Hi Kevin, I selected and then right clicked on the value.And go the copy-> Bytes->Printable Test Only.Later I pasted the value and I derived the aobtotp radius group id.

Okay, this was a fun one. You would need to convert this HEX value to ASCII, which is what WireShark is doing. So in an iRule attached to the VIP, insert the following:

when ACCESS_POLICY_AGENT_EVENT {
    if { [ACCESS::session data get session.radius.last.attr.class] ne "" } {
        set bin [ACCESS::session data get session.radius.last.attr.class]

         convert this HEX string for binary format input
        if { [catch {
            set ascii ""
            for { set i 0 } { $i < [string length $bin] } { incr i 2 } {
                append ascii "0x[string range $bin $i [expr $i + 1]] "
            }
             binary format HEX data to ascii and add to an APM session variable
            [ACCESS::session data set session.radius.last.attr.class.decoded [binary format c* $ascii]
        } err] } {
            log local0. "error = $err"
        }
    }
}

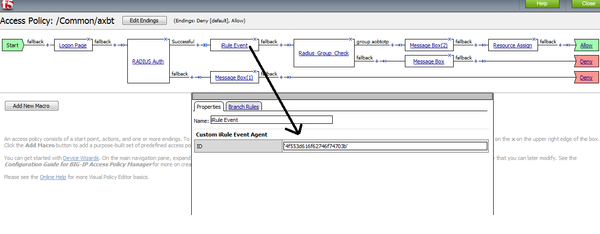

The ACCESS_POLICY_AGENT_EVENT event is triggered from an iRule event agent inserted into the visual policy (after the RADIUS auth) agent. If the session.radius.last.attr.class value is populated from a good auth:

1. The HEX string will be formatted for binary conversion. So "4f553d616f62746f74703b" will become:

   "0x4f 0x55 0x3d 0x61 0x6f 0x62 0x74 0x6f 0x74 0x70 0x3b"


2. The new value will then be converted to ASCII and shoved into a new session variable: session.radius.last.attr.class.decoded, which should become:

   OU=aobtotp;


3. From there you can evaluate this value in your access policy and beyond.

There is no dollar sign before the err variable in the catch statement. Please take a closer look at my previous iRule sample. Notice the $err value in the log local0. statement, and the err variable in the catch statement immediately before that line.

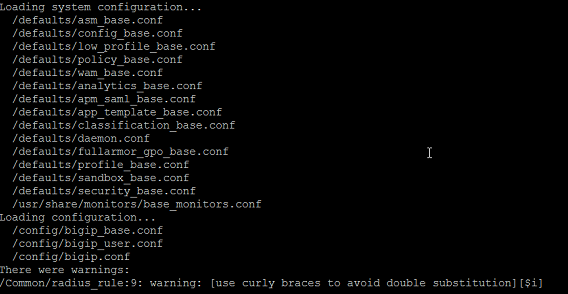

Hi Kevin, Thank you for your all answers. I edited the $err value and I run load sys conf command but get the use curly error message . I also get the expected integer but got "0x0x" error message. I could not sure the second error message is due to the curl error. I also used "0x4f 0x55 0x3d 0x61 0x6f 0x62 0x74 0x6f 0x74 0x70 0x3b" , "4f553d616f62746f74703b" values on the irule event in policy but the same expected integer error message. Thanks again,

Can you show your current iRule?

Hi Kevin, My current irule ;

when ACCESS_POLICY_AGENT_EVENT { if { [ACCESS::session data get session.radius.last.attr.class] ne "" } { set bin [ACCESS::session data get session.radius.last.attr.class]

     convert this HEX string for binary format input
    if { [catch {
        set ascii ""
        for { set i 0 } { $i < [string length $bin] } { incr i 2 } {
            append ascii "0x[string range $bin $i [expr $i + 1]] "
        }
         binary format HEX data to ascii and add to an APM session variable
        [ACCESS::session data set session.radius.last.attr.class.decoded [binary format c* $ascii]]
    } err ] } {
        log local0. "error = $err"
    }
}

}

Thanks,

Let's throw some additional logging in there:

when ACCESS_POLICY_AGENT_EVENT {
    if { [ACCESS::session data get session.radius.last.attr.class] ne "" } {
        set bin [ACCESS::session data get session.radius.last.attr.class]

        log local0. "bin = $bin"

         convert this HEX string for binary format input
        if { [catch {
            set ascii ""
            for { set i 0 } { $i < [string length $bin] } { incr i 2 } {
                append ascii "0x[string range $bin $i [expr $i + 1]] "
            }

            log local0. "ascii = $ascii"

             binary format HEX data to ascii and add to an APM session variable
            [ACCESS::session data set session.radius.last.attr.class.decoded [binary format c* $ascii]

            log local0. "decoded = [binary format c* $ascii]"

        } err] } {
            log local0. "error = $err"
        }
    }
}

Please test and report the results.

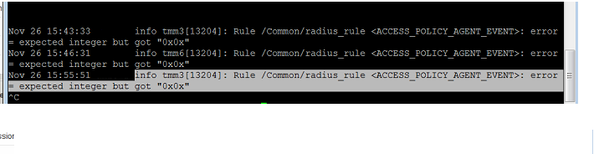

Hi Kevin, I tested the rule and got the below log messages.

info tmm5[13204]: Rule /Common/radius_rule : bin = 0x4f553d616f62746f74703b info tmm5[13204]: Rule /Common/radius_rule : ascii = 0x0x 0x4f 0x55 0x3d 0x61 0x6f 0x62 0x74 0x6f 0x74 0x70 0x3b info tmm5[13204]: Rule /Common/radius_rule : error = expected integer but got "0x0x"

Interesting. Your hex-encoded binary string starts with "0x", which is getting added to the ascii string. Probably the easiest fix would be something like this:

for { set i 0 } { $i < [string length $bin] } { incr i 2 } {
    if { not ( [string range $bin $i [expr $i + 1]] equal "0x" ) } {
        append ascii "0x[string range $bin $i [expr $i + 1]] "
    }
}
