apm question

Hi Kevin, I tried the irule but got some syntax error which is :

error_string         : 01070151:3: Rule [/Common/radius_rule] error: /Common/radius_rule:9: error: [parse error: PARSE syntax 422 {syntax error in expression " not ( [string range $bin $i [expr $i + 1]] equal "0x" ) ": variable references require preceding $}][{ not ( [string range $bin $i [expr $i + 1]] equal "0x" ) }]

when ACCESS_POLICY_AGENT_EVENT { if { [ACCESS::session data get session.radius.last.attr.class] ne "" } { set bin [ACCESS::session data get session.radius.last.attr.class]

     convert this HEX string for binary format input
    if { [catch {
        set ascii ""
        for { set i 0 } { $i < [string length $bin] } { incr i 2 } {
         if { not ( [string range $bin $i [expr $i + 1]] equal "0x" ) }{
            append ascii "0x[string range $bin $i [expr $i + 1]] "
        }
    }
         binary format HEX data to ascii and add to an APM session variable
        [ACCESS::session data set session.radius.last.attr.class.decoded [binary format c* $ascii]]
    } err ] } {
        log local0. "error = $err"
    }
}

}

Thanks,

Try this:

when ACCESS_POLICY_AGENT_EVENT {
    if { [ACCESS::session data get session.radius.last.attr.class] ne "" } {
        set bin [ACCESS::session data get session.radius.last.attr.class]

        log local0. "bin = $bin"

         convert this HEX string for binary format input
        if { [catch {
            set ascii ""
            for { set i 0 } { $i < [string length $bin] } { incr i 2 } {
                if { not ( [string range $bin $i [expr $i + 1]] equals "0x" ) } {
                    append ascii "0x[string range $bin $i [expr $i + 1]] "
                }
            }

            log local0. "ascii = $ascii"

             binary format HEX data to ascii and add to an APM session variable
            [ACCESS::session data set session.radius.last.attr.class.decoded [binary format c* $ascii]

            log local0. "decoded = [binary format c* $ascii]"

        } err] } {
            log local0. "error = $err"
        }
    }
}

Hi Kevin, I got the "error = invalid command name "" " error message .Is the error message for irule or the access policy ?

info tmm3[12768]: Rule /Common/radius_rule : bin = 0x4f553d616f62746f74703b info tmm3[12768]: Rule /Common/radius_rule : ascii = 0x4f 0x55 0x3d 0x61 0x6f 0x62 0x74 0x6f 0x74 0x70 0x3b info tmm3[12768]: Rule /Common/radius_rule : error = invalid command name ""

Remove the square bracket from the front of the ACCESS::session data set command. A Typo.

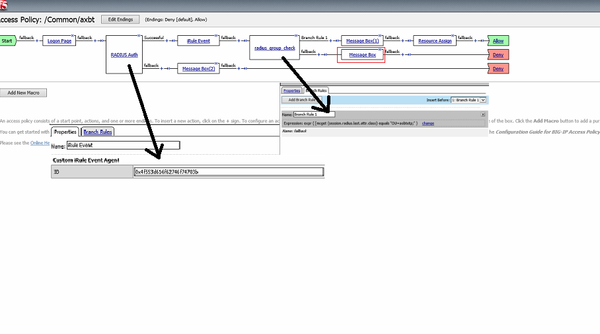

Hi Kevin, I did not get any error message but at this time I was redirected to the radius group check's fallback section in the policy after I tried to login process.my policy is as follow ;

info tmm3[12768]: Rule /Common/radius_rule : bin = 0x4f553d616f62746f74703b info tmm3[12768]: Rule /Common/radius_rule : ascii = 0x4f 0x55 0x3d 0x61 0x6f 0x62 0x74 0x6f 0x74 0x70 0x3b info tmm3[12768]: Rule /Common/radius_rule : decoded = OU=aobtotp;

Thanks,

sorry, the left arrow mark would be for the irule event in the policy.it is not for the radius atuhentication section.

Can't really read your Radius group check expression. What does it say?

I'm guessing it should read:

expr { [mcget {session.radius.last.attr.class.decoded}] equals "OU=aobtotp;" }
