APM LDAP auth agent ldap bind works but search fails..

My internal lab dc server has the domain "test.internal".

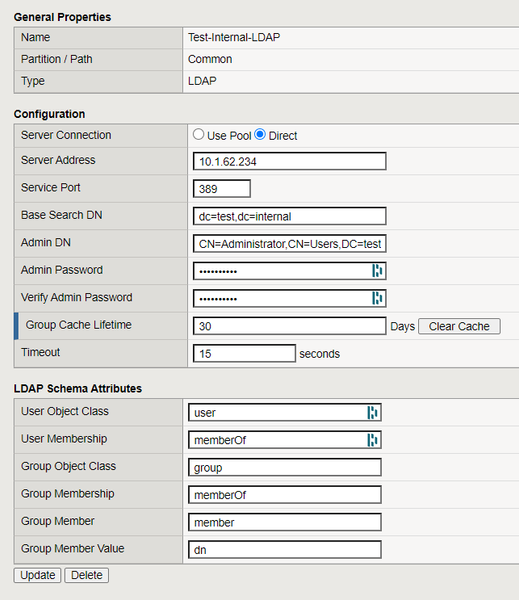

Here is my LDAP auth config, the connection is good and I see the groups showing up.

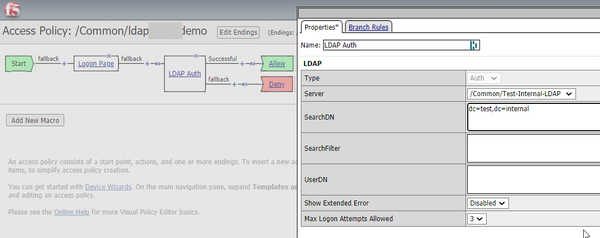

Then I am using the LDAP auth agent, and the searchDN is same as base DN but I think something in the search Filter doesn't work.

I have tried "sAMAccountName" in the SF and it still fails. I have added the APM log errors below as well.

APM session errors

/Common/ldap-xxx-demo:Common:a97a9d8d: LDAP module: ldap_simple_bind_s() successful, dn: CN=Administrator,CN=Users,DC=test,DC=internal

/Common/ldap-xxx-demo:Common:a97a9d8d: LDAP Module: Failed to make ldap_search in '' with filter '' and scope '2'. Protocol error.

/Common/ldap-xxx-demo:Common:a97a9d8d: LDAP agent: Auth (logon attempt:0): authenticate with 'bob' failed





BIG-IP Access Policy Manager (APM)
security
  • Daniel_Wolf's avatar
    Daniel_Wolf
    Jan 05, 2021

    Hi David,



    try to provide a SearchFilter, in a format like sAMAccountName=%{session.logon.last.username}



    KR

  • Daniel_Wolf's avatar
    Daniel_Wolf
    Icon for MVP rankMVP
    Jan 05, 2021

    Hi David,



    try to provide a SearchFilter, in a format like sAMAccountName=%{session.logon.last.username}



    KR

    • David_M's avatar
      David_M
      Icon for Cirrostratus rankCirrostratus
      Jan 06, 2021

      thanks it worked . .the correct format is as below in the search filter.



      (sAMAccountName=%{session.logon.last.username})
