adding new Vlans

I'm having an issue with a new vlan I added.   We currently have a 1600 HA pair. I added the new Vlan to the Vlans under "Network" I added it to the Trunk The Vlan is added to the switch also. I ...
application delivery
design
LTM
management
TMSH
vlan
Eric_St__John's avatar
Eric_St__John
Icon for Employee rankEmployee
Apr 01, 2015

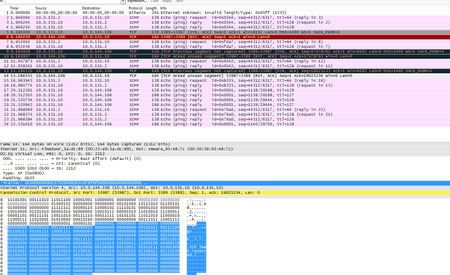

I don't see a SYN packet in the capture. Is there another route from your workstation to the 10.0.151.0 network?



If the SYN did not come through the BIG-IP it will send a reset on the return packets. This behavior can be changed by enabling loose initiate in the fast L4 profiles assigned to the forwarding virtual server, or correct the asynchronous routing.
