Policies and iRules. iRules and policies. Usage can be either/or OR both/and, but where do you draw the lines of operational control? Join Jason at 10:45 pacific time on Thursday, December 8, 2022 to work through a few scenarios.

Your signature Kai_Wilke should be good for this session 😁

If you want to join me on camera...here's the guest link to come backstage: https://streamyard.com/8u6x7mreyk And VSCode live share: https://prod.liveshare.vsengsaas.visualstudio.com/join?57B8EF9A54EBE300681E1CA6DDC6531ABFEB

No way... i will be the random dude in the chat asking silly questions. 😂 Cheers, Kai

I'll have live coding from vscode working too, so you can join and write away!

Coding Live: Policies & iRules - Dec 8, 2022

Kai_Wilke
MVP
Dec 05, 2022
😬

Cheers, Kai
- buulam
  Admin
  Dec 05, 2022
  Your signature Kai_Wilke should be good for this session 😁
JRahm
Admin
Dec 08, 2022
If you want to join me on camera...here's the guest link to come backstage: https://streamyard.com/8u6x7mreyk

And VSCode live share: https://prod.liveshare.vsengsaas.visualstudio.com/join?57B8EF9A54EBE300681E1CA6DDC6531ABFEB
- buulam
  Admin
  Dec 08, 2022
  yeah! Come on Kai_Wilke Daniel_Wolf ?
  - Kai_Wilke
    MVP
    Dec 08, 2022
    No way... i will be the random dude in the chat asking silly questions. 😂

    Cheers, Kai

Kai_Wilke

MVP

Dec 08, 2022

Hi Folks,

for those how are interested knowing the performance difference of LTP vs. iRules.

Passthrough Setup:

The passthrough setup had the purpose to figure out the performance my naked setup to allow comparsion of the "noice"

when CLIENT_ACCEPTED {
	set time(Passthrough) [clock clicks]
}
when HTTP_REQUEST {
	lappend time(Passthrough) [clock clicks]
	eval $static::debug_page
}

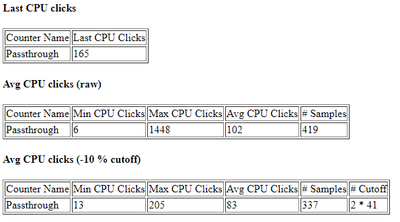

Without any LTP or additional iRule code in between CLIENT_ACCEPTED and HTTP_REQUEST it took a minimum of 13 clicks and an average of 83 clicks per HTTP request (after removing 10% slowest/fastes results) .

iRule Setup:

To test the performance of iRules I've added a [switch] statement consisting 50+default hostnames and a pool assigment.

when CLIENT_ACCEPTED {
	set time(iRULE_50switch_default) [clock clicks]
}
when HTTP_REQUEST {
	switch -exact -- [HTTP::host] {
		"www.domain-01.de" { pool www.itacs.de }
		"www.domain-02.de" { pool www.itacs.de }

		... truncated ...

		"www.domain-49.de" { pool www.itacs.de }
		"www.domain-50.de" { pool www.itacs.de }
		default { pool REST_API }
	}
	lappend time(LTP_50rules_default) [clock clicks]
	eval $static::debug_page

}

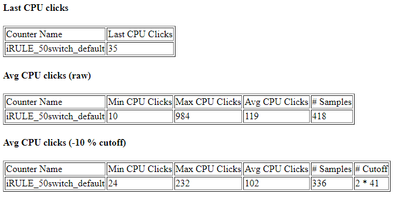

The test was triggering the "default" condition of the [switch] (worst case) and it took a minimum of 24 clicks and an average of 102 clicks per HTTP request (after removing 10% slowest/fastes results).

Local Traffic Policy Setup:

To test the performance of Local Traffic Policies I've added a first match LTP policy consisting 50+1 (exist) hostnames and a pool assigment rules.

when CLIENT_ACCEPTED {
	set time(LTP_50rules_default) [clock clicks]
}
when HTTP_REQUEST {
	lappend time(LTP_50rules_default) [clock clicks]
	eval $static::debug_page
}

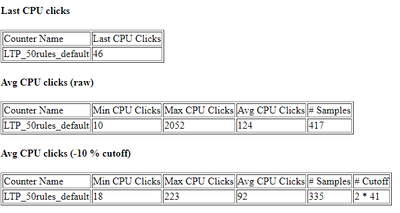

The test was triggering the "default" condition of the LPT and it took a minimum of 18 clicks and an average of 92 clicks per HTTP request (after removing 10% slowest/fastes results).

Results:

The comparsion of Passthrough vs iRule vs LTP Setup is basically a minimum of 13 / 24 / 18 clicks and an average of 83 / 102 / 92 clicks per HTTP request. LPT is round about twice as fast at parsing 50+1 hostnames and assigning a pool.

So can we all agree that both methods are lightning fast and that LTP still sück because it cant even craft a HTTP response? 🤣

Cheers, Kai

JRahm

Admin

Dec 09, 2022

just for giggles, is the iRule switch performance any different if the switch cases are bound since all the pool destinations are the same? Example:

when CLIENT_ACCEPTED {
	set time(iRULE_50switch_default) [clock clicks]
}
when HTTP_REQUEST {
	switch -exact -- [HTTP::host] {
		"www.domain-01.de" -
		"www.domain-02.de" -

		... truncated ...

		"www.domain-49.de" -
		"www.domain-50.de" { pool www.itacs.de }
		default { pool REST_API }
	}
	lappend time(LTP_50rules_default) [clock clicks]
	eval $static::debug_page

}

similar for the policy, a single condition with all the hosts in the matches any field...

Kai_Wilke

MVP

Dec 09, 2022

Hi Jason,

for the [switch] it does basically dont matter if multiple condition trigger the same script or different scripts. The overhead from evaluating 50 strings is the same...

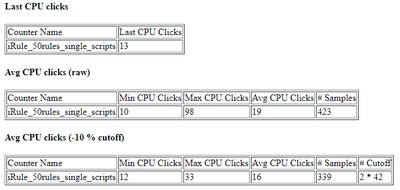

Single Script:

when HTTP_REQUEST {
	lappend time(iRule_50rules_single_scripts) [clock clicks]
	switch -exact -- [HTTP::host] {
		"www.domain-01.de" -
		"www.domain-02.de" -
		... truncated ...
		"www.domain-48.de" -
		"www.domain-49.de" -
		"www.domain-50.de" { pool www.itacs.de }
		default { pool REST_API }
	}
	lappend time(iRule_50rules_single_scripts) [clock clicks]
	eval $static::debug_page
}

Many individual Scripts:

when HTTP_REQUEST {
	lappend time(iRule_50rules_single_scripts) [clock clicks]
	switch -exact -- [HTTP::host] {
		"www.domain-01.de" { pool www.itacs.de }
		"www.domain-02.de" { pool www.itacs.de }
		... truncated ...
		"www.domain-50.de" { pool www.itacs.de }
		"www.domain-50.de" { pool www.itacs.de }
		default { pool REST_API }
	}
	lappend time(iRule_50rules_single_scripts) [clock clicks]
	eval $static::debug_page
}

But it does matter if you trigger [switch]'s first (see below) or default (see above) conditions....

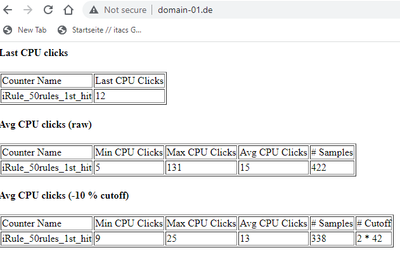

1st hit:

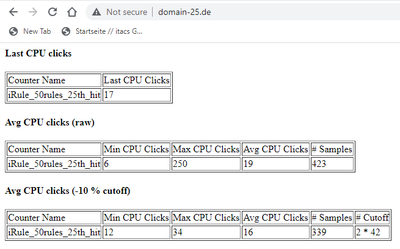

25th hit:

50th hit:

Old facts remaining the same. The more item in the list and the deeper your have to dig into the list the longer it takes to evaluate it.

Lets see if we can find some better replacements for [switch]...

Using [if]:

when HTTP_REQUEST {
	lappend time(iRule_5if_1st_hit) [clock clicks]
	if { [HTTP::host] eq "www.domain-01.de" } then { pool www.itacs.de }
	elseif { [HTTP::host] eq "www.domain-02.de" } then { pool www.itacs.de }
	elseif { [HTTP::host] eq "www.domain-03.de" } then { pool www.itacs.de }
	elseif { [HTTP::host] eq "www.domain-04.de" } then { pool www.itacs.de }
	elseif { [HTTP::host] eq "www.domain-05.de" } then { pool www.itacs.de }
	else { pool REST_API }
	lappend time(iRule_5if_1st_hit) [clock clicks]
	eval $static::debug_page
}

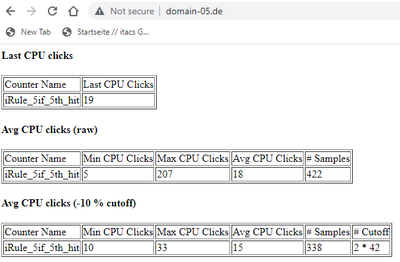

1st hit [if] is slightly quicker than [switch}, 5th hit [if] is about the same as [switch]. Nothing new about...

[eval] loading a script from static::array() with 1.000.000 bucket entries

when RULE_INIT {
	for { set x 1 } { $x < 1000000 } { incr x } {
		set my_conditional_scripts(www.domain-${x}.de) { pool www.itacs.de }
	}
}
when HTTP_REQUEST {
	lappend time(iRule_eval_1million_bucket) [clock clicks]
	if { [catch {
		eval $my_conditional_scripts([HTTP::host])
	}] } then {
		 pool REST_API
	}
	lappend time(iRule_eval_1million_bucket) [clock clicks]
	eval $static::debug_page
}

Performance in the range of a 50-entry [switch] statemen, not bad. Can LTP handle 1M URLs? And how fast?

Will do some additional LTP tests in the evening. Lets see where LTP limits are...

Cheers, Kai

Kai_Wilke
MVP
Dec 08, 2022

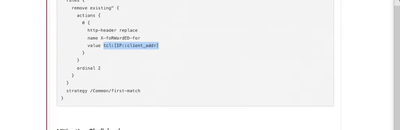

Who catches the flaw in this X-Forwarded-For protection Jason just has shown us?

Cheers, Kai
- JRahm
  Admin
  Dec 08, 2022
  the wonky capitalization within, you mean?
  - Kai_Wilke
    MVP
    Dec 08, 2022
    in LTP a header-replace has same problems as [HTTP::header replace] in iRule. If user-agent sends 2 header instances, only one instance gets replaced in the request. For a X-Forwarded-For protection this is obviously not the right way to do it...

    Cheers, Kai
Kai_Wilke
MVP
Dec 08, 2022
Many thanks for the session Jason. I pretty much enjoyed to see what is not possible with LTP... 🤣

Cheers, Kai
Kai_Wilke
MVP
Dec 08, 2022
And many thanks for showing us VS code with the BigIP plugin. I will definitely give it a try and see if I get comfortable with it.

Cheers, Kai
