Common UCS Load Failure Scenarios on F5 BIG-IP Platforms
User Configuration Set (UCS) archives are central to F5 BIG-IP configuration management, supporting backup, system recovery, and platform migrations. In production environments, UCS restores are often performed during maintenance windows or critical recovery scenarios—making reliability and predictability essential. While the UCS mechanism is robust, restore operations can fail for a variety of reasons, ranging from encryption dependencies and platform constraints to feature provisioning and licensing differences. Many of these failures are not random; they follow well-defined patterns that can be identified and mitigated with the right preparation. This article consolidates commonly encountered UCS load failure scenarios, explains their underlying causes, and outlines recommended resolution strategies based on publicly documented behavior, operational best practices, and official F5 knowledge base guidance. The goal is to help administrators recognize issues quickly, reduce trial-and-error during restores, and plan UCS operations with greater confidence—especially during platform transitions such as VE to rSeries or VELOS. Pre-Flight Validation Checklist (VE → rSeries / VELOS) Master Key and Encryption State tmsh list sys crypto master-key Ensure the target system’s master key state is compatible with the source system when restoring encrypted objects. Platform Feature Requirements Enable required features such as network-failover prior to restore. Provisioned Modules Confirm all referenced modules are licensed and provisioned. ASM / Advanced WAF Considerations Validate ASM MySQL database health. Consider importing ASM policies separately if issues arise. Licensing and Resource Alignment Ensure licensed core counts align with platform resources. Note: Issues may surface after reboot. Active Configuration Operations tmsh show sys mcp-state Management and Routing Conflicts Check for duplicate management routes. Maintenance Window Awareness Perform restores on standby units during maintenance windows. Fast Triage Guide Logs to Check /var/log/ltm /var/log/restjavad.0.log /var/log/asm Review error keywords such as: master key, encrypted, license, MySQL, duplicate, failover Key Failure Scenarios Master Key or Encryption Mismatch Resolution: Rekey or recreate encrypted objects. Corrupted or Incomplete UCS File Resolution: Use a known good backup. Encrypted UCS Without Passphrase Resolution: Provide correct passphrase. Platform or Version Mismatch Resolution: Enable required features or adjust config. Simultaneous Configuration Actions Resolution: Wait for other tasks to complete. ASM / MySQL Issues Resolution: Import ASM separately or repair database. FIPS Key / Certificate Issues Resolution: Migrate FIPS keys first. Resource or Licensing Mismatch Resolution: Align licensing and resources. Configuration Conflicts Resolution: Remove conflicting objects. Unexpected Failover or Service Restart Resolution: Restore during maintenance windows. VIPRION Hardware Swap Considerations (Blade / Chassis Transitions) When restoring UCS files during VIPRION hardware swaps (for example, 4340 → 4450 or 4460 blades), additional manual validation is required due to chassis-level and blade-specific configuration differences. Files Requiring Manual Review and Adjustment bigip_emergency.conf .cluster.conf bigip.conf bigip_base.conf Post-Modification Requirement After making any manual edits to configuration files: tmsh load sys config Conclusion Proper UCS restore preparation reduces downtime and operational risk, particularly during platform migrations, hardware swaps, or disaster recovery scenarios. Most UCS load failures are predictable and preventable when encryption state, licensing, platform features, and configuration dependencies are validated upfront. Treat UCS restores as controlled change operations, not simple file imports, and you dramatically improve recovery outcomes across BIG-IP platforms.
VIPRION external monitor

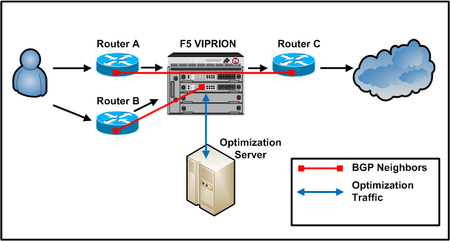

Problem this snippet solves: This VIPRION specific external monitor script is written in bash and utilizes TMSH to extend the built-in monitoring functionality of BIG-IP version 10.2.3. This write-up assumes the reader has working knowledge writing BIG-IP LTM external monitors. The following link is a great starting point LTM External Monitors: The Basics | DevCentral Logical network diagram: NOTE: The monitor is written to meet very specific environmental requirements. Therefore, your implementation may vary greatly. This post is inteded to show you some requirements for writing external monitors on the VIPRION platform while offering some creative ways to extend the functionality of external monitors using TMSH. The VIPRION acts as a hop in the default path of traffic destined for the Internet. Specific application flows are vectored to optimization servers and all other traffic is passed to the next hop router (Router C) toward the Internet. Router A and Router C are BGP neighbors through the VIPRION. Router B is a BGP neighbor with the VIPRION via ZebOS. A virtual address has route health injection enabled. The script monitors a user defined (agrument to the script) pool and transitions into the failed state when the available pool member count drops below a threshold value (argument to the script). In the failed state the following actions are performed once, effectively stopping client traffic flow through the VIPRION. Two virtual servers (arguments to the script) are disable to stop traffic through VIPRION. A virtual address (argument to the script) is disabled to disable route health injection of the address. All non Self-IP BGP connections are found in the connection table and deleted. NOTE: Manual intervention is required to enable virtual servers and virtual address when the monitor transitions from failed state to successful state before normal traffic flows will proceed. How to use this snippet: The monitor definition: monitor eavbgpv3 { defaults from external interval 20 timeout 61 args "poolhttp 32 vsforward1 vsforward2 10.10.10.1"v DEBUG "0"v run "rhi_v3.bsh" } This external monitor is configured to check for available members in the pool "poolhttp". When the available members falls below 32 the monitor transistions into the failed state and disables the virtual servers "vsforward1" and "vs_forward2" and disables the virtual address "10.10.10.1". When the available pool members increases above 32 neither the virtuals servers nor the virtual address is enabled. This will require manual intervention. The external monitor is assigned to a phantom pool with a single member "1.1.1.1:4353". No traffic is sent to the pool member. This pool and pool member are in place so the operator can see the current status of the external monitor. The Pool definition: pool bgpmonitor { monitor all eavbgp_v3 members 1.1.1.1:f5-iquery {} } You can download the script here: rhi_v3.bsh CODE: #!/bin/bash # (c) Copyright 1996-2007 F5 Networks, Inc. # # This software is confidential and may contain trade secrets that are the # property of F5 Networks, Inc. No part of the software may be disclosed # to other parties without the express written consent of F5 Networks, Inc. # It is against the law to copy the software. No part of the software may # be reproduced, transmitted, or distributed in any form or by any means, # electronic or mechanical, including photocopying, recording, or information # storage and retrieval systems, for any purpose without the express written # permission of F5 Networks, Inc. Our services are only available for legal # users of the program, for instance in the event that we extend our services # by offering the updating of files via the Internet. # # author: Paul DeHerrera pauld@f5.com # # these arguments supplied automatically for all external monitors: # $1 = IP (nnn.nnn.nnn.nnn notation or hostname) # $2 = port (decimal, host byte order) -- not used in this monitor, assumes default port 53 # # these arguments must be supplied in the monitor configuration: # $3 = name of pool to monitor # $4 = threshold value of the pool. If the available pool member count drops below this value the monitor will respond in 'failed' state # $5 = first Virtual server to disable # $6 = second Virtual server to disable # $7 = first Virtual address to disable # $8 = second Virtual address to disable ### Check for the 'DEBUG' variable, set it here if not present. # is the DEBUG variable passed as a variable? if [ -z "$DEBUG" ] then # If the monitor config didn't specify debug as a variable then enable/disable it here DEBUG=0 fi ### If Debug is on, output the script start time to /var/log/ltm # capture and log (when debug is on) a timestamp when this eav starts export ST=`date +%Y%m%d-%H:%M:%S` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): started at $ST" | logger -p local0.debug; fi ### Do not execute this script within the first 300 seconds after BIG-IP boot. This is a customer specific requirement # this section is used to introduce a delay of 300 seconds after system boot before executing this eav for the first time BOOT_DATE=`who -b | grep -i 'system boot' | awk {'print $3 " " $4 " " $5'}` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): boot_date: ($BOOT_DATE)" | logger -p local0.debug; fi EPOCH_DATE=`date -d "$BOOT_DATE" +%s` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): epoch_date: ($EPOCH_DATE)" | logger -p local0.debug; fi EPOCH_DATE=$((${EPOCH_DATE}+300)) if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): epoch_date +300: ($EPOCH_DATE)" | logger -p local0.debug; fi CUR_DATE=`date +%s` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): current_date: ($CUR_DATE)" | logger -p local0.debug; fi if [ $CUR_DATE -ge $EPOCH_DATE ] then ### Assign a value to variables. The VIPRION requires some commands to be executed on the Primary slot as you will see later in this script # export some variables if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): exporting variables..." | logger -p local0.debug; fi export REMOTEUSER="root" export HOME="/root" export IP=`echo $1 | sed 's/::ffff://'` export PORT=$2 export POOL=$3 export MEMBER_THRESHOLD=$4 export VIRTUAL_SERVER1=$5 export VIRTUAL_SERVER2=$6 export VIRTUAL_ADDRESS1=$7 export VIRTUAL_ADDRESS2=$8 export PIDFILE="/var/run/`basename $0`.$IP.$PORT.pid" export TRACKING_FILENAME=/var/tmp/rhi_bsh_monitor_status export PRIMARY_SLOT=`tmsh list sys db cluster.primary.slot | grep -i 'value' | sed -e 's/\"//g' | awk {'print $NF'}` ### Output the Primary slot to /var/log/ltm if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): the primary blade is in slot number: ($PRIMARY_SLOT)..." | logger -p local0.debug; fi ### This section is for debugging only. Check to see if this script is executing on the Primary blade and output to /var/log/ltm if [ $DEBUG -eq 1 ]; then export PRIMARY_BLADE=`tmsh list sys db cluster.primary | grep -i "value" | sed -e 's/\"//g' | awk {'print $NF'}`; fi if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): is this monitor executing on the primary blade: ($PRIMARY_BLADE)" | logger -p local0.debug; fi ### Standard EAV check to see if an instance of this script is already running for the memeber. If so, kill the previous instance and output to /var/log/ltm # is there already an instance of this EAV running for this member? if [ -f $PIDFILE ] then if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): pid file is present, killing process..." | logger -p local0.debug; fi kill -9 `cat $PIDFILE` > /dev/null 2>&1 echo "EAV `basename $0` ($$): exceeded monitor interval, needed to kill ${IP}:${PORT} with PID `cat $PIDFILE`" | logger -p local0.error fi ### Create a new pid file to track this instance of the monitor for the current member # create a pidfile if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): creating new pid file..." | logger -p local0.debug; fi echo "$$" > $PIDFILE ### Export variables for available pool members and total pool members # export more variables (these require tmsh) export AVAILABLE=`tmsh show /ltm pool $POOL members all-properties | grep -i "Availability" | awk {'print $NF'} | grep -ic "available"` export TOTAL_POOL_MEMBERS=`tmsh show /ltm pool $POOL members all-properties | grep -c "Pool Member"` let "AVAILABLE-=1" ### If Debug is on, output some variables to /var/log/ltm - helps with troubleshooting if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): Pool ($POOL) has ($AVAILABLE) available of ($TOTAL_POOL_MEMBERS) total members." | logger -p local0.debug; fi if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): Pool ($POOL) threshold = ($MEMBER_THRESHOLD) members. Virtual server1 ($VIRTUAL_SERVER1) and Virtual server2 ($VIRTUAL_SERVER2)" | logger -p local0.debug; fi if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): Member Threshold ($MEMBER_THRESHOLD)" | logger -p local0.debug; fi ### If the available members is less than the threshold then we are in a 'failed' state. # main monitor logic if [ "$AVAILABLE" -lt "$MEMBER_THRESHOLD" ] then ### If Debug is on, output status to /var/log/ltm ### notify log - below threshold and disabling virtual server1 if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): AVAILABLE < MEMBER_THRESHOLD, disabling the virtual server..." | logger -p local0.debug; fi if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): disabling Virtual Server 1 ($VIRTUAL_SERVER1)" | logger -p local0.debug; fi ### Disable the first virtual server, which may exist in an administrative partition. For version 10.2.3 (possibly others) the script is required to change the 'update-partition' before disabling the virtual server. To accomplish this we first determine the administrative partition name where the virtual is configured then we build a list construct to execute both commands consecutively. ### disable virtual server 1 ### obtain the administrative partition for the virtual. if no administrative partition is found, assume common export VS1_PART=`tmsh list ltm virtual $VIRTUAL_SERVER1 | grep 'partition' | awk {'print $NF'}` if [ -z ${VS1_PART} ]; then ### no administrative partition was found so execute a list construct to change the update-partition to Common and disable the virtual server consecutively export DISABLE1=`ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT "tmsh modify cli admin-partitions update-partition Common && tmsh modify /ltm virtual $VIRTUAL_SERVER1 disabled"` ### If Debug is on, output the command to /var/log/ltm if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): disable cmd1: ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT 'tmsh modify cli admin-partitions update-partition Common && tmsh modify /ltm virtual $VIRTUAL_SERVER1 disabled'" | logger -p local0.debug; fi else ### the administrative partition was found so execute a list construct to change the update-partition and disable the virtual server consecutively. The command is sent to the primary slot via SSH export DISABLE1=`ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT "tmsh modify cli admin-partitions update-partition $VS1_PART && tmsh modify /ltm virtual $VIRTUAL_SERVER1 disabled"` ### If Debug is on, output the command to /var/log/ltm if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): disable cmd1: ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT 'tmsh modify cli admin-partitions update-partition $VS1_PART && tmsh modify /ltm virtual $VIRTUAL_SERVER1 disabled'" | logger -p local0.debug; fi fi ### If Debug is on, output status to /var/log/ltm if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): disabling Virtual Server 2 ($VIRTUAL_SERVER2)" | logger -p local0.debug; fi ### Disable the second virtual server. This section is the same as above, so I will skip the detailed comments here. ### disable virtual server 2 export VS2_PART=`tmsh list ltm virtual $VIRTUAL_SERVER2 | grep 'partition' | awk {'print $NF'}` if [ -z ${VS2_PART} ]; then export DISABLE2=`ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT "tmsh modify cli admin-partitions update-partition Common && tmsh modify /ltm virtual $VIRTUAL_SERVER2 disabled"` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): disable cmd2: ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT 'tmsh modify cli admin-partitions update-partition Common && tmsh modify /ltm virtual $VIRTUAL_SERVER2 disabled'" | logger -p local0.debug; fi else export DISABLE2=`ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT "tmsh modify cli admin-partitions update-partition $VS2_PART && tmsh modify /ltm virtual $VIRTUAL_SERVER2 disabled"` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): disable cmd2: ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT 'tmsh modify cli admin-partitions update-partition $VS2_PART && tmsh modify ltm virtual $VIRTUAL_SERVER2 disabled'" | logger -p local0.debug; fi fi ### notify log - disconnecting all BGP connection if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): Pool ($POOL) disconnecting all BGP connections..." | logger -p local0.debug; fi ### acquire a list of self IPs SELF_IPS=(`tmsh list net self | grep 'net self' | sed -e 's/\//\ /g' | awk {'print $3'}`) ### start to build our TMSH command excluding self IPs BGP_CONNS="tmsh show sys conn cs-server-port 179 | sed -e 's/\:/\ /g' | egrep -v '" COUNT=1 if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): BGP Step 1 - ${BGP_CONNS}" | logger -p local0.debug; fi ### loop through the self IPs for ip in "${SELF_IPS[@]}" do if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): BGP Step 2 - ${ip}" | logger -p local0.debug; fi ### continue to build our TMSH command - append self IPs to ignore if [ ${COUNT} -gt 1 ] then BGP_CONNS=${BGP_CONNS}"|${ip}" else BGP_CONNS=${BGP_CONNS}"${ip}" fi (( COUNT++ )) done ### if debug is on log a message with the TMSH command up until this point if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): BGP Step 3 - ${BGP_CONNS}" | logger -p local0.debug; fi ### finish the TMSH command to show BGP connections not including self IPs BGP_CONNS=${BGP_CONNS}"' | egrep -v 'Sys|Total' | awk {'print \$1'}" if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): BGP Step 4 - ${BGP_CONNS}" | logger -p local0.debug; fi ### gather all BGP connection not including those to self IPs DISCONNS=(`eval $BGP_CONNS`) DISCMD='' NEWCOUNT=1 if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): BGP Step 5 - ${DISCONNS}" | logger -p local0.debug; fi ### loop through the resulting BGP connections and build another TMSH command to delete these connections from the connection table for newip in "${DISCONNS[@]}" do if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): BGP Step 6" | logger -p local0.debug; fi if [ ${NEWCOUNT} -gt 1 ] then DISCMD=${DISCMD}" && tmsh delete sys connection cs-client-addr ${newip} cs-server-port 179" else DISCMD=${DISCMD}"tmsh delete sys connection cs-client-addr ${newip} cs-server-port 179" fi (( NEWCOUNT++ )) done ### if debug is on log the command we just assembled if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): BGP Step 7 - ${DISCMD}" | logger -p local0.debug; fi ### One the primary slot execute the command to delete the non self IP BGP connections. export CONNECTIONS=`ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT "${DISCMD}"` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): BGP Step 8 - $CONNECTIONS" | logger -p local0.debug; fi ### disable virtual address 1 if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): VA1 ($VIRTUAL_ADDRESS1)" | logger -p local0.debug; fi if [ ! -z "$VIRTUAL_ADDRESS1" ]; then if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): disabling Virtual Address 1 ($VIRTUAL_ADDRESS1)" | logger -p local0.debug; fi export VA1_PART=`tmsh list ltm virtual-address $VIRTUAL_ADDRESS1 | grep 'partition' | awk {'print $NF'}` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): cmd: ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT tmsh modify cli admin-partitions update-partition $VA1_PART && tmsh modify /ltm virtual-address $VIRTUAL_ADDRESS1 enabled no " | logger -p local0.debug; fi export VA2_UPCMD=`ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT "tmsh modify cli admin-partitions update-partition $VA1_PART && tmsh modify /ltm virtual-address $VIRTUAL_ADDRESS1 enabled no"` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): virtual address 1 disabled?" | logger -p local0.debug; fi fi ### disable virtual address 2 if [ ! -z "$VIRTUAL_ADDRESS2" ]; then if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): disabling Virtual Address 2 ($VIRTUAL_ADDRESS2)" | logger -p local0.debug; fi export VA2_PART=`tmsh list ltm virtual-address $VIRTUAL_ADDRESS2 | grep 'partition' | awk {'print $NF'}` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): update-partition - $VA2_PART" | logger -p local0.debug; fi export VA2_UPCMD=`ssh -o StrictHostKeyChecking=no root\@slot$PRIMARY_SLOT "tmsh modify cli admin-partitions update-partition $VA2_PART && tmsh modify /ltm virtual-address $VIRTUAL_ADDRESS2 enabled no"` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): cmd: virtual address 2 disabled?" | logger -p local0.debug; fi fi ### track number of times this monitor has failed if [ -e "$TRACKING_FILENAME" ] then export COUNT=`cat $TRACKING_FILENAME` export NEW_COUNT=$((${COUNT}+1)) echo $NEW_COUNT > $TRACKING_FILENAME else echo 1 > $TRACKING_FILENAME export NEW_COUNT=1 fi ### notify log - failure count echo "EAV `basename $0` ($$): Pool $POOL only has $AVAILABLE available of $TOTAL_POOL_MEMBERS total members, failing site. Virtual servers ($VIRTUAL_SERVER1 and $VIRTUAL_SERVER2) will be disabled and all connections with destination port 179 will be terminated. Virtual servers must be manually enabled after pool $MEMBER_THRESHOLD or more pool members are available. This monitor has failed $NEW_COUNT times." | logger -p local0.debug # remove the pidfile if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): removing the pidfile..." | logger -p local0.debug; fi export PIDBGONE=`rm -f $PIDFILE` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): pidfile has been removed ($PIDBGONE)" | logger -p local0.debug; fi export END=`date +%Y%m%d-%H:%M:%S` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): stopped at $END" | logger -p local0.debug; fi else if [ -e "$TRACKING_FILENAME" ] then ### log the status echo "EAV `basename $0` ($$): Pool $POOL has $AVAILABLE members of $TOTAL_POOL_MEMBERS total members. No change to virtual servers ($VIRTUAL_SERVER1 and $VIRTUAL_SERVER2). No change to port 179 connections. Virtual servers must be manually enabled to pass traffic if they are disabled." | logger -p local0.debug rm -f $TRACKING_FILENAME fi ### remove the pidfile if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): removing the pidfile..." | logger -p local0.debug; fi export PIDBGONE=`rm -f $PIDFILE` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): pidfile has been removed ($PIDBGONE)" | logger -p local0.debug; fi export END=`date +%Y%m%d-%H:%M:%S` if [ $DEBUG -eq 1 ]; then echo "EAV `basename $0` ($$): stopped at $END" | logger -p local0.debug; fi echo "UP" fi fi
F5 GTM Upgrade in Viprion with LTM
We have to plan a Viprion Software upgrade. Suppose we have two data center (say A and B) and 4 Viprion. 2(A1,A2) dedicated for one data center and 2(B1,B2) dedicated for other. A1 contains - a1(LTM), a2(LTM),a3(LTM) and a4(GTM Internal) A2 Contains - a5(LTM), a6(LTM), a7(LTM), a4(GTM External) B1 contains - b1(LTM), b2(LTM),b3(LTM) and b4(GTM Internal) B2 Contains - b5(LTM), b6(LTM), b7(LTM), b8(GTM External) Now we are planning to upgrade to both Viprion pair in two different weeks. But GTM is creating issue. Note - a4 and b4 are stand alone and synced. Similarly a8 and b are stand alone and synced. My question - If I plan upgrade A1 in first week, I have to upgrade a4 and a8. In that a4 and b4 will be in different version and a8 and b8 will be in different version for one week. I just wanted to know, will there be any issue if GTM pairs are in different versions for one week(Note pairs are standalone but synced). Will there be any kind of traffic of conflict issue? Or any suggestion how to plan?
BIG-IP VPR-B4450N max connections support
Hi we need to know what is the maximum number of connections that the BIG-IP VPR-B4450N card supports. We currently have it in balancer mode for TCP/UDP connections to servers behind the f5. The connections are DNS requests. We want to know how many connections per second it supports. We understand that this information is in the F5 documentation but it is not clear to us if we are understanding it correctly. Currently the F5 reports 600K New connections for second. Thanks a lot.
How to rebuild vCMP guest VM - Viprion deployment
Hi, I wonder if anyone had issue vCMP guest VM failure on one slot. I have three slot Viprion with guests set to all slots. After upgrade guest started but the guest VM on slot 2 failed. So now guest is running only on two slots. Slot 2 VM seems to be completely dead: No way to SSH using this slot member IP ssh slot 2 from slot 1 not working vconsole [guest name] 2 from host not working I was not able to test tmsh reboot slot 2 from guest slot 1 (Primary) but I highly doubt it will work. Sure I will try reboot guest chassis (like tmsh reboot slot all ) but what if slot 2 VM will not boot again? Any proven procedure? My idea is to: Change guest state to configured Disable guest on slot 2 Change state to provisioned - according to info collected: VM will be deleted vdisk will be preserved I think vdisk on slot 2 should be removed - hope can be done via host GUI vCMP ›› Virtual Disk List After clean up: Change state to configured Enable guest on all slots (original setting) Change state to provisioned, I assume that: VM will be created vdisk will be copied from primary slot Change state to deployed Should it work? Any better/safer way? Piotr
How to rebuild vCMP guest VM - Viprion deployment
Hi, I wonder if anyone had issue vCMP guest VM failure on one slot. I have three slot Viprion with guests set to all slots. After upgrade guest started but the guest VM on slot 2 failed. So now guest is running only on two slots. Slot 2 VM seems to be completely dead: No way to SSH using this slot member IP ssh slot 2 from slot 1 not working vconsole [guest name] 2 from host not working I was not able to test tmsh reboot slot 2 from guest slot 1 (Primary) but I highly doubt it will work. Sure I will try reboot guest chassis (like tmsh reboot slot all ) but what if slot 2 VM will not boot again? Any proven procedure? My idea is to: Change guest state to configured Disable guest on slot 2 Change state to provisioned - according to info collected: VM will be deleted vdisk will be preserved I think vdisk on slot 2 should be removed - hope can be done via host GUI vCMP ›› Virtual Disk List After clean up: Change state to configured Enable guest on all slots (original setting) Change state to provisioned, I assume that: VM will be created vdisk will be copied from primary slot Change state to deployed Should it work? Any better/safer way? Piotr
Viprion mgmt mac address
Hello, I have a viprion 4400 with one blade in version 11.6.0. I have vcmp provisionned and one vguest in version 11.6.0 also. I pinged the Hypervisore's mgmt while taking a pcap on the Hypervisore. I noticed that the mac address I saw in the pcap and the mac address in the output of the command show net interface all-properties | grep -i mgmt aren't the same ! In fact, the mac address I saw in the pcap wasn't in the output of the commande " show net interface all-properties " at all. I tried running the same commande on the Vguest ( show net interface all-properties ) and the mac address wasn't there either . My question is then where this mac address came from ? Many thanks, Karim
ltm log message error
Hi, Anyone has any ideea why do we keep getting this in ltm log: slot1/viprion warning csyncd[5226]: 013b0005:4: Command failed: cmd=rsync -qaI --timeout=15 rsync://127.3.0.3/csync/var/tmstat/cluster/blade3 /var/tmstat/cluster/blade3, rc=23 The system is a Viprion chassis with blades in slot1 and slot3 and I can't seem to find anything related to this.
