F5 and Cisco ACI Essentials: Automate automate automate !!!
This article will focus on automation support by BIG-IP and Cisco ACI and how automation tools specifically Ansible can be used to automate different use cases. Before getting into the weeds let's discuss and understand BIG-IP's and Cisco ACI's automation strategies. BIG-IP automation strategy BIG-IP automation strategy is simple-abstract as much complexity as possible from the user, give an easy button to the user to deploy their BIG-IP configuration. This could honestly mean different methods to different people, some prefer sending a single API call to perform one action( A one-to-one mapping between your API<->Configuration). Others prefer a more declarative approach where one API call performs multiple actions, basically a one-to -many mapping between your API(1)<->Configuration(N). A great link to refresh and learn about the different options: https://www.f5.com/products/automation-and-orchestration Cisco ACI automation strategy Cisco Application Policy Infrastructure Controller (APIC) is the network controller for the ACI fabric. APIC is the unified point of automation and management for the Cisco ACI fabric, policy enforcement, and health monitoring. The Cisco ACI programmability model provides complete programmatic access using APIC. Click here to learn more https://developer.cisco.com/site/aci/ Automation tools There are a lot of automation tools that are being talked for network automation BUT the one that comes up in every customer conversation is Ansible. Its simplicity, maturity and community adoption has made it very popular. In this article we are going to focus on using Ansible to automate a service discovery use case. Use Case: Dynamic EP attach/detach Let’s take an example of a simple http web service being made highly available and secure using the BIG-IP Virtual IP address. This web service has a bunch of backend web servers hosting the application, the IP of this web servers is configured on the BIG-IP as pool members. These same web server IP’s are learned as endpoints in the ACI fabric and are part of an End Point Group (EPG) on the APIC. Hence there is a logical mapping between a EPG on APIC and a pool on the BIG-IP. Now if the application is adding or deleting web servers that is hosting the application maybe to save cost or maybe to deal with increase/decrease of traffic, what happens is that the web server IP will be automatically learned/unlearned on APIC. BUT an admin will still have to add/remove that web server IP from the pool on BIG-IP. This can be a burden on the network admin specially if this happens very often. Here is where automation can help and let’s look at how in the next section More details on the use case can be found at https://devcentral.f5.com/s/articles/F5-Cisco-ACI-Essentials-Dynamic-pool-sizing-using-the-F5-ACI-ServiceCenter Automation of Use Case: Dynamic EP attach/detach Automation can be achieved by using Ansible and Ansible tower where API calls are made directly to the BIG-IP. Another option it to use the F5 ACI ServiceCenter (a native F5 ACI integration) to automate this particular use case. Ansible and Ansible tower To learn more about Ansible and Ansible tower: https://www.ansible.com/products/tower Using this method of automation separate API calls are made directly to the ACI and the BIG-IP. Sample playbook to perform the addition and deletion of pool members to a BIG-IP pool based on members in a particular EPG. The mapping of pool to EPG is provided as input to the playbook. - name: Dynamic end point attach/dettach hosts: aci connection: local gather_facts: false vars: epg_members: [] pool_members: [] pool_members_ip: [] bigip_ip: 10.192.73.xx bigip_password: admin bigip_username: admin # Here we are mapping pool 'dynamic_pool' to EPG 'internalEPG' which belongs to APIC tenant 'TenantDemo' app_profile_name: AppProfile epg_name: internalEPG partition: Common pool_name: dynamic_pool pool_port: 80 tenant_name: TenantDemo tasks: - name: Setup provider set_fact: provider: server: "{{bigip_ip}}" user: "{{bigip_username}}" password: "{{bigip_password}}" server_port: "443" validate_certs: "false" - name: Get end points learned from End Point group aci_rest: action: "get" uri: "/api/node/mo/uni/tn-{{tenant_name}}/ap-{{app_profile_name}}/epg-{{epg_name}}.json?query-target=subtree&target-subtree-class=fvIp" host: "{{inventory_hostname}}" username: "{{ lookup('env', 'ANSIBLE_NET_USERNAME') }}" password: "{{ lookup('env', 'ANSIBLE_NET_PASSWORD') }}" validate_certs: "false" register: eps - name: Get the IP's of the servers part of the EPG set_fact: epg_members="{{epg_members + [item]}}" loop: "{{eps | json_query(query_string)}}" vars: query_string: "imdata[*].fvIp.attributes.addr" no_log: True - name: Get only the IPv4 IP's set_fact: epg_members="{{epg_members | ipv4}}" - name: Adding Pool members to the BIG-IP bigip_pool_member: provider: "{{provider}}" state: "present" name: "{{item}}" host: "{{item}}" port: "{{pool_port}}" pool: "{{pool_name}}" partition: "{{partition}}" loop: "{{epg_members}}" - name: Query BIG-IP facts bigip_device_facts: provider: "{{provider}}" gather_subset: - ltm-pools register: bigip_facts - name: "Show members belonging to pool {{pool_name}}" set_fact: pool_members="{{pool_members + [item]}}" loop: "{{bigip_facts.ltm_pools | json_query(query_string)}}" vars: query_string: "[?name=='{{pool_name}}'].members[*].name[]" - set_fact: pool_members_ip: "{{pool_members_ip + [item.split(':')[0]]}}" loop: "{{pool_members}}" - debug: "msg={{pool_members_ip}}" #If there are any membeers on the BIG-IP that are not present in the EPG,then delete them - name: Find the members to be deleted if any set_fact: members_to_be_deleted: "{{ pool_members_ip | difference(epg_members) }}" - debug: "msg={{members_to_be_deleted}}" - name: Delete Pool members from the BIG-IP bigip_pool_member: provider: "{{provider}}" state: "absent" name: "{{item}}" port: "{{pool_port}}" pool: "{{pool_name}}" preserve_node: yes partition: "{{partition}}" loop: "{{members_to_be_deleted}}" Ansible tower's scheduling feature can be used to schedule this playbook to be run every minute, every hour or once per day based on how often an application is expected to change and how important is it for the configuration on both the Cisco ACI and the BIG-IP to be in sync. F5 ACI ServiceCenter To learn more about the integration : https://www.f5.com/cisco The F5 ACI ServiceCenter is installed on the APIC controller. Here automation can be used to create the initial EPG to Pool mapping. Once the mapping is created the F5 ACI ServiceCenter handles the dynamic sizing of pools based on events generated by APIC. Events are generated when a server is learned/unlearned on an EPG which is what the F5 ACI ServiceCenter listens to and accordingly adds or removes pool members from the BIG-IP. Sample playbook to deploy the mapping configuration on the BIG-IP through the F5 ACI ServiceCenter --- - name: Deploy EPG to Pool mapping hosts: localhost gather_facts: false connection: local vars: apic_ip: "10.192.73.xx" big_ip: "10.192.73.xx" partition: "Dynamic" tasks: - name: Login to APIC uri: url: https://{{apic_ip}}/api/aaaLogin.json method: POST validate_certs: no body_format: json body: aaaUser: attributes: name: "admin" pwd: "******" headers: content_type: "application/json" return_content: yes register: cookie - debug: msg="{{cookie['cookies']['APIC-cookie']}}" - set_fact: token: "{{cookie['cookies']['APIC-cookie']}}" - name: Login to BIG-IP uri: url: https://{{apic_ip}}/appcenter/F5Networks/F5ACIServiceCenter/loginbigip.json method: POST validate_certs: no body: url: "{{big_ip}}" user: "admin" password: "admin" body_format: json headers: DevCookie: "{{token}}" #The body of this request defines the mapping of Pool to EPG #Here we are mapping pool 'web_pool' to EPG 'internalEPG' which belongs to APIC tenant 'TenantDemo' - name: Deploy AS3 dynamic EP mapping uri: url: https://{{apic_ip}}/appcenter/F5Networks/F5ACIServiceCenter/updateas3data.json method: POST validate_certs: no body: url: "{{big_ip}}" partition: "{{partition}}" application: "DemoApp1" json: class: Application template: http serviceMain: class: Service_HTTP virtualAddresses: - 10.168.56.100 pool: web_pool web_pool: class: Pool monitors: - http members: - servicePort: 80 serverAddresses: [] - addressDiscovery: event servicePort: 80 constants: class: Constants serviceCenterEPG: web_pool: tenant: TenantDemo application: AppProfile epg: internalEPG body_format: json status_code: - 202 - 200 headers: DevCookie: "{{token}}" return_content: yes register: complete_info - name: Get task ID of above request set_fact: task_id: "{{ complete_info.json.message.taskId}}" when: complete_info.json.code == 202 - name: Get deployment status uri: url: https://{{apic_ip}}/appcenter/F5Networks/F5ACIServiceCenter/getasynctaskresponse.json method: POST validate_certs: no body: taskId: "{{task_id}}" body_format: json headers: DevCookie: "{{token}}" return_content: yes register: result until: result.json.message.message != "in progress" retries: 5 delay: 2 when: task_id is defined - name: Display final result debug: var: result After deploying this configuration, adding/deleting pool members and making sure the configuration is in sync is the responsibility of the F5 ACI ServiceCenter. Takeaways Both methods are highly effective and usable. The choice of which one to use comes down to the operational model in your environment. Some pros and cons to help made the decision on which platform to use for automation. Ansible Tower Pros No dependency on any other tools Fits in better with bigger company automation strategy to use Ansible for ALL network automation Cons Have to manage playbook execution and scheduling using Ansible Tower If more logic is needed besides what’s described above playbooks will have to be written and maintained Execution of playbook is based on scheduling and is not event driven F5 ACI ServiceCenter Pros Only pool-epg mapping has to be deployed using automation, rest all is handled by the application User interface to view pool member to EPG mapping once deployed and view discrepancies if any Limited automation knowledge is needed, heavy lifting is being done by the application Dynamically adding/deleting pool members is event driven, as members are learned/unlearned by the F5 ACI ServiceCenter an action is taken Cons Another tool is required Customization of pool to EPG mapping is not present. Only one-to-one EPG to pool mapping is present. References Learn about the F5 ACI ServiceCenter and other Cisco integrations: https://f5.com/cisco Download the F5 ACI ServiceCenter: https://dcappcenter.cisco.com/f5-aci-servicecenter.html Lab to execute Ansible playbooks: https://dcloud.cisco.com (Lab name: F5 and Ansible )1.6KViews1like0CommentsWhat is the order of module processing when using several F5 modules?
Just to have some more insight into this topic I would like to know what is the flow on how exactly F5 processes the traffic when having multiple modules activated on a virtual server or LTM policy. For example the LTM, AFM and ASM modules. I guess LTM comes first because there has to be a listener that proceses the traffic, then I guess it will use the AFM to block unwanted traffic and finally process it with ASM? Please share your comments or references, because I could not find infomration about this topic. Thanks, Marvin339Views0likes2CommentsSecurity menu item missing

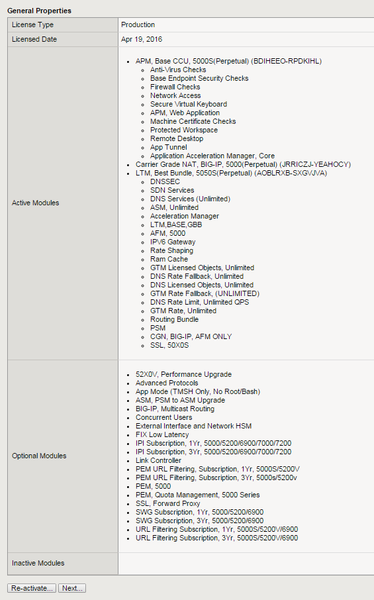

Hi all, so I'm missing the "Security" menu item on my F5 Big-IP running version 12.0.0 Build 0.0.606 Final. It is an option that's licensed, I will list my "Active" Modules or upload a screenshot here. How do I get the Security configuration item to show? ThanksSolved1.1KViews0likes8Comments
