As enterprises modernize and expand their digital services, they increasingly deploy multiple instances of the same applications across diverse infrastructure environments—such as VMware, OpenShift, and Nutanix—to support distributed teams, regional data sovereignty, redundancy, or environment-specific compliance needs. These application instances often integrate into service chains that span across clouds and data centers, introducing both scale and operational complexity. F5 Distributed Cloud provides a unified solution for secure, consistent application delivery and security across hybrid and multi-cloud environments. It enables organizations to add workloads seamlessly—whether for scaling, redundancy, or localization—without sacrificing visibility, security, or performance.Modernizing F5 Platforms with Ansible
I’ve been meaning to publish this article for some time now. Over the past few months, I’ve been building Ansible automation that I believe will help customers modernize their F5 infrastructure. This especially true for those looking to migrate from legacy BIG-IP hardware to next-generation platforms like VELOS and rSeries. As I explored tools like F5 Journeys and traditional CLI-based migration methods, I noticed a significant amount of manual pre-work was still required. This includes: Ensuring the Master Key used to encrypt the UCS archive is preserved and securely handled Storing UCS, Master Key and information assets in a backup host Pre-configuring all VLANs and properly tagging them on the VELOS partition before deploying a Tenant OS To streamline this, I created an Ansible Playbook with supporting roles tailored for Red Hat Ansible Automation Platform. It’s built to perform a lift-and-shift migration of a F5 BIG-IP configuration from one device to another—with optional OS upgrades included. In the demo video below, you’ll see an automated migration of a F5 i10800 running 15.1.10 to a VELOS BX110 Tenant OS running 17.5.0—demonstrating a smooth, hands-free modernization process. Currently Working Velos Velos Controller/Partition running (F5OS-C 1.8.1) - which allows Tenant Management IP to be in a different VLAN Migrates a standalone F5 BIG-IP i10800 to a VELOS BX110 Tenant OS VLAN'ed Source tenant required (Doesn’t support non-vlan tenants) rSeries Shares MGMT IP with the same subnet as the Chassis Partition. Migrates a standalone F5 BIG-IP i10800 to a R5000 Tenant OS VLAN'ed Source tenant required (Doesn’t support non-vlan tenants) Handles: Configuration and crypto backup UCS creation, transfer, and validation F5OS System VLAN Creation, and Association to Tenant - (Does Not manage Interface to VLAN Mapping) F5 OS Tenant provisioning and deployment inline OS upgrades during the migration Roadmap / What's Next Expanding Testing to include Viprion/iSeries (Using VCMP) Tenant Testing. Supporting hardware-to-virtual platform migrations Adding functionality for HA (High Availability) environments Watch the Demo Video View the Source Code on GitHub https://github.com/f5devcentral/f5-bd-ansible-platform-modernization This project is built for the community—so feel free to take it, fork it, and expand it. Let’s make F5 platform modernization as seamless and automated as possible.
CNSA 2.0 Implementation Guide with OpenSSL: How to Build a Quantum-Resistant Certificate Authority
Are your certificates quantum-ready? Explore DevCentral's ML-DSA post-quantum cryptography PKI tutorial meeting NSA quantum-safe requirements and build your own internal certificate authority with PQC support.OpenShift Service Mesh 2.x/3.x with F5 BIG-IP
Overview OpenShift Service Mesh (OSSM) is Red Hat´s packaged version of Istio Service Mesh. Istio has the Ingress Gateway component to handle incoming traffic from outside of the cluster. Like other ingress controllers, it requires an external load balancer to get the traffic into the ingress PODs. This follows the canonical Kubenetes 2-tier arrangement for getting the traffic inside the cluster. This is depicted in the next figure: This article covers the configuration of OpenShift Service Mesh 2.x/3.x and expose it to the BIG-IP, and how to properly monitor its health, either using BIG-IP´s Container Ingress Services (CIS) or without using it. Exposing OSSM in BIG-IP - VIP configuration It is a customer choice how to publish OSSM in the BIG-IP: A Layer 4 (L4) Virtual Server is more simple and certificate management is done in OpenShift. The advantages of using this mode are the potential higher performance and scalability, including connection mirroring, yet mirroring is not usually used for HTTP traffic due to the typical retry mechanism of HTTP applications. Connection persistence is limited to the source IP. When using CIS, this is done with a TransportServer CR, which creates a fastL4 type virtual server in the BIG-IP. A Layer 7 (L7) Virtual Server requires additional configuration because TLS termination is required. In this mode, OpenShift can take advantage of BIG-IP´s TLS off-loading capabilities and Hardware/Network/SaaS/Cloud HSM integrations, which store private keys securely, including FIPS level support. Working at L7 also allows to do per-application traffic management, including headers and payload rewrites, cookie persistence, etc. It also allows to do per-application multi-cluster. The above features are provided by the LTM (load balancing) module in BIG-IP. The possibilities are further expanded when using modules such as ASM (Advanced WAF) and Access (authentication). When using CIS, this is done with a VirtualServer CR, which creates a standard-type virtual server in the BIG-IP. Exposing OSSM to BIG-IP - pool configuration There are two options to expose Istio Ingress Gateways to BIG-IP: Using ClusterIP addresses, these are POD IPs which are dynamic. This requires the use of CIS for discovering the IP addresses of the Ingress Gateway PODs. Using NodePort addresses, these are reachable from the outside network. When using these, it is not strictly necessary to use CIS, but it is recommended. Exposing OpenShift Service Mesh using ClusterIP This requires the use of CIS with the following parameters --orchestration-cni=ovn --static-routing-mode=true These make CIS create IP routes in the BIG-IP for reaching the POD IPs inside the OpenShift cluster. Please note that this only works if all the OpenShift nodes are directly connected in the same subnet as the BIG-IP. Additionally, it is required following parameter. It is the one that actually makes CIS populate pool members with Cluster (POD) IPs: --pool-member-type=cluster It is not needed to change any configuration in OSSM because ClusterIP mode is the default mode in Istio Ingress Gateways. Exposing OpenShift Service Mesh using NodePort Using NodePort allows to have known IP addresses for the Ingress Gateways, reachable from outside the cluster. Note that when using nodePort, only one Ingress Gateway replica will run per node. The behavior of NodePort varies using the externalTrafficPolicy field: Using the Cluster value, any OpenShift node will accept traffic and will redirect the traffic to any node that has an Ingress Gateway POD, in a load balancing fashion. This is the easiest to setup, but because each request might go to a different node makes health checking not reliable (it is not known which POD goes down). Using the Local value, only the OpenShift nodes that have an Ingress Gateway PODs will accept traffic. The traffic will be delivered to the local Ingress Gateway PODs, without further indirection. This is the recommended way when using NodePort because of its deterministic behaviour and therefore reliable health checking. Next, it is described how to setup a NodePort using the Local externalTrafficPolicy. There are two options for configuring OSSM: Using the ServiceMeshControlPlane CR method: this is the default method in OSSM 2.x for backwards compatibility, but it doesn’t allow to fine tune the configuration of the proxy. See this OSSM 2.x link for further details. This is deprecated and not available in OSSM 3.x. Using Gateway injection method: this is the only method possible in OSSM 3.x and the current recommendation from Red Hat for OSSM 2.x. Using this method allows you to tune the proxy settings. In this article, it will be shown how this tuning is of special interest because at present the Ingress Gateway doesn’t have good default values for allowing reliable health checking. These will be discussed in the Health Checking section. When using ServiceMeshControlPlane CR method, the above will be configured as follows: apiVersion: maistra.io/v2 kind: ServiceMeshControlPlane [...] spec: gateways: ingress: enabled: false runtime: deployment: replicas: 2 service: externalTrafficPolicy: Local ports: - name: status-port nodePort: 30021 port: 15021 targetPort: 15021 - name: http2 nodePort: 30080 port: 80 targetPort: 8080 - name: https nodePort: 30443 port: 443 targetPort: 8443 type: NodePort When using the Gateway injection method (recommended), the Service definition is manually created analogously to the ServiceMeshControlPlane CR: apiVersion: v1 kind: Service [...] spec: externalTrafficPolicy: Local type: NodePort ports: - name: status-port nodePort: 30021 port: 15021 protocol: TCP targetPort: 15021 - name: http2 nodePort: 30080 port: 80 protocol: TCP targetPort: 8080 - name: https nodePort: 30443 port: 443 protocol: TCP targetPort: 8443 Where the ports section is optional but recommended in order to have deterministic ports, and required when not using CIS (because it requires static ports). The nodePort values can be customised. When not using CIS, it is needed to manually configure the pool members in the BIG-IP. It is typical in OpenShift to have the Ingress components (OpenShift Router or Istio) in dedicated infra nodes. See this Red Hat solution for details. When using the ServiceMeshControlPlane method, the configuration is as follows: apiVersion: maistra.io/v2 kind: ServiceMeshControlPlane [...] spec: runtime: defaults: pod: nodeSelector: node-role.kubernetes.io/infra: "" tolerations: - effect: NoSchedule key: node-role.kubernetes.io/infra value: reserved - effect: NoExecute key: node-role.kubernetes.io/infra value: reserved When using the Gateway injection method, the configuration is added to the Deployment file directly: apiVersion: apps/v1 kind: Deployment [...] spec: template: metadata: spec: nodeSelector: node-role.kubernetes.io/infra: "" tolerations: - effect: NoSchedule key: node-role.kubernetes.io/infra value: reserved - effect: NoExecute key: node-role.kubernetes.io/infra value: reserved The configuration above is also a good practice when using CIS. Additionally, CIS by default adds all nodes IPs to the Service pool regardless of whether the externalTrafficPolicy is set to Cluster or Local value. The health check will discard nodes where there are no Ingress Gateways. It can be limited to the scope of the nodes discovered by CIS with the following parameter: --node-label-selector Health Checking and retries for the Ingress Gateway Ingress Gateway Readiness The Ingress Gateway has the following readinessProbe for Kubernete´s own health checking: readinessProbe: failureThreshold: 30 httpGet: path: /healthz/ready port: 15021 scheme: HTTP initialDelaySeconds: 1 periodSeconds: 2 successThreshold: 1 timeoutSeconds: 3 where the failureThreshold value of 30 is considered way too large and only marks down the Ingress Gateway as not Ready after 90 seconds (tested to be failureThreshold *timeoutSeconds). In this article, it is recommended to mark down an Ingress Gateway no later than 16 seconds. When using CIS, Kubernetes informs whenever a POD is not Ready and CIS automatically, removes its associated pool member from the pool. In order to achieve the desired behaviour of marking down the Ingress Gateway before 16 seconds, it is required to change the default failureThreshold value in the Deployment file by adding the following snippet: apiVersion: apps/v1 kind: Deployment [...] spec: template: metadata: spec: containers: - name: istio-proxy image: auto readinessProbe: failureThreshold: 5 httpGet: path: /healthz/ready port: 15021 scheme: HTTP initialDelaySeconds: 1 periodSeconds: 2 successThreshold: 1 timeoutSeconds: 3 Which keeps all other values equal and sets failureThreshold to 5, therefore marking down the Ingress Gateway after 15 seconds. When not using CIS, a HTTP health check has to be configured manually in the BIG-IP. An example health check monitor is shown next: Connection draining When an Ingress Gateway POD is deleted (because of an upgrade, scale-down event, etc...), it immediately returns HTTP 503 in the /healthz/ready endpoint and keeps serving connections until it is effectively deleted. This is called the drain period and by default is extremely short (3 seconds) for any external load balancer. This value has to be increased so the Ingress Gateway PODs being deleted continue serving connections until the Ingress Gateway POD is removed from the external load balancer (the BIG-IP) and the outstanding connections finalised. This setting can only be tuned using the Gateway injection method and it is applied by adding the following snippet in the Deployment file: apiVersion: apps/v1 kind: Deployment [...] spec: template: metadata: annotations: proxy.istio.io/config: | terminationDrainDuration: 45s In the example above, it has been used as the default drain period of the OpenShift Router (45 seconds). The value can be customised, keeping in mind that: When using CIS, it should allow CIS to update the configuration in the BIG-IP and drain the connections. When not using CIS, it should allow the health check to detect the condition of the POD and drain the connections. Additional recommendations The next recommendations apply to any ingress controller or API manager and have been previously suggested when using OpenShift Router. Handle non-graceful errors with the pool’s reselect tries To deal better with non-graceful shutdowns or transient errors, this mechanism will reselect a new Ingress Gateway POD when a request fails. The recommendation is to set the number of tries to the number of Ingress Gateway PODs -1. When using CIS, this can be set in the VirtualServer or TransportServer CRs with the reselectTries parameter. Set an additional TCP monitor for Ingress Gateway´s application traffic sockets This complementary TCP monitor (for both HTTP and HTTPS listeners) validates that Ready instances can actually receive traffic in the application’s traffic sockets. Although this is handled with the reselect tries mechanism, this monitor will provide visibility that such types of errors are happening. Conclusion and closing remarks We hope this article highlights the most important aspects of integrating OpenShift Service Mesh with BIG-IP. A key aspect for having a reliable Ingress Gateway integration is to modify OpenShift Service Mesh’s terminationDrainDuration and readinessProbe.failureThreshold defaults. F5 has submitted to Red Hat RFE 04270713 to improve these. This article will be updated accordingly. Whether CIS integration is used or not, BIG-IP allows you to expose OpenShift ServiceMesh reliably with extensive L4-L7 security and traffic management capabilities. It also allows fine-grained access control, scalable SNAT or keeping the original source IP, among others. Overall, BIG-IP is able to fulfill any requirement. We look forward to hearing your experience and feedback on this article.F5 Distributed Cloud (XC) Global Applications Load Balancing in Cisco ACI
Introduction F5 Distributed Cloud (XC) simplify cloud-based DNS management with global server load balancing (GSLB) and disaster recovery (DR). F5 XC efficiently directs application traffic across environments globally, performs health checks, and automates responses to activities and events to maintain high application performance with high availability and robustness. In this article, we will discuss how we can ensure high application performance with high availability and robustness by using XC to load-balance global applications across public clouds and Cisco Application Centric Infrastructure (ACI) sites that are geographically apart. We will look at two different XC in ACI use cases. Each of them uses a different approach for global applications delivery and leverages a different XC feature to load balance the applications globally and for disaster recovery. XC DNS Load Balancer Our first XC in ACI use case is very commonly seen where we use a traditional network-centric approach for global applications delivery and disaster recovery. We use our existing network infrastructure to provide global applications connectivity and we deploy GSLB to load balance the applications across sites globally and for disaster recovery. In our example, we will show you how to use XC DNS Load Balancer to load-balance a global application across ACI sites that are geographically dispersed. One of the many advantages of using XC DNS Load Balancer is that we no longer need to manage GSLB appliances. Also, we can expect high DNS performance thanks to XC global infrastructure. In addition, we have a single pane of glass, the XC console, to manage all of our services such as multi-cloud networking, applications delivery, DNS services, WAAP etc. Example Topology Here in our example, we use Distributed Cloud (XC) DNS Load Balancer to load balance our global application hello.bd.f5.com, which is deployed in a hybrid multi-cloud environment across two ACI sites located in San Jose and New York. Here are some highlights at each ACI site from our example: New York location XC CE is deployed in ACI using layer three attached with BGP XC advertises custom VIP 10.10.215.215 to ACI via BGP XC custom VIP 10.10.215.215 has an origin server 10.131.111.88 on AWS BIG-IP is integrated into ACI BIG-IP has a public VIP 12.202.13.149 that has two pool members: on-premise origin server 10.131.111.161 XC custom VIP 10.10.215.215 San Jose location XC CE is deployed in ACI using layer three attached with BGP XC advertises custom VIP 10.10.135.135 to ACI via BGP XC custom VIP 10.10.135.135 has an origin server 10.131.111.88 on Azure BIG-IP is integrated into Cisco ACI BIG-IP has a public VIP 12.202.13.147 that has two pool members: on-premise origin server 10.131.111.55 XC custom VIP 10.10.135.135 *Note: Click here to review on how to deploy XC CE in ACI using layer three attached with BGP. DNS Load Balancing Rules A DNS Load Balancer is an ingress controller for the DNS queries made to your DNS servers. The DNS Load Balancer receives the requests and answers with an IP address from a pool of members based on the configured load balancing rules. On the XC console, go to "DNS Management" -> "DNS Load Balancer Management" to create a DNS Load Balancer and then define the load balancing rules. Here in our example, we created a DNS Load Balancer and defined the load balancing rules for our global application hello.bd.f5.com (note: as a prerequisite, F5 XC must be providing primary DNS for the domain): Rule #1: If the DNS request to hello.bd.f5.com comes from United States or United Kingdom, respond with BIG-IP VIP 12.203.13.149 in the DNS response so that the application traffic will be directed to New York ACI site and forwarded to an origin server that is located in AWS or on-premise: Rule #2: If the DNS request to hello.bd.f5.com comes from United States or United Kingdom and if New York ACI site become unavailable, respond with BIG-IP VIP 12.203.13.147 in the DNS response so that the application traffic will be directed to San Jose ACI site and forwarded to an origin server that is located on-premise or in Azure: Rule #3: If the DNS request to hello.bd.f5.com comes from somewhere outside of United States or United Kingdom, respond with BIG-IP VIP 12.203.13.147 in the DNS response so that the application traffic will be directed to San Jose ACI and forwarded to an origin server that is located on-premise or in Azure: Validation Now, let's see what happens. When a machine located in the United States tries to reach hello.bd.f5.com and if both ACI sites are up, the traffic is directed to New York ACI site and forwarded to an origin server that is located on-premise or in AWS as expected: When a machine located in the United States tries to reach hello.bd.f5.com and if the New York ACI site is down or becomes unavailable, the traffic is re-directed to San Jose ACI site and forwarded to an origin server that is located on-premise or in Azure as expected: When a machine tries to access hello.bd.f5.com from outside of United States or United Kingdom, it is directed to San Jose ACI site and forwarded to an origin server that is located on-premise or in Azure as expected: On the XC console, go to "DNS Management" and select the appropriate DNS Zone to view the Dashboard for information such as the DNS traffic distribution across the globe, the query types etc and Requests for DNS requests info: XC HTTP Load Balancer Our second XC in ACI use case uses a different approach for global applications delivery and disaster recovery. Instead of using the existing network infrastructure for global applications connectivity and utilizing XC DNS Load Balancer for global applications load balancing, we simplify the network layer management by securely deploying XC to connect our applications globally and leveraging XC HTTP Load Balancer to load balance our global applications and for disaster recovery. Example Topology Here in our example, we use XC HTTP load balancer to load balance our global application global.f5-demo.com that is deployed across a hybrid multi-cloud environment. Here are some highlights: XC CE is deployed in each ACI site using layer three attached with BGP New York location: ACI advertises on-premise origin server 10.131.111.161 to XC CE via BGP San Jose location: ACI advertises on-premise origin server 10.131.111.55 to XC CE via BGP An origin server 10.131.111.88 is located in AWS An origin server 10.131.111.88 is located in Azure *Note: Click here to review on how to deploy XC CE in ACI using layer three attached with BGP. XC HTTP Load Balancer On the XC console, go to “Multi-Cloud App Connect” -> “Manage” -> “Load Balancers” -> “HTTP Load Balancers” to “Add HTTP Load Balancer”. In our example, we created a HTTPS load balancer named global with domain name global.f5-demo.com. Instead of bringing our own certificate, we took advantage of the automatic TLS certificate generation and renewal supported by XC: Go to “Origins” section to specify the origin servers for the global application. In our example, we included all origin servers across the public clouds and ACI sites for our global application global.f5-demo.com: Next, go to “Other Settings” -> “VIP Advertisement”. Here, select either “Internet” or “Internet (Specified VIP)” to advertise the HTTP Load Balancer to the Internet. In our example, we selected “Internet” to advertise global.f5-demo.com globally because we decided not to manage nor to acquire a public IP: In our first use case, we defined a set of DNS load balancing rules on the XC DNS Load Balancer to direct the application traffic based on our requirement: If the request to global.f5-demo.com comes from United States or United Kingdom, application traffic should be directed to an origin server that is located on-premise in New York ACI site or in AWS. If the request to global.f5-demo.com comes from United States or United Kingdom and if the origin servers in New York ACI site and AWS become unavailable, application traffic should be re-directed to an origin server that is located on-premise in San Jose ACI site or in Azure. If the request to global.f5-demo.com comes from somewhere outside of United States or United Kingdom, application traffic should be directed to an origin server that is located on-premise in San Jose ACI site or in Azure. We can accomplish the same with XC HTTP Load Balancer by configuring Origin Server Subset Rules. XC HTTP Load Balancer Origin Server Subset Rules allow users to create match conditions on incoming source traffic to the XC HTTP Load Balancer and direct the matched traffic to the desired origin server(s). The match condition can be based on country, ASN, regional edge (RE), IP address, or client label selector. As a prerequisite, we create and assign a label (key-value pair) to an origin server so that we can specify where to direct the matched traffic to in reference to the label in Origin Server Subset Rules. Go to “Shared Configuration” -> “Manage” -> “Labels” -> “Known Keys” and “Add Know Key” to create labels. In our example, we created a key named jy-key with two labels: us-uk and other : Now, go to "Origin pool" under “Multi-Cloud App Connect” and apply the labels to the origin servers: In our example, origin servers in New York ACI site and AWS are labeled us-uk while origin servers in San Jose ACI site and Azure are labeled other : Then, go to “Other Settings” to enable subset load balancing. In our example, jy-key is our origin server subsets class, and we configured to use default subset original pool labeled other as our fallback policy choice based on our requirement that is if the origin servers in New York ACI site and AWS become unavailable, traffic should be directed to an origin server in San Jose ACI site or Azure: Next, on the HTTP Load Balancer, configure the Origin Server Subset Rules by enabling “Show Advanced Fields” in the "Origins" section: In our example, we created following Origin Server Subset Rules based on our requirement: us-uk-rule: If the request to global.f5-demo.com comes from United States or United Kingdom, direct the application traffic to an origin server labeled us-uk that is either in New York ACI site or AWS. other-rule: If the request to global.f5-demo.com does not come from United States or United Kingdom, direct the application traffic to an origin server labeled other that is either in San Jose ACI site or Azure. Validation As a reminder, we use XC automatic TLS certificate generation and renewal feature for our HTTPS load balancer in our example. First, let's confirm the certificate status: We can see the certificate is valid with an auto renew date. Now, let’s run some tests and see what happens. First, let’s try to access global.f5-demo.com from United Kingdom: We can see the traffic is directed to an origin server located in New York ACI site or AWS as expected. Next, let's see what happens if the origin servers from both of these sites become unavailable: The traffic is re-directed to an origin server located in San Jose ACI site or Azure as expected. Last, let’s try to access global.f5-demo.com from somewhere outside of United States or United Kingdom: The traffic is directed to an origin server located in San Jose ACI site or Azure as expected. To check the requests on the XC Console, go to "Multi-Cloud App Connect" -> “Performance” -> "Requests" from the selected HTTP Load Balancer. Below is a screenshot from our example and we can see the request to global.f5-demo.com came from Australia was directed to the origin server 10.131.111.55 located in San Jose ACI site based on the configured Origin Server Subset Rules other-rule: Here is another example that the request came from United States was sent to the origin server 10.131.111.88 located in AWS based on the configured Origin Server Subset Rules us-uk-rule: Summary F5 XC simplify cloud-based DNS management with global server load balancing (GSLB) and disaster recovery (DR). By deploying F5 XC in Cisco ACI, we can securely deploy and load balance our global applications across ACI sites (and public clouds) efficiently while maintaining high application performance with high availability and robustness among global applications at all times. Related Resources *On-Demand Webinar* Deploying F5 Distributed Cloud Services in Cisco ACI Deploying F5 Distributed Cloud (XC) Services in Cisco ACI - Layer Three Attached Deployment Deploying F5 Distributed Cloud (XC) Services in Cisco ACI - Layer Two Attached Deployment
A Simple One-way Generic MRF Implementation to load balance syslog message
The BIG-IP Generic Message Protocol implements a protocol filter compatible with MRF (Message Routing Framework). MRF is designed to implement the most complex use cases, but it can be daunting if you need to create a simple configuration. This article provides a simple baseline to understand the relationships of the MRF components and how they can be combined for a simple one way implementation . A production implementation will in most case be more complex. The following virtual, profiles and iRules load balances a one way stream of new line delimited messages (in this case syslog) to a pool of message consumers. The messages will be parsed and distributed with a simple MLB protocol. Return traffic will not be returned to the client with this configuration. To implement this we will need these configuration objects: Virtual Server - Accepts incoming traffic and configure the Generic Protocol Generic Protocol - Defines message parsing. Generic Router - Configures message routing and point to the Generic Route Generic Route - Points to a Generic Peer Generic Peer - Defines an LTM pool members and points to the Generic Transport Config Generic Transport Config - Defines the server side protocol and server side irule iRule - Defines the message peers (Connections in the message streams) In this case we have a single client that is sending messages to a virtual server that will then be distributed to 3 pool members. Each message will be sent to one pool member only. This can only be configured from the CLI and the official F5 recommendation is to not make any changes in the web GUI to the virtual server. This was tested with BIG-IP 12.1.3.5 and 14.1.2.6. Here is the virtual with a tcp profile and required protocol and routing profiles along with an iRule to setup the connection peer on the client side. ltm virtual /Common/mrftest_simple { destination /Common/10.10.20.201:515 ip-protocol tcp mask 255.255.255.255 profiles { /Common/simple_syslog_protocol { } /Common/simple_syslog_router { } /Common/tcp { } } rules { /Common/mrf_simple } source 0.0.0.0/0 source-address-translation { type automap } translate-address enabled translate-port enabled } The first profile is the protocol. The only difference between the default protocol (genericmsg) is the field no-response must be configured to yes if this is a one way stream. Otherwise the server side will allocate buffers for return traffic that will cause severe free memory depletion. ltm message-routing generic protocol simple_syslog_protocol { app-service none defaults-from genericmsg description none disable-parser no max-egress-buffer 32768 max-message-size 32768 message-terminator %0a no-response yes } The Generic Router profile points to a generic route ltm message-routing generic router simple_syslog_router { app-service none defaults-from messagerouter description none ignore-client-port no max-pending-bytes 23768 max-pending-messages 64 mirror disabled mirrored-message-sweeper-interval 1000 routes { simple_syslog_route } traffic-group traffic-group-1 use-local-connection yes } The Generic Route points to the Generic Peer: ltm message-routing generic route simple_syslog_route { peers { simple_syslog_peer } } The Generic Peer configures the server pool and points to the Generic Transport Config. Note the pool is configured here instead of the more common configuration in the virtual server. ltm message-routing generic peer simple_syslog_peer { pool mrfpool transport-config simple_syslog_tcp_tc } The Generic Transport Config also has the Generic Protocol configured along with the iRule to setup the server side peers. ltm message-routing generic transport-config simple_syslog_tcp_tc { ip-protocol tcp profiles { simple_syslog_protocol { } tcp { } } rules { mrf_simple } } An iRule must be configured on both the Virtual Server and Generic Transport Config. This iRule must be linked as a profile in both the virtual server and generic transport configuration. ltm rule /Common/mrf_simple { when CLIENT_ACCEPTED { GENERICMESSAGE::peer name "[IP::local_addr]:[TCP::local_port]_[IP::remote_addr]:[TCP::remote_port]" } when SERVER_CONNECTED { GENERICMESSAGE::peer name "[IP::local_addr]:[TCP::local_port]_[IP::remote_addr]:[TCP::remote_port]" } } This example is from a user case where a single syslog client was load balanced to multiple syslog server pool members. Messages are parsed with the newline (0x0a) character as configured in the generic protocol, but this can easily be adapted to other message types.Post-Quantum Cryptography: Building Resilience Against Tomorrow’s Threats
Modern cryptographic systems such as RSA, ECC (Elliptic Curve Cryptography), and DH (Diffie-Hellman) rely heavily on the mathematical difficulty of certain problems, like factoring large integers or computing discrete logarithms. However, with the rise of quantum computing, algorithms like Shor's and Grover's threaten to break these systems, rendering them insecure. Quantum computers are not yet at the scale required to break these encryption methods in practice, but their rapid development has pushed the cryptographic community to act now. This is where Post-Quantum Cryptography (PQC) comes in — a new wave of algorithms designed to remain secure against both classical and quantum attacks. Figure 1: Cryptography evolution Why PQC Matters Quantum computers exploit quantum mechanics principles like superposition and entanglement to perform calculations that would take classical computers millennia2. This threatens: Public-key cryptography: Algorithms like RSA rely on factoring large primes or solving discrete logarithms-problems quantum computers could crack using Shor’s algorithm. Long-term data security: Attackers may already be harvesting encrypted data to decrypt later ("harvest now, decrypt later") once quantum computers mature. How PQC Works The National Institute of Standards and Technology (NIST) has led a multi-year standardization effort. Here are the main algorithm families and notable examples. Lattice-Based Cryptography. Lattice problems are believed to be hard for quantum computers. Most of the leading candidates come from this category. CRYSTALS-Kyber (Key Encapsulation Mechanism) CRYSTALS-Dilithium (Digital Signatures) Uses complex geometric structures (lattices) where finding the shortest vector is computationally hard, even for quantum computers Example: ML-KEM (formerly Kyber) establishes encryption keys using lattices but requires more data transfer (2,272 bytes vs. 64 bytes for elliptic curves) The below figure shows an illustration of how Lattice-based cryptography works. Imagine solving a maze with two maps-one public (twisted paths) and one private (shortest route). Only the private map holder can navigate efficiently Code-Based Cryptography Based on the difficulty of decoding random linear codes. Classic McEliece: Resistant to quantum attacks for decades. Pros: Very well-studied and conservative. Cons: Very large public key sizes. Relies on error-correcting codes. The Classic McEliece scheme hides messages by adding intentional errors only the recipient can fix. How it works: Key generation: Create a parity-check matrix (public key) and a secret decoder (private key). Encryption: Encode a message with random errors. Decryption: Use the private key to correct errors and recover the message Figure3: Code-Based Cryptography Illustration Multivariate & Hash-Based Quadratic Equations Multivariate These are based on solving systems of multivariate quadratic equations over finite fields and relies on solving systems of multivariate equations, a problem believed to be quantum-resistant. Hash-Based Use hash functions to construct secure digital signatures. SPHINCS+: Stateless and hash-based, good for long-term digital signature security. Challenges and Adoption Integration: PQC must work within existing TLS, VPN, and hardware stacks. Key sizes: PQC algorithms often require larger keys. For example, Classic McEliece public keys can exceed 1MB. Hybrid Schemes: Combining classical and post-quantum methods for gradual adoption. Performance: Lattice-based methods are fast but increase bandwidth usage. Standardization: NIST has finalized three PQC standards (e.g., ML-KEM) and is testing others. Organizations must start migrating now, as transitions can take decades. Adopting PQC with BIG-IP As of F5 BIG-IP 17.5, the BIG-IP now supports the widely implemented MLKEM cipher group for client-side TLS negotiations as well as Server side TLS negotiation. Other cipher groups and capabilities will become available in subsequent releases. Cipher walkthrough Let's take the supported cipher in v17.5.0 (Hybrid X25519_Kyber768) as an example and walk through it. X25519: A classical elliptic-curve Diffie-Hellman (ECDH) algorithm Kyber768: A post-quantum Key Encapsulation Mechanism (KEM) The goal is to securely establish a shared secret key between the two parties using both classical and quantum-resistant cryptography. Key Exchange X25519 Exchange: Alice and Bob exchange X25519 public keys. Each computes a shared secret using their own private key + the other’s public key: Kyber768 Exchange: Alice uses Bob’s Kyber768 public key to encapsulate a secret: Produces a ciphertext and a shared secret Bob uses his Kyber768 private key to decapsulate the ciphertext and recover the same shared secret: Both parties now have: A classical shared secret A post-quantum shared secret They combine them using a KDF (Key Derivation Function): Why the hybrid approach is being followed: If quantum computers are not practical yet, X25519 provides strong classical security. If a quantum computer arrives, Kyber768 keeps communications secure. Helps organizations migrate gradually from classical to post-quantum systems. Implementation guide F5 introduced new enhancements in 17.5.1 New Features in BIG-IP Version 17.5.1 BIG-IP now supports the X25519MLKEM768 hybrid key exchange in TLS 1.3 on the client side and server side. This mechanism combines the widely used X25519 elliptic curve key exchange with MLKEM768 They provide enhanced protection by ensuring the confidentiality of communications even in future quantum threats. This enhancement strengthens the application’s cryptographic flexibility and positions it for secure communication in classical and post-quantum environments. This change does not affect existing configurations but provides an additional option for enhanced security where supported. Implementation KB provided by F5 K000149577: Enabling Post-Quantum Cryptography in F5 BIG-IP TMOS NGINX Support for PQC We are pleased to announce support for Post Quantum Cryptography (PQC) starting NGINX Plus R33. NGINX provides PQC support using the Open Quantum Safe provider library for OpenSSL 3.x (oqs-provider). This library is available from the Open Quantum Safe (OQS) project. The oqs-provider library adds support for all post-quantum algorithms supported by the OQS project into network protocols like TLS in OpenSSL-3 reliant applications. All ciphers/algorithms provided by oqs-provider are supported by NGINX. To configure NGINX with PQC support using oqs-provider, follow these steps: Install the necessary dependencies sudo apt update sudo apt install -y build-essential git cmake ninja-build libssl-dev pkg-config Download and install liboqs git clone --branch main https://github.com/open-quantum-safe/liboqs.git cd liboqs mkdir build && cd build cmake -GNinja -DCMAKE_INSTALL_PREFIX=/usr/local -DOQS_DIST_BUILD=ON .. ninja sudo ninja install Download and install oqs-provider git clone --branch main https://github.com/open-quantum-safe/oqs-provider.git cd oqs-provider mkdir build && cd build cmake -DCMAKE_BUILD_TYPE=Release -DCMAKE_INSTALL_PREFIX=/usr/local -DOPENSSL_ROOT_DIR=/usr/local/ssl .. make -j$(nproc) sudo make install Download and install OpenSSL with oqs-provider support git clone https://github.com/openssl/openssl.git cd openssl ./Configure --prefix=/usr/local/ssl --openssldir=/usr/local/ssl linux-x86_64 make -j$(nproc) sudo make install_sw Configure OpenSSL for oqs-provider /usr/local/ssl/openssl.cnf: openssl_conf = openssl_init [openssl_init] providers = provider_sect [provider_sect] default = default_sect oqsprovider = oqsprovider_sect [default_sect] activate = 1 [oqsprovider_sect] activate = 1 Generate post quantum certificates export OPENSSL_CONF=/usr/local/ssl/openssl.cnf # Generate CA key and certificate /usr/local/ssl/bin/openssl req -x509 -new -newkey dilithium3 -keyout ca.key -out ca.crt -nodes -subj "/CN=Post-Quantum CA" -days 365 # Generate server key and certificate signing request (CSR) /usr/local/ssl/bin/openssl req -new -newkey dilithium3 -keyout server.key -out server.csr -nodes -subj "/CN=your.domain.com" # Sign the server certificate with the CA /usr/local/ssl/bin/openssl x509 -req -in server.csr -out server.crt -CA ca.crt -CAkey ca.key -CAcreateserial -days 365 Download and install NGINX Plus Configure NGINX to use the post quantum certificates server { listen 0.0.0.0:443 ssl; ssl_certificate /path/to/server.crt; ssl_certificate_key /path/to/server.key; ssl_protocols TLSv1.3; ssl_ecdh_curve kyber768; location / { return 200 "$ssl_curve $ssl_curves"; } } Conclusion By adopting PQC, we can future-proof encryption against quantum threats while balancing security and practicality. While technical hurdles remain, collaborative efforts between researchers, engineers, and policymakers are accelerating the transition. Related Content K000149577: Enabling Post-Quantum Cryptography in F5 BIG-IP TMOS F5 NGINX Plus R33 Release Now Available | DevCentral New Features in BIG-IP Version 17.5.1 The State of Post-Quantum Cryptography (PQC) on the Web
Secure Extranet with Equinix Fabric and F5 Distributed Cloud
Why: The Challenge of Building a Secure Extranet Establishing a secure extranet that spans multiple clouds, partners, and enterprise locations is inherently complex. Organizations face several persistent challenges: Technology Fragmentation: Different clouds, vendors, and networking stacks introduce inconsistency and integration friction. Endpoint Proliferation: Each new partner or cloud region adds more endpoints to secure and manage. Configuration Drift: Manual or siloed configurations across environments increase the risk of misalignment and security gaps. Security Exposure: Without centralized control, enforcing consistent policies across environments is difficult, increasing the attack surface. Operational Overhead: Managing disparate systems and connections strains NetOps, DevOps, and SecOps teams. These challenges make it difficult to scale securely and efficiently, especially when onboarding new partners or deploying applications globally. What: A Unified, Secure, and Scalable Extranet Solution The joint solution from F5 and Equinix addresses these challenges by combining: F5® Distributed Cloud Customer Edge (CE): A virtualized network and security node deployed via Equinix Network Edge. Equinix Fabric®: A software-defined interconnection platform that provides private, high-performance connectivity between clouds, partners, and enterprise locations. Together, they create a strategic point of control at the edge of your enterprise network. This enables secure, scalable, and policy-driven connectivity across hybrid and multi-cloud environments. This solution: Simplifies deployment by eliminating physical infrastructure dependencies. Centralizes policy enforcement across all connected environments. Accelerates partner onboarding with pre-integrated, software-defined connectors. Reduces risk by isolating traffic and enforcing consistent security policies. How: Architectural Overview At the heart of the architecture is the F5 Distributed Cloud CE, deployed as a virtual network function (VNF) on Equinix Network Edge. This CE: Acts as a gateway node for each location (cloud, data center, or partner site). Connects to other CEs via F5’s global private backbone, forming a secure service mesh. Integrates with F5 Distributed Cloud Console for centralized orchestration, visibility, and policy management. The CE node(s) are interconnected to partners, vendors, etc. using Equinix Fabric, which provides: Private, low-latency interconnects to major cloud providers (AWS, Azure, GCP, OCI). Software-defined routing via Fabric Cloud Router. Tier-1 internet access for hybrid workloads. This architecture enables a hub-and-spoke or full-mesh extranet topology, depending on business needs. Key Tenets of the Solution Strategic Point of Control The CE becomes the enforcement point for traffic inspection, segmentation, and policy enforcement—across all clouds and partners. Unified Management F5 Distributed Cloud Console provides a single pane of glass for managing networking, security, and application delivery policies. Zero-Trust Connectivity Built-in support for mutual TLS, IPsec, and SSL tunnels ensures encrypted, authenticated communication between nodes. Rapid Partner Onboarding Equinix’s Fabric and F5 CE connectors allow new partners to be onboarded in minutes, not weeks. Operational Efficiency Automation hooks (GitOps, Terraform, APIs) reduce manual effort and configuration drift. Private interconnects and regional CE deployments help meet regulatory requirements. Additional Links F5 and Equinix Partnership The Business Partner Exchange - An F5 Distributed Cloud Services Demonstration Equinix Fabric Overview Additional Equinix and F5 partner informationS3 Traffic Optimization with F5 BIG-IP & NetApp StorageGRID

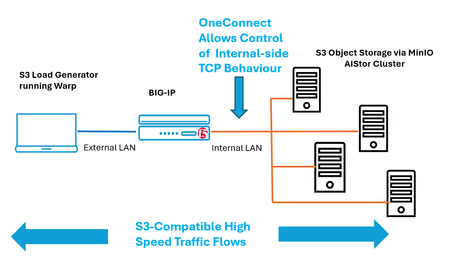

The S3 protocol is seeing tremendous growth, often in projects involving AI where storage is a critical component, ranging from model training to inference with RAG. Model training projects usually need large, readily available datasets to keep GPUs operating efficiently. Additionally, storing sizable checkpoints—detailed snapshots of the model—is essential for these tasks. These are vital for resuming training after interruptions that could otherwise imperil weeks or months-long projects. Regardless of the AI ecosystem, S3 increasingly comes into play in some manner. For example, it is common for one tier of the storage involved, perhaps an outer tier, to be tasked with network loads to accrue knowledge sources. This data acquisition role is normally achieved today using S3 protocol transactions. Why does a F5 BIG-IP, an industry-leading ADC solution, work so well for optimizing S3 flows that are directed at a S3 storage solution such as StorageGRID? An interesting aspect of S3 is just how easily extensible it is, to a degree other protocols may not be. Take for example, routing protocols, like OSPF or BGP-4; that are governed by RFC’s controlled and published by the IETF (Internet Engineering Task Force). Unwavering compliance to RFC specifications is often non-negotiable with customers. Similarly, storage protocols are often governed by SNIA (Storage Networking Industry Association) and extensibility may not have been top of mind when standards were initially released. S3, as opposed to these examples, is proactively steered by Amazon. In fact, S3 (Simple Storage Service) was one of the earliest AWS services, launched in 2006. When referring to “S3” today, many times, the reference is normally to the set of S3 API commands that the industry has adopted in general, not specifically the storage service of AWS. Amazon’s documentation for S3, the starting point is found here, is easily digested, not clinical sets of clauses and archaic “must” or “should” directives. An entire category of user defined metadata is made available, and encourages unbounded extensibility: “User-defined metadata is metadata that you can choose to set at the time that you upload an object. This user-defined metadata is a set of name-value pairs” Why S3’s Flexibility Amplifies the Possibilities of BIG-IP and StorageGRID The extensibility baked into S3 is tailor made for the sophisticated and unique capabilities of BIG-IP. Specifically, BIG-IP ships with what has become an industry standard in Data Plane programmability: F5 iRules. For years, iRules have let IT administrators define specific, real-time actions based on the content and characteristics of network traffic. This enables them to do advanced tasks like content steering, protocol manipulation, customized persistence rules, and security policy enforcement. StorageGRID from NetApp allows a site of clustered storage nodes to use S3 protocol to both ingest content and deliver requested objects. Automatic backend synchronization allows any node to be offered up as a target by a server load balancer like BIG-IP. This allows overall storage node utilization to be optimized across the node set and scaled performance to reach the highest S3 API bandwidth levels, all while offering high availability to S3 API consumers. Should any node go off-line, or be taken out of service for maintenance, laser precise health checks from BIG-IP will remove that node from the pool used by F5, and customer S3 traffic will flow unimpeded. A previous article available here dove into the setup details and value delivered out of the box by BIG-IP for S3 clusters, such as NetApp StorageGRID. Sample BIG-IP and StorageGRID Configuration – S3 Storage QoS Steering One potential use case for BIG-IP is to expedite S3 writes such that the initial transaction is directed to the best storage node. Consider a workload that requires perhaps the latest in SSD technology, reflected by the lowest latency and highest IOPS. This will drive the S3 write (or read) towards the fastest S3 transactional completion time possible. A user can add this nuance, the need for this differentiated service level, easily as S3 metadata. The BIG-IP will make this custom field actionable, directing traffic to the backend storage node type required. As per normal StorageGRID behavior, any node can handle subsequent reads due to backend synchronization that occurs post-S3 write. Here is a sample scenario where storage nodes have been grouped into QoS levels, gold, silver and bronze to reflect the performance of the media in use. To demonstrate this use case, a lab environment was configured with three pools. This simulated a production solution where each pool could have differing hardware vintages and performance characteristics. To understand the use of S3 metadata fields, one may look at a simple packet trace of a S3 download (GET) directed towards an StorageGRID solution. Out of the box, a few header fields will indicate that the traffic is S3. By disabling TLS, a packet analyzer on the client, Wireshark, can display the User-Agent field value as highlighted above. Often S3 traffic will originate with specific S3 graphical utilities like S3 Browser, Cyberduck, or FileZilla. The indicator of S3 is also found with the presence of common HTTP X-headers, in the example we observe x-amz-content-sha256, and x-amz-date highlighted. The guidance for adding one’s own headers is to preface the new headers with “x-amz-meta-“. In this exercise, we have chosen to include the header “x-amz-meta-object-storage-qos” as a header and have BIG-IP search out the values gold, silver, and bronze to select the appropriate storage node pool. Traffic without this header, including S3 control plane actions, will see traffic proxied by default to the bronze pool. To exercise the lab setup, we will use the “s3cmd”, a free command-line utility available for Linux and macOS, with about 60 command line options; s3cmd easily allows for header inclusions. Here is our example, which will move a 1-megabyte file using S3 into a StorageGRID hosted bucket on the “Silver” pool: s3cmd put large1megabytefile.txt s3://mybucket001/large1megabytefile.txt --host=10.150.92.75:443 --no-check-certificate --add-header="x-amz-meta-object-storage-qos:silver" BIG-IP Setup and Validation of QoS Steering The setup of a virtual server on BIG-IP is straightforward in our case. S3 traffic will be accepted on TCP port 443 of the server address, 10.150.92.75, and independent TLS sessions will face both the client and the backend storage nodes. As seen in the following BIG-IP screenshot, three pools have been defined. An iRule can be written from scratch or, alternatively, can easily be created using AI. The F5 AI Assistant, a chat interface found within the Distributed Cloud console, is extensively trained on iRules. It was used to create the following (double-click image to enlarge). Upon issuing the client’s s3cmd command to upload the 1-megabyte file with “silver” QoS requirement, we immediately observe the following traffic to the pools, having just zeroed all counters. Converting the proxied 8.4 million bits to megabytes confirms that the 1,024 KB file indeed was sent to the correct pool. Other S3 control plane interactions make up the small amount of traffic proxied to the bronze, spinning disks pool. BIG-IP and XML Tag Monitoring for Security Purposes Beyond HTTP header metadata, S3 user consoles can be harnessed to apply content tags to StorageGRID buckets and objects within buckets. In the following simple example, a bucket “bucketaugust002” has been tied to various XML user-defined tags, such as “corporate-viewer-permissions-level: restricted”. When a S3 client lists objects within a bucket tagged as restricted, it may be prudent to log this access. One approach would be iRules, but it’s not the optimal path, as the entirety of the HTTP response payload would need to be scoured for bucket listings. iRules could then apply REGEX scanning for “restricted”, as one simple example. A better approach is to use the Data Guard feature of the BIG-IP Advanced WAF module. Data Guard is built into the TMM (Traffic Management Microkernel) of BIG-IP at great optimization, whereas the TCL engine of iRules is not. Thus, iRules is fine when the exact offset of a pattern in known, and really good with request and response header manipulation, but for launching scans throughout payloads Data Guard is even better. Within AWAF, one need simply build a policy and under the “Advanced” option put in Data Guard strings of interest in a REGEX format, in our example (?:^|\W)restricted(?:$|\W), as seen below, double-click to see image in sharper detail. Although the screenshot indicates “blocking” is the enforcement mode, in our use case, alerting was only sought. As a S3Browser user explores the contents of a bucket flagged as “restricted” the following log is seen by an authorized BIG-IP administrator (double-click). Other use cases for Data Guard and S3 would include scanning of textual data objects being retrieved, specifically for the presence of fields that might be classified as PII, such as credit card numbers, US social security numbers, or any other custom value an organization is interested in. A multitude of online resources provide REGEX expressions matching the presence of any of a variety of potentially sensitive information mandated through international standards. Occurrences within retrieved data, such as data formats matching drivers’ licenses, national health care values, and passport IDs are all quickly keyed in on. The ability of Data Guard to obfuscate sensitive information, beyond blocking or alerting, is a core reason to use BIG-IP in line with your data. BIG-IP Advanced Traffic Management - Preserve Customer Performance The BIG-IP offers a myriad of safeguards and enforcement options around the issue of high-rate traffic management. The risks today include any one traffic source maliciously or inadvertently overwhelming the StorageGRID cluster with unreasonable loads. The possible protections are simply touched upon in this section, starting with some simple features, enabled per virtual server, with a few clicks. A BIG-IP deployment can be as simple as one virtual server directing all traffic to a backend cluster of StorageGRID nodes. However, just as easily, it could be another extreme: a virtual server entry reserved for one company, one department, even one specific high value client machine. In the above screenshot, one sees a few options. A virtual server may have a cap set on how many connections are permitted, normally TCP port 443-based for S3. This is a primitive but effective safeguard against denial-of-service attacks that attempt to overwhelm with bulk connection loads. As seen, an eviction policy can be enabled that closes connections that exhibit negative characteristics, like clients who become unresponsive. Lastly, it is seen that connection rate safeguards are also available and can be applied to consider source IP addresses. This can counteract singular, rogue clients in larger deployments. Another set of advanced features serve to protect the StorageGRID infrastructure in terms of clamping down on the total traffic that the BIG-IP will forward to a cluster. These features are interesting as many can apply not just at the per virtual server level, but some controls can be applied to the entirety of traffic being sent on particular VLANs or network interfaces that might interconnect to backend pools. BIG-IP’s advanced features include the aptly named Bandwidth Controllers, and are made up of two varieties: static and dynamic. Static is likely the correct choice for limiting the total bandwidth a given virtual server can direct at the backend pool of Storage Nodes. The setup is trivial, just visit the “Acceleration” tab of BIG-IP and create a static bandwidth controller of the magnitude desired. At this point, nothing further is required beyond simply choosing the policy from the virtual server advanced configuration screen. For even more agile behavior, one might choose to use a dynamic bandwidth controller. As seen below, the options now extend into individual user traffic-level metering. With ancillary BIG-IP modules like Access Policy Manager (APM) traffic can be tied back to individual authenticated users by integration with common Identity Providers (IdP) solutions like Microsoft Active Directory (AD) servers or using the SSO framework standard SAML 2.0, others exist as well. However, with LTM by itself, we can consider users as sessions consisting of source IP and source (ephemeral) TCP port pairs and can apply dynamic bandwidth controls upon this definition of a user. The following provides an example of the degree to which traffic management can be imposed by BIG-IP with dynamic controllers, including per user bandwidth. The resulting dynamic bandwidth solution can be tied to any virtual server with the following few lines of a simple iRule: when CLIENT_ACCEPTED { set mycookie [IP::remote_addr]:[TCP:: remote_port] BWC::policy attach No_user_to_exceed_5Mbps $mycookie} Summary The NetApp StorageGRID multi-node S3 compatible object storage solution fits well with a high-performance server load balancer, thus making the F5 BIG-IP a good fit. There are various features within the BIG-IP toolset that can open up a broad set of StorageGRID’s practical use cases. As documented, the ability exists for a BIG-IP iRule to isolate in upon any HTTP-level S3 header, including customized user meta-data fields. This S3 metadata now becomes actionable – the resulting options are bounded only by what can be imagined. One potential option, selecting a specific pool of Storage Nodes based upon a signaled QoS value was successfully tested. Other use cases include using the advanced WAF capabilities of BIG-IP, such as the Data Guard feature, analyzing real-time response content and alerting upon xml tags or potentially obfuscating or entirely blocking transfers with sensitive data fields. A rich set of traffic safeguards were also discussed, including per virtual server connection limits and advanced bandwidth controls. When combined with optimizations discussed in other articles, such as the OneConnect profile that can drastically suppress the number of concurrent TCP sessions handled by StorageGrid nodes, one quickly sees that the performance and security improvements attainable make the suggested architecture compelling.
