Implementing SSL Orchestrator - High Level Considerations

Introduction This article is the beginning of a multi-part series on implementing BIG-IP SSL Orchestrator. It includes high availability and central management with BIG-IQ. Implementing SSL...
Published Jan 06, 2020
Version 1.0
BIG-IP
deployment
security
series-big-ip-ssl-orchestrator

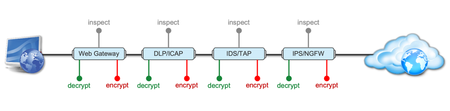

service chain
SSL Orchestrator
topology
KevinGallaugher's avatar
Icon for Employee rankEmployee
Technical Marketing Engineer for SSL Orchestrator. I have over 25 years experience in Cybersecurity, with over 15 years spent as a Technical Marketing Engineer. Prior to F5 I worked at Blue Coat, Gigamon and Fortinet.
View Profile
KevinGallaugher's avatar
Icon for Employee rankEmployee
Technical Marketing Engineer for SSL Orchestrator. I have over 25 years experience in Cybersecurity, with over 15 years spent as a Technical Marketing Engineer. Prior to F5 I worked at Blue Coat, Gigamon and Fortinet.
View Profile
dragonflymr's avatar
dragonflymr
Icon for Cirrostratus rankCirrostratus
Jan 28, 2020

Hi Kevin,

Great series, it's exactly what I was looking for :-) Have some questions (as usual):

  1. The NGFW is connected to the DMZ switching network in such a manner that traffic traverses it when the BIG-IP SSL Orchestrator is configured to push traffic for inspection. - could you elaborate a bit what do you mean by that?
  2. All routing configuration is static routing – no dynamic routing protocols is implemented in this design. - will design/setup change a lot when for example BGP will be used - of course except of adding routers and enabling BGP on BIG-IPs/SSLO
  3. The design allows for the administrator to gradually forward services to the BIG-IP SSL Orchestrator using source-based routing rules. - that is very interesting, any hints how it should be implemented, looking at the network diagram it looks like all traffic has to pass via SSLO - and that requires network reconfiguration. I wonder if you menat SSLO policies that will be catching first only selected traffic (even if all will be passing via SSLO) or maybe policies on external devices that will either direct traffic to SSLO or send it via "old" path?
  4. AutoMap is a secure network address translation (SNAT) described in Knowledge article K7336. AutoMap should not be used where possible in BIG-IP SSL Orchestrator deployments. - I've seen this suggestion but I am not really sure why it's recommended - could you give some examples when it should be used and when not?
  5. note that NGWF is configured with vWire and performs its inspection as a transparent L2 device. - do you mean BIG-IP configured with vWire or device marked as PAN PA3220 (guess Palo Alto NGWF)?

Sorry for so many questions. If you covered those in another parts (not yet able to read them all), just ignore my questions.

Piotr
